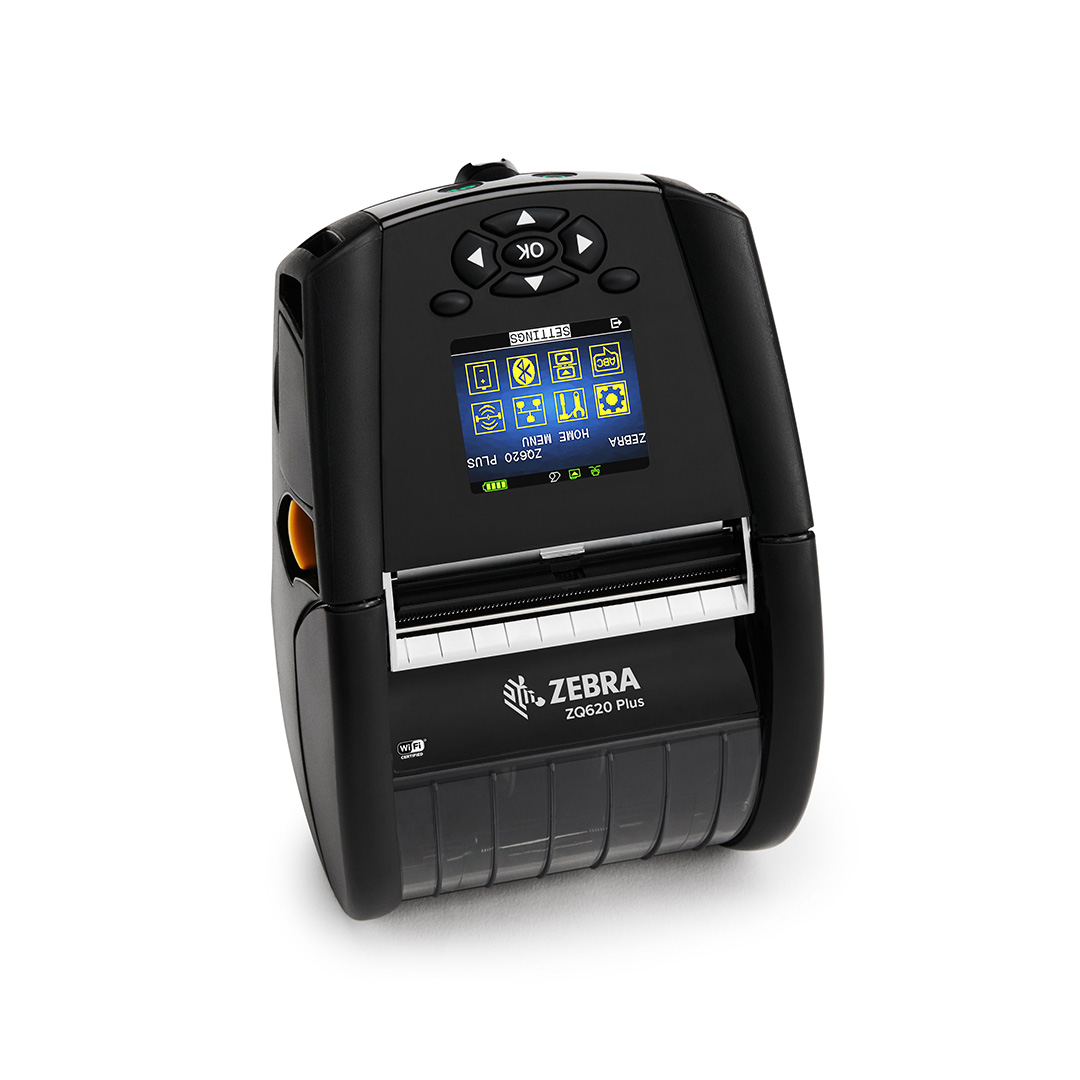

    ZEBRA ZQ620 Plus Printers label and receipt printers

    Manufacturer: ZEBRA
    ZEBRA ZQ620 Plus portable thermal sticker printer Can print barcodes, text and graphics using direct heat. 512 MB Flash downloadable program supported. Receipt formats, fonts, and graphics (128 MB of user storage available) Large, easy-to-read color display (288 x 240 pixels) Withstands multiple drops from 5 feet/1.52 m (ZQ620 Plus and ZQ610 Plus) and 6 ft/1.83 m (ZQ630 Plus) to concrete² IP54 dust and water resistance rating
    SKU: เครื่อง/Set



    Call for pricing
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Product Files
    Specifications
    Standard Features• Apple® iOS, Android™ and Windows® Mobile connectivity
    • Direct thermal printing of barcodes, text and graphics
    • CPCL, EPL™ and ZPL® programming languages
    • 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
    • ZQ620 Plus and ZQ610 Plus: 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery
    ZQ630 Plus: 6600 mAh (nominal) 47.5 Wh removable, rechargeable PowerPrecision + Li-Ion battery
    • Built-in battery charger
    • Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery)
    • Black mark and gap media sensing using fixed center position sensors
    • Easy-to-use peel and present mode
    • Label present sensor for issuing labels one at a time
    • Tear bar for easy media dispensing
    • Center-loading media locking for variable roll widths
    • "Clamshell” design for easy media loading
    • Management: Mirror, SNMP, Web server, Profile Manager, AirWatch®, SOTI® MobiControl™ and Ivanti Avalanche® (powered by Wavelink)
    • Large, easy-to-read color display (288 x 240 pixels)
    • Color display can be customized using WML (text and icons)
    • 5-way navigation buttons, two software defined keys
    • Printer color alerts on the display
    • Tolerance of multiple drops from 5 ft./1.52 m (ZQ620 Plus and ZQ610 Plus) and 6 ft./1.83 m (ZQ630 Plus) to concrete²
    • IP54 dust and water resistance rating
    • 400 MHz 32-bit ARM processor
    • XML support
    • Supports vertical and horizontal printing
    • Printers can be used in any orientation
    • QR barcode links to web-based help pages
    • Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with Near Field Communication (NFC) enabled devices
    • Label odometer
    • NTP (Network Time Protocol) support via Wi-Fi or Ethernet
    • Supports Zebra Network Connect manufacturing plant floor solution when used with the Ethernet cradle
    • RFID is available on the ZQ630 Plus as a separate product (please see the ZQ630 Plus RFID Spec Sheet for more information)

    Physical Characteristics

    Dimensions

    ZQ610 Plus:
    6.73 in. L x 3.6 in. W x 2.85 in. H
    170.9 mm L x 91.4 mm W x 72.4 mm H

    ZQ620 Plus:
    6.84 in. L x 4.64 in. W x 3.03 in. H
    173.7 mm L x 117.9 mm W x 76.9 mm H

    ZQ630 Plus:
    7.35 in. L x 6.5 in. W x 3.25 in. H
    186.7 mm L x 165.1 mm W x 82.5 mm H

    Note: The Extended Capacity Li-Ion smart battery option adds 0.6 in./16 mm to the height of either ZQ600 Plus Series printer.

    Weight with batteryZQ610 Plus: 1.33 lbs/0.6 kg
    ZQ620 Plus: 1.6 lbs/0.73 kg
    ZQ630 Plus: 2.45 lbs/1.1 kg
    Printer Specifications
    Operating SystemLink-OS®
    Resolution203 dpi/8 dots per mm
    Memory256 MB RAM; 512 MB Flash (standard)
    Maximum Print WidthZQ610 Plus: 1.9 in./48 mm
    ZQ620 Plus: 2.8 in./72 mm
    ZQ630 Plus: 4.1 in./104 mm
    Maximum Print SpeedUp to 4.5 in./115 mm per second
    Media SensorsBlack mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time
    Print LengthMinimum: 0.5 in./12.7 mm
    Maximum: 32 in./813 mm
    Power
    ZQ610 Plus and ZQ620 Plus: 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery
    ZQ630 Plus: 6600 mAh (nominal) 47.5 Wh removable PowerPrecision+ Li-Ion battery
    Media Characteristics
    Label
    and Liner Length

    0.5 in./12.7 mm to 32 in./813 mm or continuous
    Media Width
    ZQ610 Plus: 1.0 in./25 mm to 2.18 in./55.4 mm
    ZQ620 Plus: 1.0 in./25 mm to 3.125 in./79 mm
    ZQ630 Plus: 2.0 in./51 mm to 4.4 in./112 mm
    (linered) 2.0 in./51 mm to 4.1 in./104 mm (linerless)
    Maximum Media
    Roll Size

    ZQ610 Plus: 2.2 in./55.9 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core
    ZQ620 Plus: 2.6 in./66 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core
    ZQ630 Plus: 2.6 in./66 mm O.D. on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core
    Thickness
    2.3 mil to 5.5 mil tag stock or 6.5 mil label stock
    Media Types
    Die-cut labels and tags, linerless labels, receipt paper, RFID (ZQ630 Plus RFID compatible), black bar and gap
    Operating Characteristics
    EnvironmentOperating Temp.: -4°F to 122°F/-20°C to 50°C
    Operating Humidity: 10% to 90% non-condensing
    Storage/Transportation Temp.: -13°F to 149°F/-25°C to 65°C1
    Storage Humidity: 10% to 90% non-condensing
    Agency Approvals

    Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B

    Susceptibility: EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5

    Safety: CE, TUV, CSA

    ENERGY STAR® certified

     SecurityFIPS support is available at no cost as a printer OS download. Please contact your Zebra Sales Representative for further information.
     Firmware

    CPCL, EPL and ZPL programming languages

    ZBI 2.x™—powerful programming language that lets printers run standalone applications, connect to peripherals, and much more

     Barcode Symbologies

    Barcode Ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1

    Linear Barcodes: Code 39, Code 93, UCC/EAN128, Code 128, Codabar (NW-7), Interleaved 2-of-5, UPC-A, UPC-E, 2 and 5 digit add-on, EAN-8, EAN-13, 2 and 5 digit add-on

    2D Barcodes: PDF417, MicroPDF417, MaxiCode, QR Code, GS1/DataBar™ (RSS) family, Aztec, MSI/ Plessey, FIM Postnet, Data Matrix, TLC39

     Fonts and Graphics

    Standard Fonts: 25 bitmapped, 1 smooth, scalable (CG Triumvirate Bold Condensed*)
    Optional Fonts: downloadable bitmapped/scalable fonts
    International Character Sets (optional): Chinese (traditional/simplified); Japanese; Korean; Thai, Vietnamese

    *Contains UFST® from Agfa Monotype Corporation

     Communication and Interface Capabilities

    ZebraNet® Wi-Fi 6 (802.11ax) dual radio with support for:
    • Simultaneous Bluetooth 5.3 with BT SIG Certification
    • MIMO antenna design
    • Operation on both the 2.4 GHz and 5 GHz frequency bands
    • WPA3, WPA2, WPA
    • 802.11k, 802.11v and 802.11r roaming standards
    • TKIP and AES encryption
    • 802.1x (with WPA or WPA2)
    • EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
    • 8802.11d and 802.11i
    • Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), EAP Fast Session resumption or 802.11r

    ZebraNet Wi-Fi 5 (802.11ac) dual radio with support for:
    • Simultaneous Bluetooth 4.2
    • TKIP and AES encryption
    • WPA and WPA2
    • 802.1x (with WPA or WPA2)
    • EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
    • 802.11d and 802.11i
    • Wi-Fi Certification
    • Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), EAP Fast Session resumption or 802.11r

    Bluetooth 4.2 (Classic and BLE) radio
    •
    Security modes 1–4

    • “Made for iPod/iPhone/iPad” certified
    • Key Bonding

    10/100 Ethernet support (via charging cradle)

    Cabled Communications Specifications
    •
    USB 2.0 full-speed interface (12 Mbps)

    • Mini-B connector with optional strain relief
    • Serial interface: 14-pin RS-232C port for communication to terminal or other host up to 115.2 Kbps

     Print DNA SoftwareDurable printers are essential, but it’s the software inside that will keep them in action. That’s why we built Zebra Print DNA into our printers. It’s a suite of software capabilities that give you the ability to optimize printer performance over their entire lifecycle even as your business needs evolve.  For more information, please visit
    www.zebra.com/printdna
     Product WarrantyThe ZQ600 Plus Series printers are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For the complete warranty statement, please visit:
    www.zebra.com/warranty
    Recommended Services
    Zebra OneCare Essential and Select Services maximize the availability and productivity of your devices. Key features include 24/7 technical support, comprehensive coverage, advance replacement and software updates. Optional Visibility Services are available. For more information go to
    www.zebra.com/zebraonecare
    (Note: Service availability may vary by region.)
    Footnotes
    1. Only available on the ZQ630 Plus
    Features are subject to availability. Specifications are subject to change without notice.
