| Physical Characteristics |

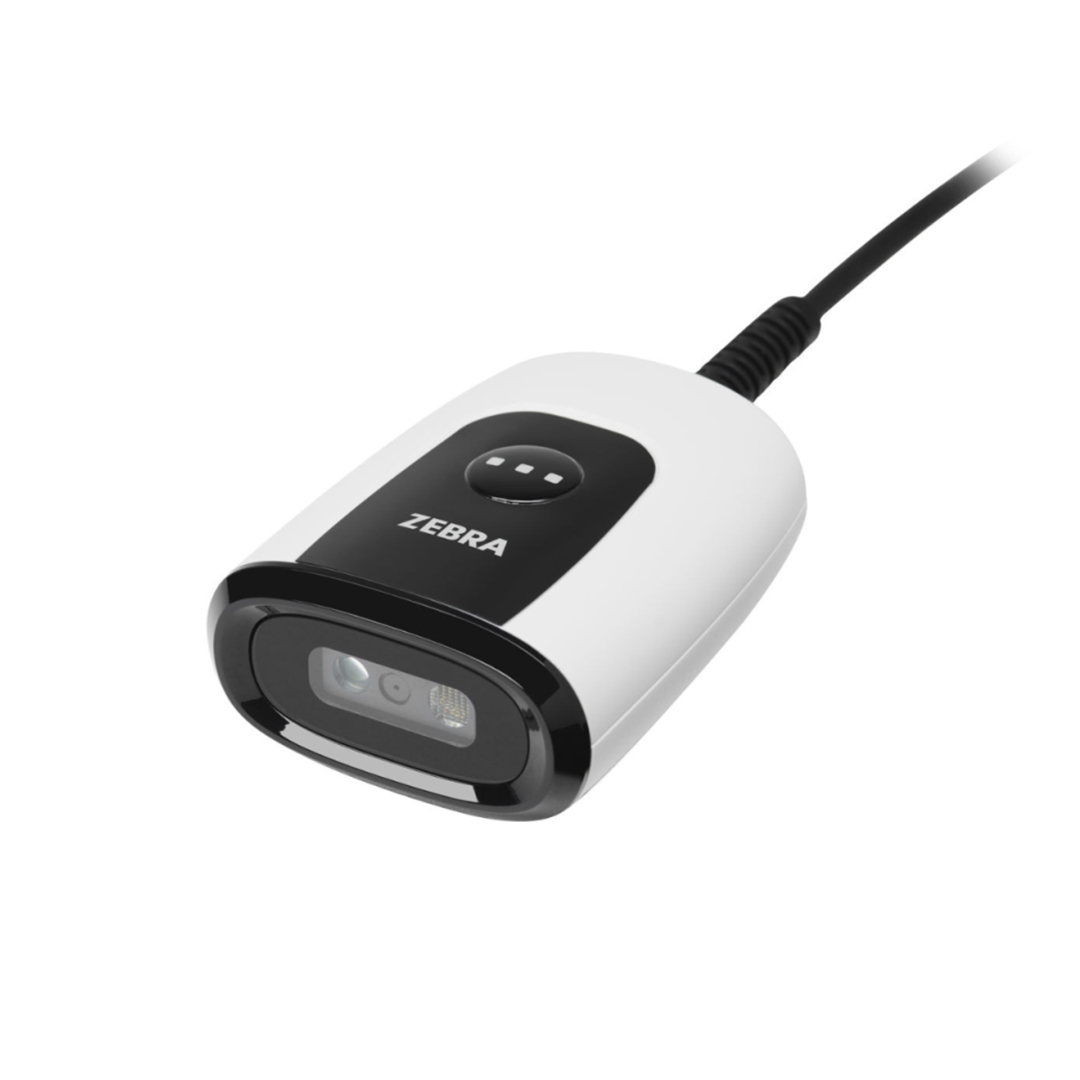

ZEBRA DS5502 |
| Dimensions |
1.2 in H x 2.2 in W x 2.8 in D
(3.0cm H x 5.6cm W x 7.2cm D) |
| Weight |
2.3 oz (65.2g) |
| Input Voltage Range |
4.75 to 5.25 VDC Host Powered; 4.75 to 5.25 VDC External Power Supply |
| Operating Current at Nominal Voltage (average) |
Presentation Mode: 360 mA RMS (Typical), Trigger Mode: 350 mA RMS (Typical) |
| Standby Current (Idle) at Nominal Voltage (average) |
Presentation Mode: 185 mA RMS (Typical), Trigger Mode: 155 mA RMS (Typical) |
| Color |
Alpine White, Midnight Black |
| Supported Host Interfaces |
USB, RS232 |
| USB Certification |
USB Certification |
| User Indicators |
Good Decode LEDs, Speaker (adjustable tone and volume) |
| Performance Characteristics |
|
| Swipe Speed (Hands-Free) |
Up to 100 in (254cm) per second for 13 mil UPC in optimized mode |
| Image Sensor |
1280 x 800 pixels |
| Aiming Pattern |
Circular 525 nm True Green LED |
| Illumination |
(1) Warm White LED |
| Imager Field of View |
48° H x 30° V nominal |
| Minimum Print Contrast |
15% minimum reflective difference |
| Skew Tolerance |
+/- 60° |
| Pitch Tolerance |
+/- 60° |
| Roll Tolerance |
0°-360° |
| Imaging Characteristics |
|
| Graphics Format |
Images can be exported as Bitmap, JPEG or TIFF |
| Image Quality |
200 PPI on a 6.0 x 3.8 in (15.2 x 9.5cm) document @ 7.0 in (17.8cm) |
| User Environment |
|
| Operating Temperature |
-4F to +122F (-20C to +50C) |
| Storage Temperature |
-40F to +158F (-40C to +70C) |
| Humidity |
5% to 95% RH, non-condensing |
| Environmental Sealing |
IP54 |
| Drop Specification |
Designed to withstand multiple drops at 5 ft (1.5m) to concrete |
| Approved Cleaners |
Refer to the product reference guide for the complete list of approved cleaners. |
| Electrostatic Discharge (ESD) |
ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity |
0 to 10,000 Foot Candles / 0 to 107,600 Lux |
| Symbol Decode Capability |
|
| 1D |
All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D |
All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm |
| OCR |
OCR-A, OCR-B, MICR, US Currency |
| Minimum Input Resolution |
Code 39: 3.0 mil; Code 128: 3.0 mil; Data Matrix: 5.0 mil; QR Code: 5.0 mil |
| |
Refer to Product Reference Guide for complete list of symbologies. |
| Decode Ranges (Typical) |
|
| Symbology/Resolution |
Near/Far |
| Code 39: 3 mil |
Trigger Mode: 2.8 in to 5.6 in (7.1cm to 14.2cm)
Presentation: 2.8 in to 5.6 in (7.1cm to 14.2cm) |
| Code 39: 4 mil |
Trigger Mode: 2.4 in to 8.0 in (6.1cm to 20.3cm)
Presentation: 2.4 in to 8.0 in (6.1cm to 20.3cm) |
| Code 39: 5 mil |
Trigger Mode: 1.6 in to 10.0 in (4.1cm to 25.4cm)
Presentation: 1.6 in to 9.0 in (4.1cm to 22.9cm) |
| Code 39: 7.5 mil |
Trigger Mode: 2.1 in to 15.0 in (5.3cm to 38.1cm)
Presentation: 2.2 in to 10.0 in (5.6cm to 25.4cm) |
| Code 39: 20 mil |
Trigger Mode: 1.6 in to 35.9 in (4.1cm to 91.2cm)
Presentation: 2.0 in to 18.0 in (5.1cm to 45.7cm) |
| Code 128: 3 mil |
Trigger Mode: 2.9 in to 5.5 in (7.1cm to 14.0cm)
Presentation: 2.9 in to 5.5 in (7.1cm to 14.0cm) |
| Code 128: 5 mil |
Trigger Mode: 2.1 in to 9.6 in (5.3cm to 24.4cm)
Presentation: 2.1 in to 8.5 in (5.3cm to 21.6cm) |
| PDF 417: 6.7 mil |
Trigger Mode: 2.3 in to 9.9 in (5.8cm to 25.1cm)
Presentation: 2.3 in to 8.9 in (5.8cm to 22.6cm) |
| UPC: 13 mil (100%) |
Trigger Mode: 1.6 in to 24.7 in (4.1cm to 62.7cm)
Presentation: 1.6 in to 14 in (4.1 cm to 35.6cm) |
| Data Matrix: 10 mil |
Trigger Mode: 1.9 in to 10.8 in (4.8cm to 27.4cm)
Presentation: 1.9 in to 9.5 in (4.8cm to 24.1cm) |
| QR: 20 mil |
Trigger Mode: 0.9 in to 17.3 in (2.3cm to 43.9cm)
Presentation: 0.9 in to 14.0 in (2.3cm to 35.6cm) |
| Regulatory |
|
|
Environmental
|
RoHS - EN IEC 63000:2018 Amendment 2015/863
WEEE RECAST 2012/19/EU
China RoHS - SJ/T 11364
REACH - EC 1907/2006 |
| Electrical Safety |
EN 62368-1:2014/AC:2015
EN 62368-1:2014/A11:2017
IEC 62368-1:2014
EN IEC 62368-1:2020+A11:2020
IEC 62368-1:2018
UL 62368-1, third edition
CAN/CSA-C22.2 No. 62368-1-19 |
| LED Safety |
EN 62471, IEC 62471 plus all amendments and all national deviations |
| EMI/RFI |
FCC 47 CFR Part 15B, ICES-003, EN55032, EN55035, EN61000-6-2, EN60601-1-2, IEC60601-1-2, VCCI, and SABS |
