Physical Characteristics
|

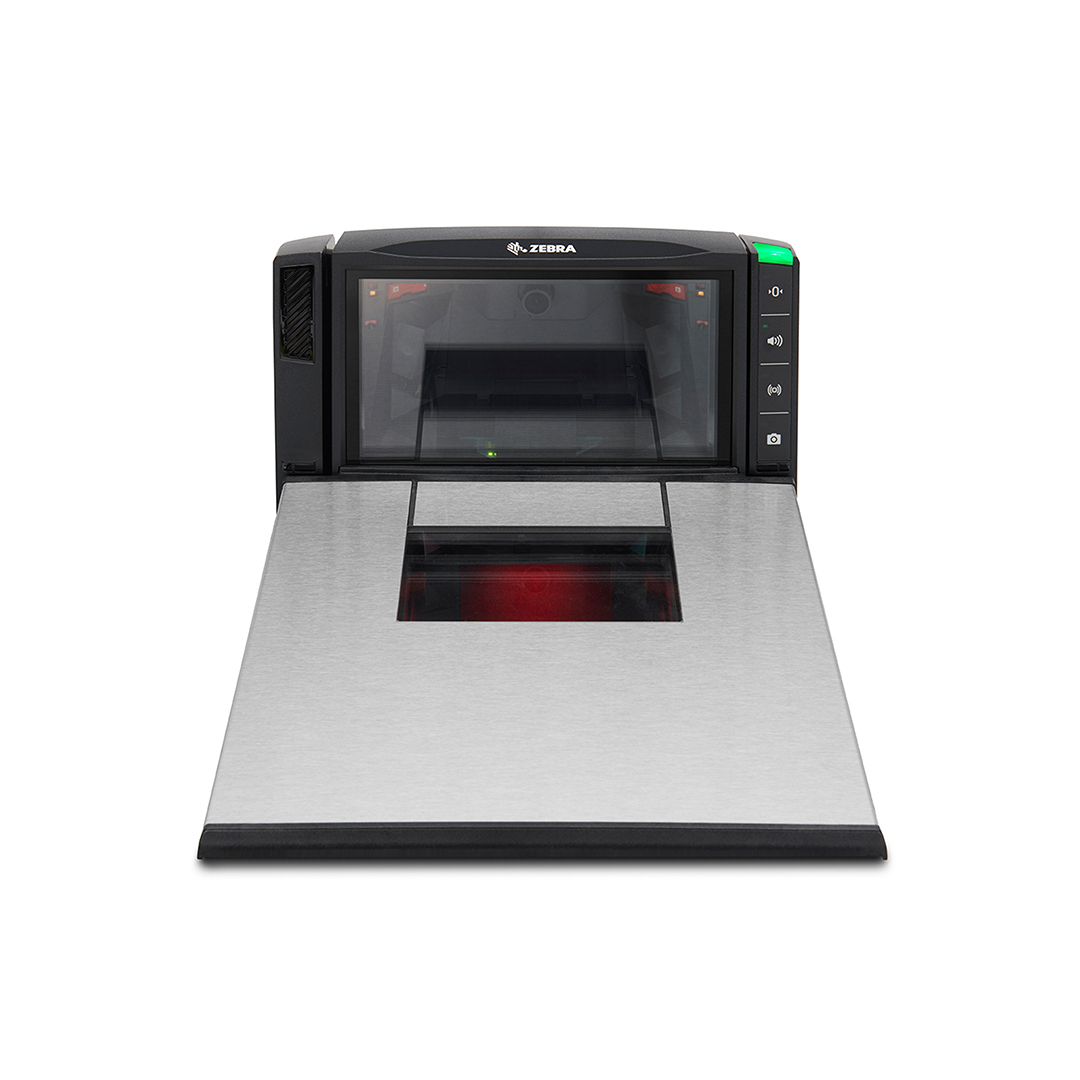

ZEBRA MP7200
|
|
Dimensions
|
Long scanner and scanner/scale:
20 in. L x 11.5 in. W x 4.00 in. D x 5.00 in H
506 mm L x 292 mm W x 101 mm D x 128 mm H
Medium scanner and scanner/scale:
15.7 in. L x 11.5 in. W x 4.00 in. D x 5.00 in. H
398 mm L x 292 mm W x 101 mm D x 128 mm H
Short scanner:
13.9 in. L x 11.5 in. W x 4.00 in. D x 5.00 in. H
351 mm L x 292 mm W x 101 mm D x 128 mm H
|
| Weight |
Long scanner: 13.10 lb/5.94 kg
Long scanner/scale: 17.85 lb/8.10 kg
Medium scanner: 11.20 lb/5.06 kg
Medium scanner/scale: 15.95 lb/7.22 kg
Short scanner: 11.55 lb/5.22 kg |
| Scale |
30 lb in 0.01 lb increments/15 kg in 5 g increments
Maximum static weight: 300 lb/136 kg
Single-cable and dual-cable protocols
Compatible with Mettler price computational scales
Options:
0-12 lb in 0.005 lb increments and 12-30 lb in 0.01 lb increments
0-6 kg in 2 g increments and 6-15 kg in 5 g increments
Single-head and dual-head remote scale displays
|
| Horizontal Glass |
Sapphire and DLC coated; leek bar option for scale models |
| User Indicators |
Soft touch capacitive pads (no buttons to break or wear out)
Good Decode LED (Front and Top)
Speaker (adjustable tone and volume)
Four programmable buttons |
| Ports |
One shared POS port for USB/RS-232/IBM RS-485
Three USB peripheral ports
Two powered RS-232 peripheral ports
Checkpoint Interlock port
Remote scale display port
Color Camera USB 3 type-C |
| Supported Host Interfaces |
USB, RS232, IBM46XX over RS485, SNAPI |
| Electronic Article Surveillance |
Compatible with Checkpoint and Sensormatic EAS deactivation system |
| Power |
12VDC from POS interface cable (USB PlusPower)
Zebra PWR-BGA12V50W0WW power supply: 90-264 V (110-240 nominal), 47-63Hz (50-60 nominal)
Idle Mode: 2.0 W (typical)
Active Mode: 2.75 W (typical) |
| User Environment |
|
| Operating Temperature |
32.0° to 104.0° F/0.0° to 40.0° C |
| Storage Temperature |
-40.0° to 158.0° F/-40.0° to 70.0° C |
| Humidity |
20% to 95%, non-condensing |
| Environmental Sealing |
IP5X |
| Ambient Light Immunity (for scanning): |
Artificial Light: 0 - 450 Foot Candles (4,842 LUX)
Sunlight: 0 - 8,000 Foot Candles (86,080 LUX) |
| Imaging Technology |
|
| Type |
CMOS Array Imager |
| Illumination |
Intelligent illumination |
| Sides Read/Scan Zone |
Reading of linear and 2D codes in all planes |
| Color Camera |
|
| Resolution |
HD Camera
|
| Interface |
Industry standard USB 3 Type-C |
| Orientation |
Landscape, upper (facing down) or lower (facing up) |
| Graphic Format |
Bitmap, JPEG, RAW |
| Illumination |
White LED |
| Symbol Decode Capability |
|
|
1D
|
All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D |
All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm and future GS1 Digital Link barcodes |
| Digimarc |
Digimarc barcodes |
| Minimum Input Resolution |
Code 39: 3.0 mil; Code 128: 3.0 mil; DataMatrix: 5.0 mil; QR Code: 5.0 mil |
| |
Refer to Product Reference Guide for complete list of symbologies. |
| Accessories |
Customer Facing Scanner, Pole Displays, Single and Dual Head |
| Regulatory |
|
| Environmental |
EN IEC 63000:2018 |
| Electrical Safety |
UL 62368-1; CAN/CSA-C22.2 No. 62368-1-14; IEC 62368-1; EN 62368-1 |
| LED Safety |
IEC 62471; EN 62471 |
| EMI/RFI |
47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 7, Class B; EN55032, EN55024, EN55035; EN61000-3-2; EN61000-3-3 |
