| Physical Characteristics |

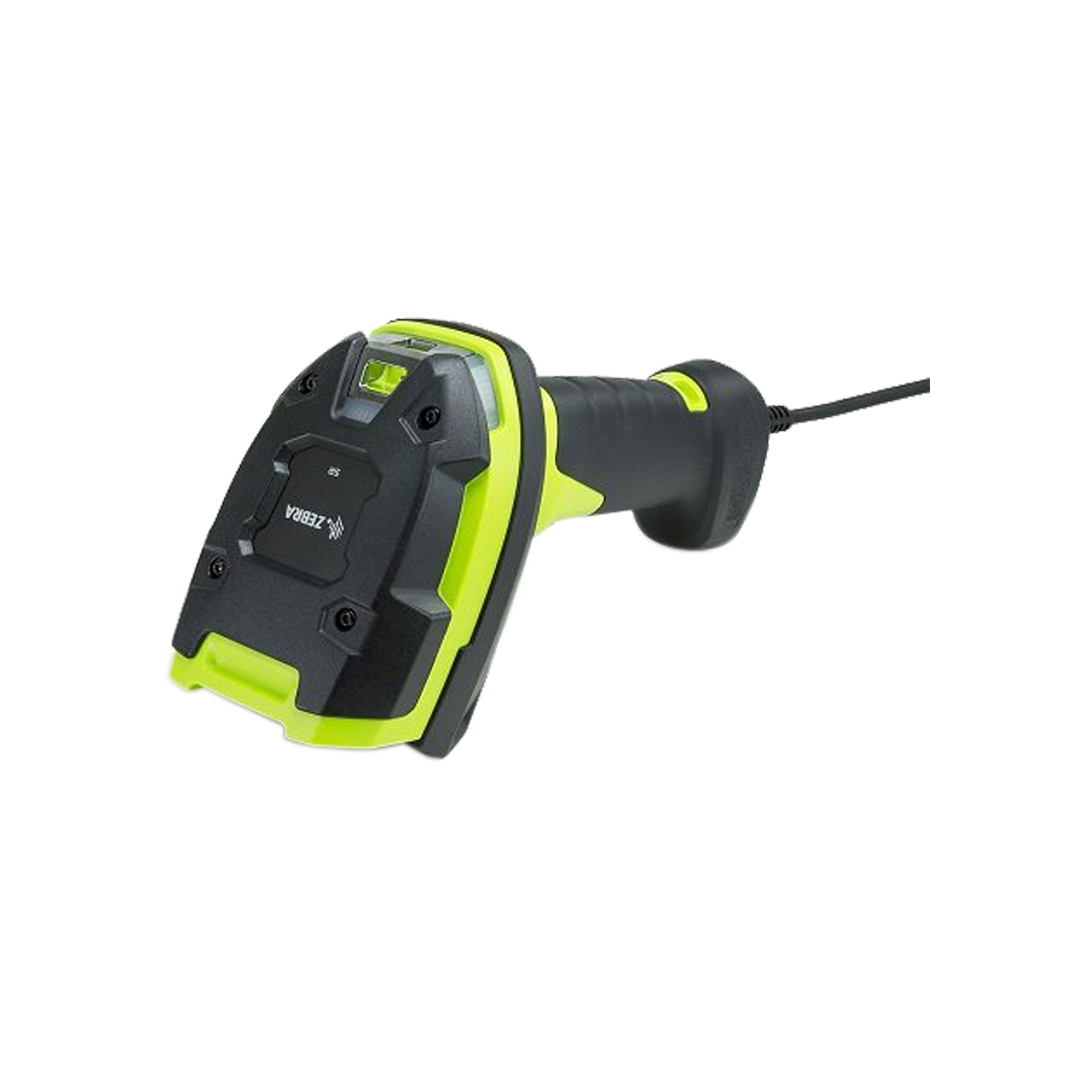

ZEBRA DS3608-XR |
| Dimensions
|
Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D
18.5 cm H x 7.6 cm W x 13.2 cm D
Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D
18.5 cm H x 7.7 cm W x 14.2 cm D |
| Weight |
Corded: 10.86 oz./308 g
Cordless: 14.46 oz./410 g |
| Input Voltage Range |
Host powered: 4.5 VDC min., 5.5 VDC max.
External power supply: 11.4 VDC min., 12.6 VDC max. |
| Operating Current |
Corded:
Near: 360mA (RMS typical)
Far: 450mA (RMS typical) |
| Standby Current |
Corded: 100 mA (RMS typical) |
| Color |
Industrial Green |
| Supported Host Interfaces |
USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP |
| Battery |
PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| FIPS Security Certification and TAA Compliance |
Certified Compliant with FIPS 140-3; Trade Agreement Act Compliant (specific configuration required) |
| User Indicators |
Direct decode indicator; LEDs; beeper; vibration |
| Performance Characteristics |
|
Scans per Full Charge
(Cordless) |
80,000 |
| Image Capture |
Basic |
| Aimer |
520 nm laser |
| Illumination |
Two warm-white LEDs 2700K |
| Imager Field of View |
Near: 42.1° (H) x 27° (V); Far: 14° (H) x 7.9° (V) |
| Image Sensor |
Far: 1920 horizontal x 1080 vertical pixels
Near: 1280 horizontal x 800 vertical pixels |
| Minimum Print Contrast |
25% minimum reflective difference |
| Skew/Pitch/Roll |
Skew: ± 60°; Pitch: ± 60°; Roll: ± 360° |
| Decode Capabilities |
|
| 1D |
Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D |
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
| Digimarc |
Digital watermark technology |
| IUID |
Supports IUID parsing, the ability to read and separate IUID fields per application requirements |
| User Environment |
|
| Operating Temp. |
Corded: -22° F to 122° F/-30° C to 50° C
Cordless: -4° F to 122° F/-20° C to 50° C |
| Storage Temp. |
-40° F to 158° F/-40° C to 70° C |
| Humidity |
5% to 95% non-condensing |
| Drop Specification |
DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature
Cordless: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C
Corded: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C |
| Tumble Specification |
7500 3.3 ft./1.0 m tumbles |
| Sealing |
Scanner: IP65 and IP68 per applicable IEC sealing specifications
FLB cradle: IP65 |
| ESD |
Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge |
| Ambient Light Immunity |
0 to 10,000 Foot Candles/0 to 107639 Lux (direct sunlight) |
| Wireless Connectivity |
|
| Bluetooth Radio |
Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles
|
| Data Rate |
3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth
1 Mbit/s (0.27 Mbit/s) for Low Energy |
| Radio Range |
Direct line of sight in open air:
Class 1: Minimum 300 ft. (100.0 m);
Class 2: Minimum 30 ft. (10.0 m) |
| Decode Ranges (Typical) |
|
| Symbology/Resolution |
Near/Far |
| 100% UPCA: 13 mil |
1.3 in. to 12.1 ft./3.3 cm to 3.7 m |
| Code 128: 10 mil |
2.2 in. to 8.5 ft./5.6 cm to 2.6 m |
| Code 128: 15 mil |
2.1 in. to 13.6 ft./5.3 cm to 4.1 m |
| Code 128: 40 mil |
*4 to 34.6 ft./*4 to 10.5 m |
| Code 128: 100 mil |
*4 to 87.6 ft./*4 to 26.7 m |
| Code 39: 5 mil |
1.3 in. to 4.7 ft./3.3 cm to 1.4 m |
| Code 39: 7.5 mil |
1.3 in. to 7.4 ft./3.3 cm to 2.2 m |
| Code 39: 20 mil |
2.0 in. to 18.1 ft./5.1 cm to 5.5 m |
| Code 39: 40 mil |
*4 to 41.1 ft./*4 to 12.5 m |
Code 39: 55 mil
Reflective |
*4 to 61.1 ft./*4 to 18.6 m |
| Code 39: 100 mil |
*4 to 105.1 ft./*4 to 32.0 m |
| Data Matrix: 10 mil |
1.3 in. to 5.5 ft./3.3 cm to 1.7 m |
| Data Matrix: 100 mil |
*4 to 52.1 ft./*4 to 15.9 m |
| Data Matrix: 200 mil |
*4 to 100.0 ft./*4 to 30.5 m |
| QR Code: 10 mil |
1.3 in. to 4.6 ft./3.3 cm to 1.4 m |
| Regulatory |
|
| Environmental |
RoHS EN 50581: 2012 |
| Electrical Safety |
EN 62368-1:2014/AC:2015
EN 62368-1:2014/A11:2017
IC 62368-1 (Ed.2)
UL 60950-1, second edition, CAN/CSA-C22.2 N |
| Laser/LED Safety |
21CFR1040.10 (Laser)
IC 60825-1:2014 (Ed.3.0): EN 60825-1:2014 (Laser)
EN 60825-1:2014/A11:2021
IC 62471:2006 (Ed.1.0): EN 62471:2008 (LED) |
| EMI/RF |
EN 55032:2015/A11:2020 (Class B)
EN 55035:2017/A11:2020
EN 61000-6-2:2005/AC:2005
EN 61000-3-2:2014 (Class A)
EN 61000-3-2:2019 (Class A)
EN 61000-3-3:2013
EN 61000-3-3:2013/A1:2019
EN 60601-1-2:2015. IC 60601-1-2:2014
47 CFR Part 15, Subpart B, Class B
ICES-003 Issue 7, Class B |
