Physical Characteristics
|

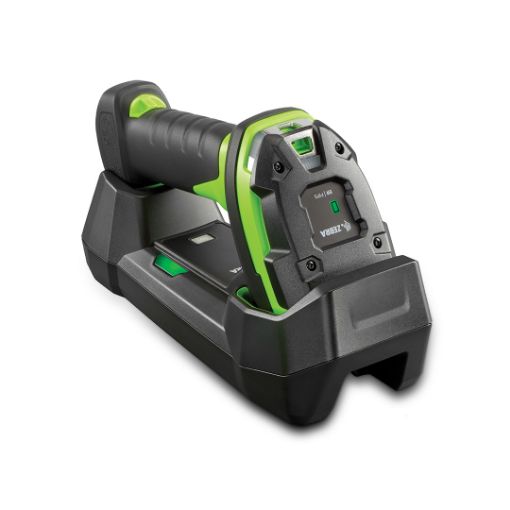

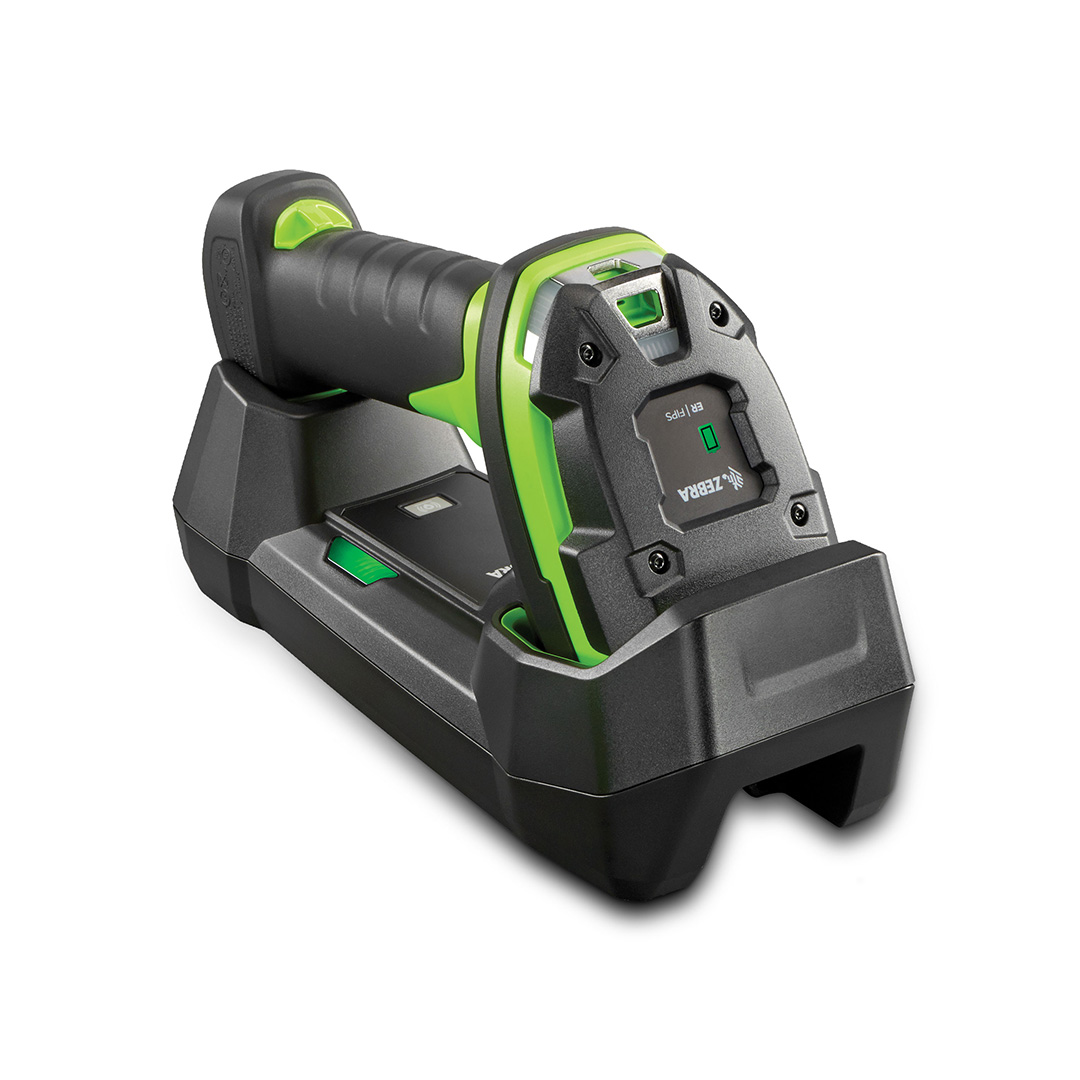

ZEBRA DS3678-ER |
|
Dimensions
|
Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D
18.5 cm H x 7.6 cm W x 13.2 cm D
Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D
18.5 cm H x 7.7 cm W x 14.2 cm D |
| Weight |
Corded: 11.8 oz./334 g
Cordless: 15.38 oz./436 g |
| Input Voltage Range |
Host powered: 4.5 VDC min., 5.5 VDC max.
External power supply: 11.4 VDC min., 12.6 VDC max. |
| Operating Current |
DS3608-ER (corded):
Near: 360mA (RMS typical)
Far: 800mA (RMS typical)
DS3608-ER (corded, in 500mA Compatibility Mode):
Near: 245mA (RMS typical)
Far: 410mA (RMS typical) |
| Standby Current |
DS3608-ER (corded): 100 mA (RMS typical) |
| Color |
Industrial Green |
Supported Host
Interfaces |
USB, RS232, Keyboard Wedge
Industrial Ethernet: EtherNet/IP, Profinet, Modbus
TCP & Std TCP/IP |
| Battery |
PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| User Indicators |
Direct decode indicator; LEDs; beeper; vibration |
| Performance Characteristics |
|
| Scans per Full Charge |
70,000+ |
| Image Capture |
Basic |
| Aimer |
655 nm laser |
| Illumination |
One 660 nm LED |
| Imager Field of View |
Near: 32° (H) x 20° (V); Far: 12° (H) x 7.6° (V) |
| Image Sensor |
1,280 x 800 (1 Megapixel) |
| Minimum Print Contrast |
25% minimum reflective difference |
| Skew/Pitch/Roll |
Skew: ± 60°
Pitch: ± 60°
Roll: ± 360° |
| Decode Capabilities |
|
| 1D |
Code 39, Code 128, Code 93, Codabar/NW7, Code
11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5,
GS1 DataBar, Base 32 (Italian Pharma) |
| 2D |
PDF417, Micro PDF417, Composite Codes, TLC-39,
Aztec, DataMatrix, MaxiCode, QR Code, Micro QR,
Chinese Sensible (Han Xin), Postal Codes |
| Digimarc |
Digital watermark technology |
| IUID Support |
Supports IUID parsing, the ability to read and
separate IUID fields per application requirements |
| User Environment |
|
| Operating Temp. |
Corded: -22° F to 122° F/-30° C to 50° C
Cordless: -4° F to 122° F/-20° C to 50° C |
| Storage Temp. |
-40° F to 158° F/-40° C to 70° C |
| Humidity |
5% to 95% non-condensing |
| Drop Specification |
DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature
DS3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C
DS3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C |
| Tumble Specification |
7500 3.3 ft./1.0 m tumbles |
| Sealing |
Scanner: IP65 and IP68 per applicable IEC sealing specifications
FLB cradle: IP65 |
| ESD |
Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge |
| Ambient Light Immunity |
0 to 10,000 Foot Candles/0 to 107639 Lux
(direct sunlight) |
| Wireless Connectivity |
|
|
Bluetooth Radio
|
Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles |
| Data Rate |
3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth
1 Mbit/s (0.27 Mbit/s) for Low Energy |
| Radio Range |
Direct line of sight in open air: Class 1: Minimum
300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m) |
| Decode Ranges (Typical) |
|
|
Symbology/Resolution
|
Near/Far |
| Code 128: 15 mil |
5.0-100.0 in./12.7-254.0 cm |
| Code 128: 40 mil |
3.5-260.0 in./8.9-660.4 cm |
| Code 128: 100 mil |
20-840.0 in./50.8-2133.6 cm |
| Data Matrix: 10 mil |
4.0-44 in./10.1-111.76 cm |
| Data Matrix: 200 mil |
10-500 in./25.4-1270.0 cm |
| Regulatory |
|
| Environmental |
RoHS EN 50581: 2012 |
| Electrical Safety |
EU Safety: EN 60950-1: 2006 + A11: 2009 + A1:
2010 + A12: 2011 + AC 2011 + A2: 2013;
International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013
US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07 |
| Laser/LED Safety |
Complies with 21 CFR1040.10 and 1040.11 except for deviations pursuant to Laser Notice NO. 50, dated June 24, 2007 and IEC/EN 60825-1:2007 and/or IEC/EN 60825-1:2014 |
| EMI/RFI |
IT Emissions: EN 55022: 2010/AC: 2011 (Class B);
IT Immunity: EN 55024: 2010;
Heavy Industrial: EN 61000-6-2: 2005/AC:2005;
Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B);
Voltage Fluctuation and Flicker:
EN 61000-3-3: 2013;
Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified);
Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B
Digital Apparatus: ICES-003 Issue 5, Class B |
