ZEBRA AN510 Ultra-Rugged RFID Antennas (PN:AN510-CSCL60003US)

RFID Antennas

RFID antennas are used to read RFID tags in warehouses, production lines, retail stores, medical centers and hospitals, sporting events, etc. The wide variety of RFID antennas provided by Dipole RFID have been chosen to meet the real needs of users, so you can find the right antenna for your application. An antenna creates a three-dimensional field of action called a "beam", "pattern", "break radiation" or "bulb". The differences between existing RFID antennas can be summarized by two characteristics: For short or long action, chosen depending on the distance you want to read For high or low density fields; chosen depending on the nature of the items that need to be read and the quantity of items you need to be read at the same time The main features are: Multiple frequency bands. Mounting Options indoor / outdoor Low axial ratio - defines the quality of circular polarization, improves the reliability of read RFID tags. Robust design - rfid antennas are normally used. For difficult environments such as warehouses and production lines. All-metal construction. Side left circular polarization (LH) and right (RH) Circular. Vertical linear polarization (VPOL) and horizontal linear polarization (HPOL).

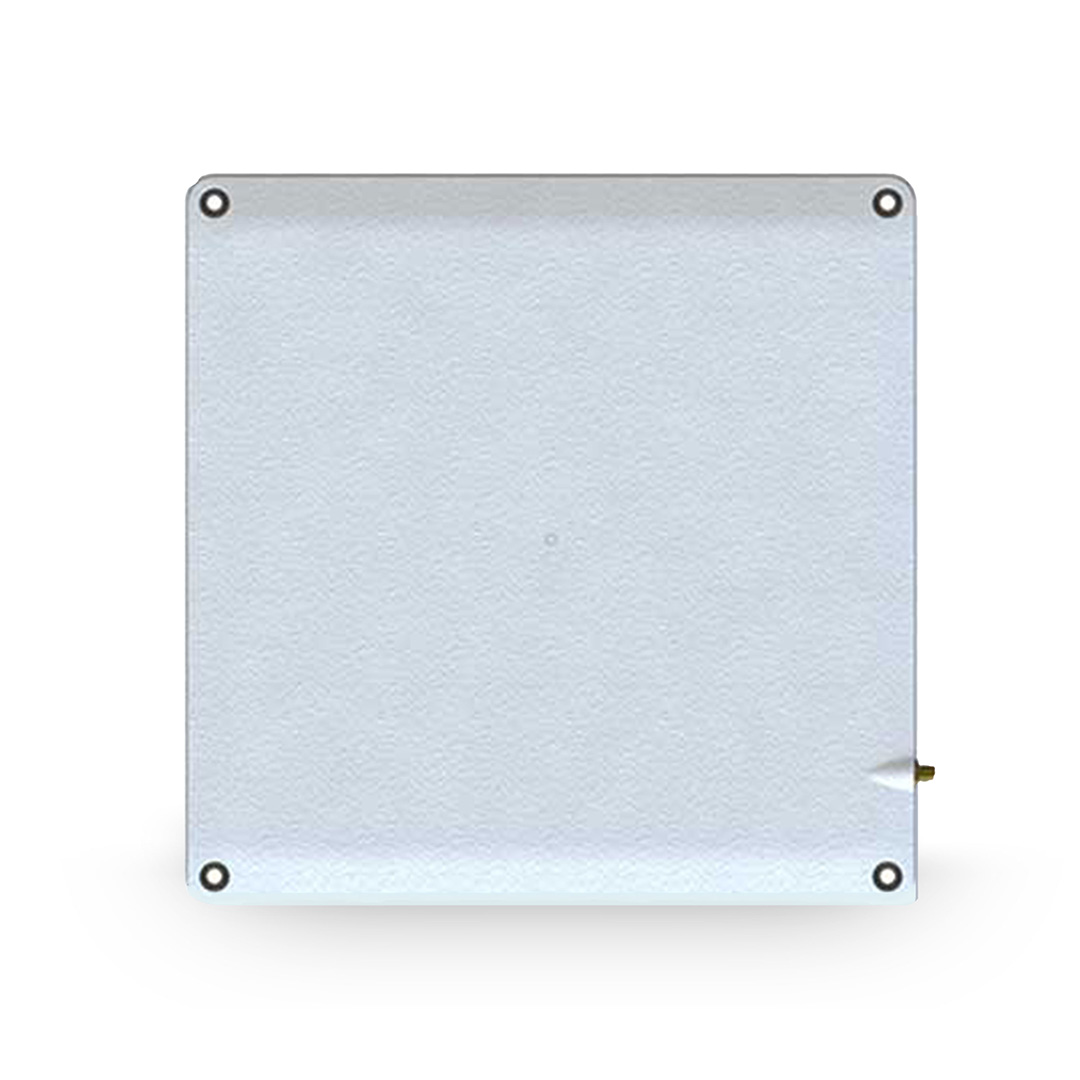

RFID Antenna Zebra AN510

Zebra's AN510 UHF RFID antenna is a product designed for installation in different industrial environments such as dock doors, conveyor belts, both indoors or outdoors. Its outer casing makes it discreet to install it indoors and highly resistant to install it outdoors, since the installation of this antenna is simplified with VESA studs so that it can be placed flush with the wall.

Some of the industries where this antenna is most used are retailers, factories, automotive, aviation, logistics and many others thanks to its great versatility.

Product Description Zebra AN510

The Zebra AN510 is an antenna for industrial use as it has IP67 sealing certification that perfectly isolates it from dusty and watery environments to be able to work in environments with a large number of particles in the environment without affecting its performance.

It has right circular polarization and SMA Female connection located on the side of the antenna, 68º opening angle, 1 dB axial ratio and 3 v maximum power.

Its dimensions are 25 cm x 25 cm x 1.1 cm and a total weight of 750 grams. The optimum operating temperature provided by the manufacturer is from -20C to +55 ºC.

• Technology: UHF
• Frequency: UHF FCC 902-928 MHz, UHF ETSI 865-868 MHz
• Gain: 8.5 dBi
• Maximum Power: 3 Watts
• Polarization: Right-hand Circular
• Beamwidth: 68°
• Connection Connector Type: SMA Male
• Protection degree: IP67
• Operating temperature: -25 °C to 55 °C / -13 °F to 161 °F
• Size: 250mm x 250mm x14mm - 9.84in x 9.84inx0.55in
