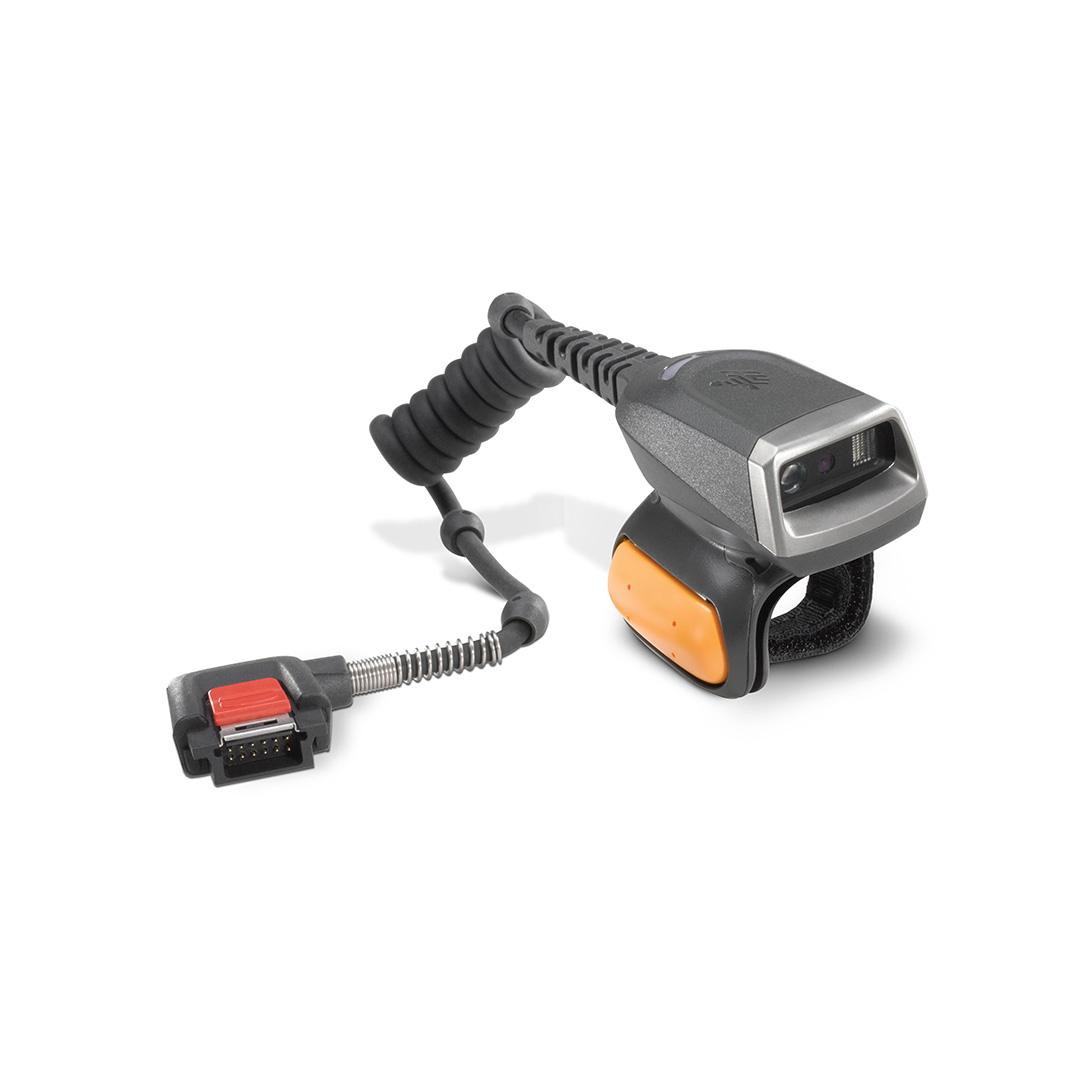

    ZEBRA RS5000 1D/2D Corded Ring Scanner Short Cable version for WT6000 (RS5000-LCFSWR)

    Manufacturer: ZEBRA
    ZEBRA RS5000 Maximise Worker Productivity and the Value of Your Zebra Wearable Computers With Zebra's hands-free RS5000 ring scanner, you can. Your workers can capture virtually any barcode at lightning speed with point-and-shoot simplicity — 1D or 2D, in virtually any condition. When it comes to comfort, the RS5000 delivers this lightweight, perfectly-balanced little scanner is worn on a single finger on either hand, leaving both hands free to handle materials.
    SKU: เครื่อง/Set



    Call for pricing
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Product Files
    RS5000 1D/2D Corded Ring Scanner
    Improve the productivity of your zebra wearable computer users with cost-effective hands-free 1D/2D scanning
    Want to maximize the productivity of your Zebra wearable computer users? With Zebra’s hands-free RS5000 scanner, you can. Your workers can capture virtually any barcode at lightning speed with point-and-shoot simplicity — 1D or 2D, in virtually any condition. When it comes to comfort, the RS5000 delivers — this lightweight, perfectly-balanced little scanner is worn on a single finger on either hand, leaving both hands free to handle materials. And since the warehouse, distribution center and manufacturing plants are some of the toughest environments, this little scanner is big on durability. Your workers can drop it, spray it with water and even use it in the freezer — and still expect reliable operation. Get the powerful little ring scanner that delivers more — more productive workers, more value out of your Zebra wearable computers and more satisfied customers.

    Rugged Ring Scanner
    The RS5000 is designed for challenging warehouse and manufacturing environments. Designed for subzero environments, it can be used in your warehouse aisles and in the freezer. It can withstand a 4 ft./1.2 m drop across the entire operating temperature range — a must for freezer use. Even after 1,000 consecutive bumps, the RS5000 delivers reliable operation. And with its IP65 sealing, this rugged scanner is dust-proof and spray-proof.
    Wide Working Range
    Workers can capture barcodes from near contact to over 25 in./63.5 cm.
    PRZM Intelligent Imaging for Unparalleled Scanning Performance
    Only from Zebra, PRZM resets the bar for imaging by providing features that reduce decode time, enabling lightning fast capture of virtually any barcode in any condition. PRZM turns poor images into instantly useful images, so high quality images are available for decoding faster. PRZM then handles some of the processing typically handled in the decoder, increasing decoding speed, reducing power usage and improving battery cycle times. The result? The faster-than-ever accurate scanning your workers need to improve productivity and reduce cycle times in your operations.
    Ambidextrous Operation
    With the convenient swivel feature, your workers can easily switch between right and left-handed operation on the fly, allowing users to choose the hand that is most comfortable — and switch hands in seconds.
    Wide Field of View
    Workers can easily read the large barcodes often found in warehouses, as well as labels that contain multiple barcodes.
    Omni-directional Scanning for Point-and-Shoot Simplicity
    scanner, reducing training requirements and enabling intuitive and rapid barcode capture.
    Separate Finger Strap Assembly
    Give each worker their own easy-to-replace finger strap assembly to help improve hygiene and prevent the spread of germs.
    Picklist Mode
    The small and sharp aiming dot allows users to easily select and scan a single barcode from a field of barcodes.
    Easy to Deploy
    Whether you use the WT41N0 or WT6000 Zebra wearable computers, there is a configuration that connects in seconds.

    Models : RS5000 Short Cable version for WT6000 (RS5000-LCFSWR)

    Physical Characteristics

    • Dimensions : 2.0 in. L x 1.26 in. W x 1.1 in. D (51.5mm L x 32mm W x 27.5mm D)
    • Weight : WT6000 short cable version: 76 g

    Specifications

    ModelsRS5000 Short Cable version for WT6000 (RS5000-LCFSWR)
    RS5000 Long Cable version for WT6000 (RS5000-LCFLWR)
    RS5000 Short Cable version for WT41N0 (RS5000-LCBSWR)
    Physical Characteristics
    Dimensions2.0 in. L x 1.26 in. W x 1.1 in. D
    51.5mm L x 32mm W x 27.5mm D
    WeightWT41 version weight: 92 g
    WT6000 short cable version: 76 g
    WT6000 long cable version: 112 g
    Performance Characteristics
    Optical Resolution1280 x 800 pixels
    Roll360°
    Pitch Angle±60° from normal
    Skew Tolerance:±60° from normal
    Aiming Element610nm LED
    IlluminationOne Hyper Red 660nm LED
    Field of ViewHorizontal: 42°, Vertical: 28.0°
    Ambient Light Immunity (from total darkness)Indoor: 450 ft. candles (4,845 lux)
    Outdoor: 9,000 ft. candles (96,900 lux)
    Supported 1D SymbologiesCode 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma)
    Supported 2D SymbologiesPDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes.
    User Interface
    LEDTwo color red/green scan status LED
    Scan TriggeringManual ambidextrous trigger
    User Environment
    Operating Temp.-22°F to +122°F/-30°C to +50°C
    Storage Temp.
    -40°F to +140°F/-40°C to +60°C
    Humidity
    5% to 95% non-condensing
    Drop RatingMultiple 4 ft. /1.2 m drops to concrete over the operating temperature range
    Tumble Rating
    1,000 tumbles @ 0.5 m at room temperature
    Sealing
    IEC 60529: IP65
    Vibration
    Sine 5-2000Hz, 4g peak, 1 hour per axis; Random 20-2000Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis
    Electrostatic Discharge (ESD)
    +/-20kVdc air discharge
    +/-10kVdc contact discharge
    Software Compatibility
    DataWedge and select MDM solutions (via Zebra’s MDM toolkit)
    Recommended Services
    Zebra OneCare

    Warranty

    Subject to the terms of Zebra’s hardware warranty statement, the RS5000 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement

    SE4710 Focus Range*


    Symbology
    Near
    5 mil Code 39
    2.75 in./6.9 cm
    5 mil Code 128
    3.5 in./8.89 cm
    5 mil PDF417
    4.25 in./10.8 cm
    10 mil DataMatix
    3.75 in./9.5 cm
    100% UPCA
    1.8 in./4.5 cm
    20 mil Code 392 in./5.0 cm
    Far
    5 mil Code 39
    12 in./30.4 cm
    5 mil Code 1287.5 in./19.0 cm
    5 mil PDF4177.25 in./18.4 cm
    10 mil DataMatix
    9 in./22.8 cm
    100% UPCA
    19.75 in./50.1 cm
    20 mil Code 39
    25 in./63.5 cm
    * NOTE: The ranges listed are limited by the width of the barcode in the field of view.
    Specifications subject to change without notice.
