| Dimensions |
3.18 in. L x 2.4 in. W x 1.49 in. D
81 mm L x 61 mm W x 38 mm D |
| Weight |
6.9 oz./196 g
(finger mount) |
| Display |
2 in. AMOLED 460 x 460 color display; optically bonded to touch panel |
| Imager Window |
Corning® Gorilla® Glass |
| Touch Panel |
Capacitive touch panel; fingertip and glove support; Corning® Gorilla® Glass |
| Power |
9.24 Watt Hours; 2400mAh PowerPrecision; Hot Swap (2 minutes, memory persistent) |
| Network Connections |
USB 2.0 High Speed (host and client), WLAN and Bluetooth |
| Notifications |
Audible tone; charge LED; OS notification LED; multi-color Application LEDs (2); haptic feedback |
| Voice and Audio |
Speaker (90dBA); internal mic; PTT ready; Bluetooth headset support |
| Buttons |
Trigger; 2 buttons (programmable) |
Interfaces
|
Docking contacts; Via interface cables: USB-C (USB 2.0) host/client and charging |
Scanner Performance
|
|
| Optical Resolution |
1280 x 800 pixels |
| Roll |
360° |
Pitch
|
±60° |
Skew
|
±60° |
| Aiming Element |
655 nm Laser |
| Illumination Element |
1 Hyper Red 660 nm LED or 1 Warm-White LED |
| Field of View |
Horizontal: 48°, Vertical: 30° |
| Ambient Light Immunity (from total darkness) |
Maximum 107,639 lux (direct sunlight) |
| Supported 1D Symbologies |
Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma) |
| Supported 2D Symbologies |
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
Supported OCR Symbologies
|
OCR-A, OCR-B |
| Scan Triggering |
Manual ambidextrous trigger or automatic via Proximity Sensor technology |
| Performance Characteristics |
|
CPU
|
Snapdragon Wear™ 4100 Platform/SDW429w, quad-core, 2.0 GHZ |
Operating System
|
Android 11 AOSP |
Memory
|
1 GB RAM/8 GB Flash |
User Environment
|
|
| Operating Temperature |
14° F to 122° F/-10° C to +50° C |
| Storage Temperature |
-40° F to 158° F/-40° C to +70° C |
| Humidity |
5% - 95% non condensing |
| Drop Specification |
5 ft./1.5 m drop to concrete per MIL-STD 810G across operating temperature |
| Tumble Specification |
2,000 tumbles @ 1.6 ft./0.5 m
Meets and exceeds IEC tumble specifications |
| Sealing |
IP65 |
| Vibration |
4 g’s PK Sine, 5hz to 2khz, 1 hour duration per axis; 0.04 g2/Hz Random (20 Hz to 2 kHz), 1 hour duration per axis. |
| Electrostatic Discharge (ESD) |
+/-15 kV air discharge, +/-8 kV direct/indirect discharge |
| Interactive Sensor Technology (IST) |
|
| Light Sensor |
Automatically adjusts display backlight brightness |
Motion Sensor
|
6-axis accelerometer with MEMS Gyro
|
Data Capture
|
|
Scanning
|
SE4770 1D/2D standard range omni-directional imager |
NFC
|
Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, and Card Emulation via Host (HCE) support
|
RFID
|
|
| Standards Supported |
EPC Class 1 Gen 2; EPC Gen 2 V2
|
| RFID Engine |
Zebra proprietary radio technology |
Nominal Read Range
|
~5 ft./~1.5 m
|
Frequency Range and RF System Output
|
US: 917-928 MHz; 0-24 dBm
EU: 865-868 MHz; 0-24 dBm
|
| Wireless LAN |
|
| Radio |
IEEE 802.11 a/b/g/n/ac/d/h/i/r; Wi-Fi™ certified; IPv4, IPv6, 1x1 SISO |
| Data Rates |
2.4 GHz: 802.11b/g/n/ac—20 MHz, 40 MHz—up to 200 Mbps
5 GHz: 802.11a/g/n/ac—20 MHz, 40 MHz, 80 MHz—up to 433 Mbps |
| Operating Channels |
Channel 1-13 (2412-2472 MHz); Channel 36-165
(5180-5825 MHz)
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/frequencies and
bandwidths depend on regulatory rules and
certification agency |
| Security and Encryption |
WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP andAES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, EAP-PWD |
| Certifications |
WFA (802.11n, 80211ac, WPA2-Personal, WPA3-Personal, WPA2-Enterprise, PMF) |
| Fast Roam |
PMKID caching; 802.11r (Over-The-Air); OKC |
| Wireless PAN |
|
Bluetooth
|
Bluetooth 4.2; Bluetooth Low Energy (BLE) support;
Class 1
|
Warranty
|

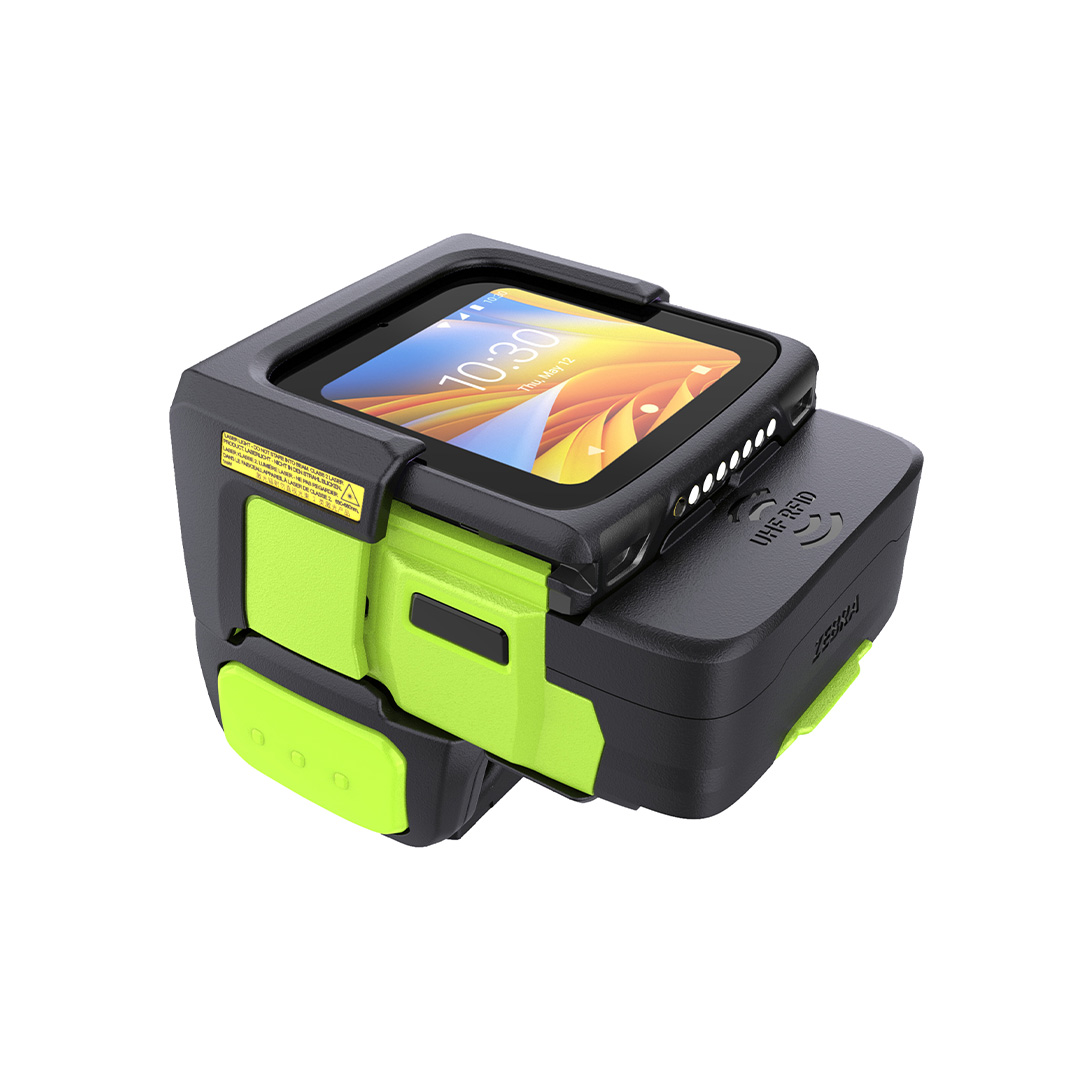

Subject to the terms of Zebra’s hardware warranty statement, the WS50 RFID is warranted against defects in workmanship and materials for a period of one (1) year from the date of shipment. For complete warranty statement, please visit |
