Physical Characteristics
|

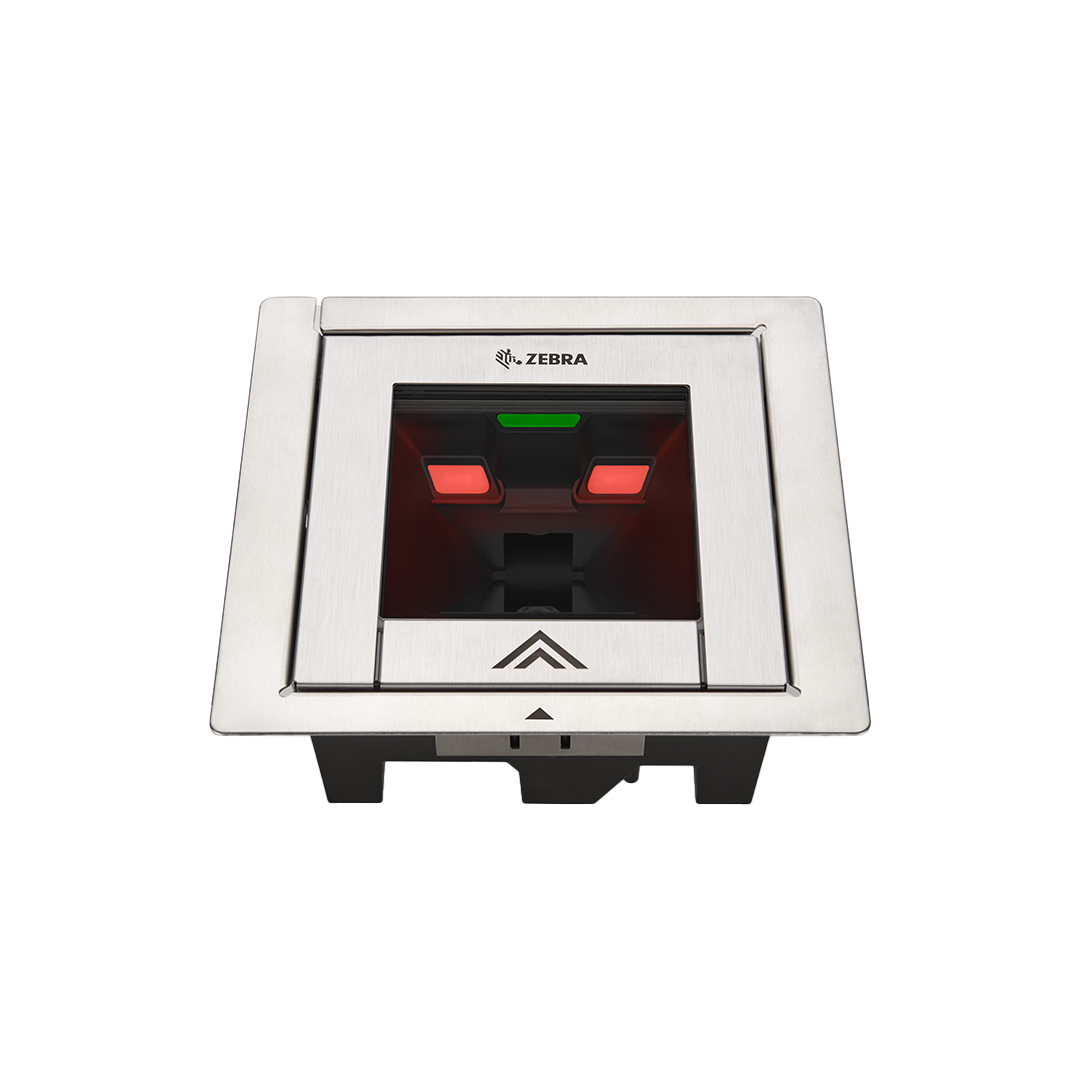

ZEBRA SP72-H |
|
Dimensions
|
SP72-V: 5.4 in H x 6.0 in W x 3.3 in D
13.7cm H x 15.2cm W x 8.4cm D
SP72-H: 6.0 in H x 6.0 in W x 3.4 in D
15.2cm H x 15.2cm W x 8.6cm D |
| Weight |
SP72-V: 20.3 oz (577g); 21.2 oz (602g) with color camera
SP72-H: 30.4 oz (864g) with Sapphire glass; 29.4 oz (834g) with DLC |
| Input Voltage Range |
4.7 to 5.2 VDC host powered; 11 to 13 VDC external power supply |
Operating Current at Nominal Voltage
(average) |
SP7201: 5.0 VDC +/-10% @ 480mA (average)
SP7208: Without auxiliary scanner and color camera: 5.0 VDC +/-10% @ 480mA (average)
With auxiliary scanner and color camera: 12.0 VDC +/-10% @ 450mA (average) |
|
Standby Current (Idle) at Nominal Voltage (average)
|
SP7201: 5.0 VDC +/-10% @ 240mA (average)
SP7208: Without auxiliary scanner and color camera: 5.0 VDC +/-10% @ 240mA (average)
With auxiliary scanner and color camera: 12.0 VDC +/-10% @ 200mA (average) |
| Color |
Midnight Black |
| Glass |
SP72-H: Sapphire, Diamond-Like Coating (DLC) |
| Ports |
SP7201: Host (RJ45 10-pin), optional EAS (RJ45 10-Pin)
SP7208: SP72-V: Host (RJ45 10-pin), AUX scanner (USB-A), AUX power (barrel jack), optional EAS (RJ45 10-pin), optional color camera (USB-C)
SP72-H: Host (RJ45 10-pin), AUX scanner (USB-A), AUX power (barrel jack), optional EAS (RJ45 10-pin), external speaker (2-pin connector) |
| Supported Host Interfaces |
USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| USB Certification |
USB Certification |
| Keyboard Support |
Supports over 90 international keyboards |
| Electronic Article Surveillance |
Compatible with Checkpoint and Sensormatic EAS deactivation system |
| User Indicators |
SP72-V: Good Decode LEDs (Front and Top), Speaker (adjustable tone and volume)
SP72-H: Good Decode LEDs (Front), Speaker (adjustable tone and volume), Port for 2nd (external) Speaker |
| Imaging Characteristics |
|
| Swipe Speed (Hands-Free) |
Up to 120 in./305 cm per second for 13 mil UPC in optimized mode |
| Resolution |
2.3 Megapixel (1920 x 1200 pixels) |
| Illumination |
(4) 660nm Deep Red LEDs |
| Imager Field of View |
54° H x 35.5° V nominal |
| Minimum Print Contrast |
15% minimum reflective difference |
| Skew Tolerance |
+/- 70° |
| Pitch Tolerance |
+80°/-60° |
| Roll Tolerance |
0°-360° |
| Graphics Format |
Bitmap, JPEG |
| Imaging Characteristics—Color Camera (SP7208-V) |
|
| Resolution |
2.3 Megapixel (1920 x 1200 pixels) |
| Illumination |
(4) 660nm Deep Red LEDs, (2) Warm White LEDs (2700°K) |
| Imager Field of View |
129° H x 75.9° V nominal |
| Graphics Format |
Bitmap, JPEG, RAW |
| Interface |
Industry standard USB 3 Type-C |
| User Environment |
|
| Operating Temperature |
32.0F to 122.0F (0.0C to 50.0C) |
| Storage Temperature |
-40.0F to 158.0F (-40.0C to 70.0C) |
| Humidity |
20% to 95% RH, non-condensing |
| Environmental Sealing |
IP52 |
| Approved Cleaners |
Refer to the product reference guide for the complete list of approved cleaners. |
| Electrostatic Discharge (ESD) |
ESD per EN61000-4-2, +/-15 KV Air, +/-25 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity |
0 to 8,000 Foot Candles/0 to 86,100 Lux |
| Symbol Decode Capability |
|
| 1D |
All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D |
All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm |
| Digimarc |
Digimarc barcodes |
| Minimum Input Resolution |
Code 39: 3.0 mil; Code 128: 3.0 mil; Data Matrix: 5.0 mil; QR Code: 5.0 mil |
| |
Refer to Product Reference Guide for complete list of symbologies. |
| Decode Ranges (Typical) |
|
| Symbology/Resolution |
Near/Far
|
| Code 39: 3 mil |
SP72-V: 0 in to 3.8 in (0cm to 9.7cm)
SP72-H: 0 in to 2.9 in (0cm to 7.3cm) |
| Code 39: 10 mil |
SP72-V: 0 in to 8.1 in (0cm to 20.6cm)
SP72-H: 0 in to 6.7 in (0cm to 17.1 cm) |
| Code 128: 3 mil |
SP72-V: 0 in to 3.3 in (0cm to 8.4cm)
SP72-H: 0 in to 2.5 in (0cm to 6.3cm) |
| Code 128, 15 mil |
SP72-V: 0 in to 9.0 in (0cm to 22.9cm)
SP72-H: 0 in to 7.6 in (0cm to 19.4cm) |
| PDF417, 15 mil |
SP72-V: 0 in to 7.6 in (0cm to 19.2cm)
SP72-H: 0 in to 6.3 in (0cm to 16.0cm) |
| 100% UPCA, 13.0 mil |
SP72-V: 0 in to 8.6 in (0cm to 21.8cm)
SP72-H: 0 in to 7.2 in (0cm to 18.2cm) |
| Data Matrix, 5 mil |
SP72-V: 0.2 in to 2.6 in (0.5cm to 6.5cm)
SP72-H: 0 in to 2.2 in (0cm to 5.7cm) |
| Data Matrix, 15 mil |
SP72-V: 0 in to 6.6 in (0cm to 16.8cm)
SP72-H: 0 in to 5.6 in (0cm to 14.1cm) |
| QR, 20 mil |
SP72-V: 0 in to 7.5 in (0cm to 19.1cm)
SP72-H: 0 in to 6.3 in (0cm to 16.0cm) |
| Accessories |
|
|
SP72-V
|
Table Mount Bracket, Riser Mount Bracket |
| SP72-H |
Bucket Mount, Diamond-Like Coated Glass Platter, Sapphire Glass Platter |
| Regulatory |
|
|
Environmental
|
EN IEC 63000:2018 |
| Electrical Safety |
UL 62368-1; CAN/CSA-C22.2 No. 62368-1-14; IEC 62368-1; EN 62368-1 |
| LED Safety |
IEC 62471; EN 62471 |
| EMI/RFI |
47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 7, Class B; EN55032, EN55024, EN55035; EN61000-3-2; EN61000-3-3 |
