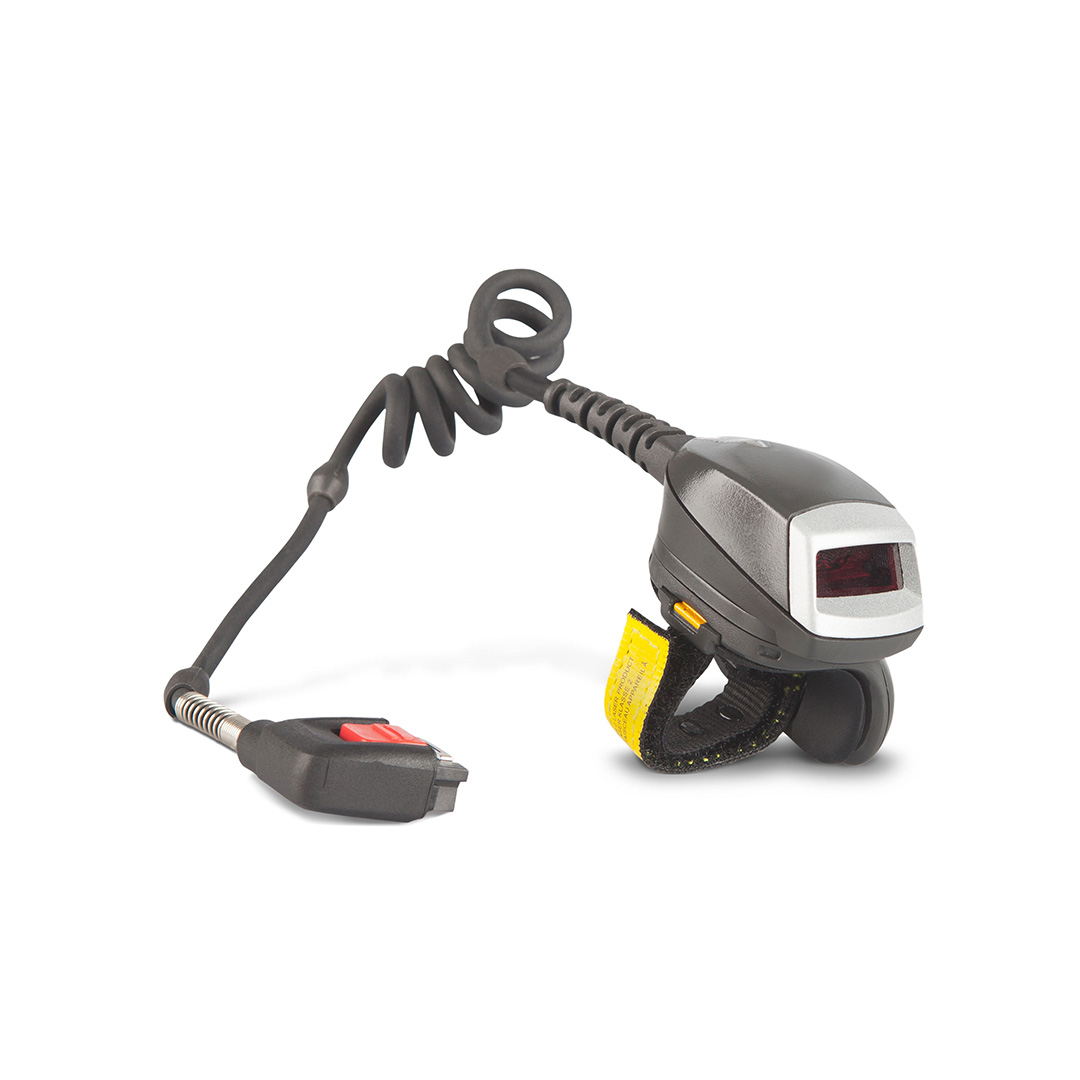

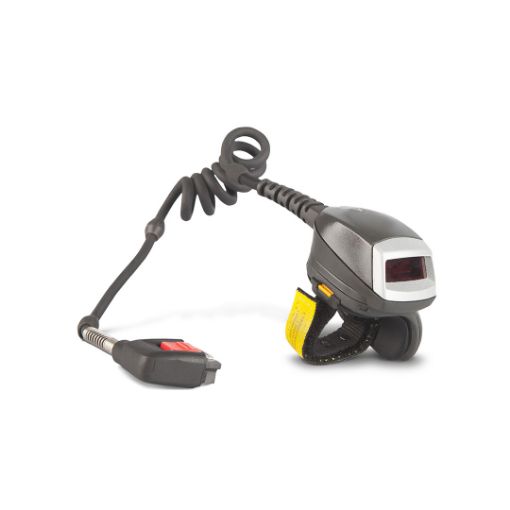

    ZEBRA RS4000 1D Corded Ring Scanner

    Manufacturer: ZEBRA
    Zebra /EMC, RS4000 Corded Ring Scanner to WT6000 Wearable Terminal, Short Cable to Wrist Powerful Hands-Free 1D Scanning for Zebra's Next-Generation WT6000 Wearable Mobile Computer When you put the small and lightweight RS4000 1D ring scanner on the fingers of workers who are using Zebra’s WT6000 wearable mobile computer, your workers are free to keep their hands and eyes on the items they are handling. The result? Worker productivity increases. And a split-second press of the RS4000 trigger verifies task accuracy and provides the real-time inventory visibility you need to eliminate out-of-stocks.
    SKU: เครื่อง/Set



    Call for pricing
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Product Files
    Zebra RS4000 1D Ring Scanner
    POWERFUL HANDS-FREE 1D SCANNING FOR ZEBRA'S NEXT-GENERATION WT6000 WEARABLE MOBILE COMPUTER
    Whether your workers spend their days moving products through your warehouse or retail store, or moving packages through distribution centers and onto trucks for delivery, every time they need to set an item down to check a paper work order or scan a barcode with a handheld device, their productivity decreases. But when you put the small and lightweight RS4000 1D ring scanner on the fingers of workers who are using Zebra's WT6000 wearable mobile computer, your workers are free to keep their hands and eyes on the items they are handling. The result? Worker productivity increases. And a split-second press of the RS4000 trigger verifies task accuracy and provides the real-time inventory visibility you need to eliminate out-of-stocks.

    Give your Workers Hands-Free Scanning Power
    Ring scanner design leaves hands free to move packages and other materials, improving worker productivity and operational efficiency.
    Increase Productivity with a Wide Working Range
    Our patented Adaptive Scanning technology allows workers to capture barcodes from near contact to 15 ft./4.5 m.
    Two Scanning Modes
    Workers can either press the trigger button once to scan a single barcode or keep the trigger depressed to continuously scan barcodes.
    Capture Virtually any Barcode in Practically any Condition
    With our advanced scanning algorithms, your workers can capture scratched, dirty, damaged and poorly printed barcodes, first time, every time.
    A Patented Liquid Polymer Scan Element with a Lifetime Warranty
    Friction and wear are eliminated, maximizing uptime and worker productivity, along with a low total cost of ownership.
    A Bright Scan Line
    The easy to see scan line ensures easy aiming for first-time capture of barcodes in virtually any lighting condition. And with an oversize LED light, users can easily see when a scan is successful.
    Diecast Zinc Scan Engine Chassis, Single Board Construction and Scan Engine Isolation
    Superior impact protection for the scan engine improves reliability in the event of a drop.
    Cable Wear Beads
    The areas of the cable most vulnerable to wear and tear are protected to help keep your RS4000 ring scanners looking like new.
    Supports Reduced Space Symbology (RSS)
    A broad range of scanning capabilities provides future-proofing, increasing your investment protection.
    Convenient Swivel Feature
    Workers can easily switch the RS4000 from right to left handed operation.
    Separate Finger Strap Assembly
    Give each worker their own easy-to-replace finger strap assembly to help improve hygiene and prevent the spread of germs.
    Full Shift Power
    The RS4000 draws very little power from the wearable mobile computer, preserving plenty of power for full shift operation on a single charge.

    Connectivity : Corded
    Scanner Type : 1D Laser
    Form Factor : Ring
    Scanner Includes : Corded Kit [Cable]
    Scan Pattern : Single Line
    Scan Range : Long Range


    Specifications

    Physical and Environmental Characteristics

    Dimensions1.9 in. H x 1.4 in. W x 1.9 in. D
    4.8 cm H x 3.6 cm W x 4.8 cm D
    Weight2.0 oz./56.7 g
    Current92 mA typical/121 mA max (one LED on)
    Standby Current12 μA typical/60 μA max
    Battery BackupRechargeable UPS battery for operation during power loss; internal rechargeable battery for multiple months of real-time clock backup
    Voltage3.1 VDC to 3.6 VDC
    Performance Characteristics
    Light Source650nm LASER 1.7mW peak power
    Scan Rate92 min., 104 typical, 116 max. scans/sec (bi-directional)
    Yaw1± 40° from normal
    Roll2
    ± 35° from vertical
    Pitch3
    ± 65° from normal
    User Environment
    Operating Temp.
    -22° to 122° F/-30° to 50° C
    Storage Temp.
    -25° to 160° F/-40° to 70° C
    Humidity
    5% to 95% non-condensing
    Ambient Light ImmunityTolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED: 450 Ft. Candles (4,844 Lux) Sunlight: 10000 Ft .Candles (107,640 Lux) Note: LED lighting with high AC ripple content can impact scanning performance
    Environmental Sealing
    IP54
    Footnotes
    1 – Skew (Yaw): Controlled by rotating the wrist from left to right or vice versa
    2 – Roll (Tilt): Controlled by rotating the wrist clockwise or counterclockwise
    3 – Pitch: Controlled by dropping or raising the wrist
