Specifications
|

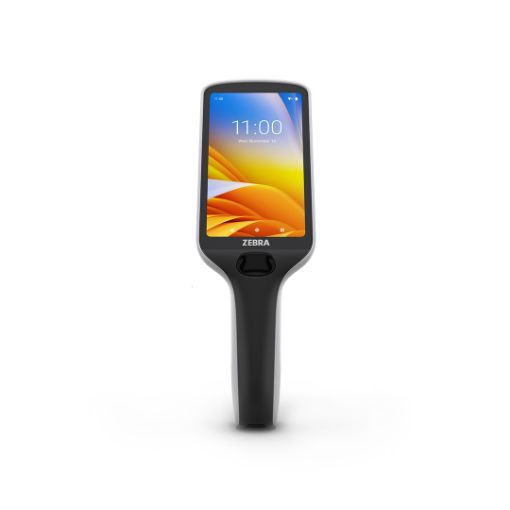

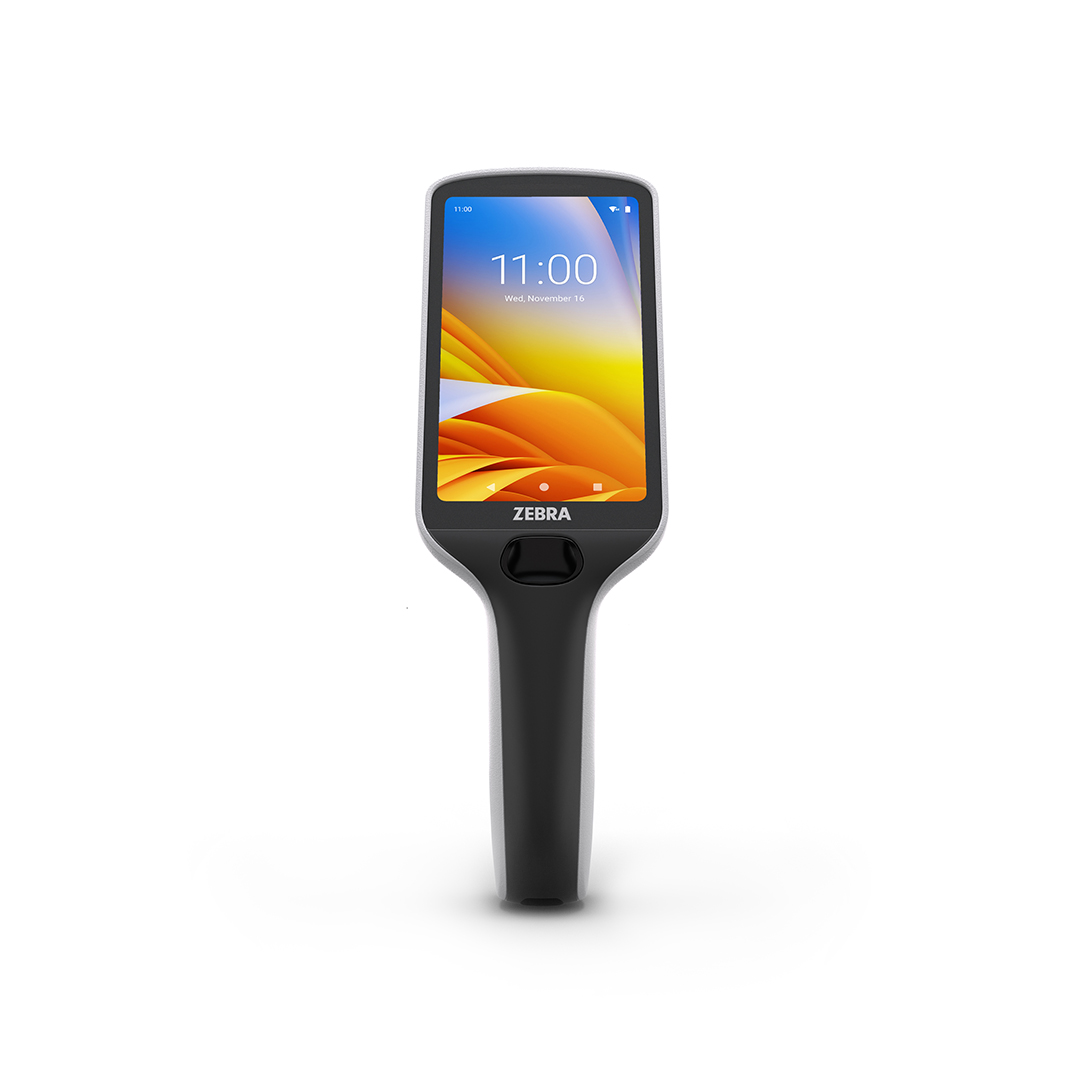

ZEBRA PS30 |
| Dimensions |
0.76 in. H x 8.52 in. L x 2.83 in. W
19.4 mm H x 216.5 mm L x 72 mm W |
| Weight |
Standard: 9.95 oz./282 g |
| Display |
4.7 inch color HD (1280x720); optically bonded to touch panel glass; 540 NITS |
| Touch Panel |
Corning Gorilla Glass; capacitive multi-touch |
| Imager Window |
Corning Gorilla Glass |
Interface/
Communications |
USB 2.0 Client Cable for device maintenance |
| Voice and Audio |
One (1) microphone and two (2) speakers for voice query and assistance |
| Notifications |
Audible tone; multi-color LED; haptic feedback |
| Button |
1 dedicated scan button |
| Performance Characteristics |
| CPU |
Qualcomm™ QCS4490 Kryo octa-core; 2.4 GHz |
| Operating System |
Android; for supported Android versions, visit:
www.zebra.com/android-versions |
| Memory |
6 GB RAM/64 GB Flash |
| Power |
PowerPrecision+ 3500 mAh capacity Li Ion rechargable battery |
| Security |
Common Criteria certified (ISO 15408); Verified Boot; Secure Boot |
| User Environment |
|
| Operating Temp. |
14° F to 122° F/-10° C to 50° C |
| Storage Temp. |
-40° F to 158° F/-40° C to 70° C |
| Humidity |
5% - 95% non condensing |
| Drop Spec. |
Multiple 4 ft./1.2 m drops to concrete across the entire operating temperature range |
| Tumble Spec. |
1,000 1.64 ft./0.5 m tumbles at room temperature |
| Sealing |
PSS Casual Spill |
| Disinfectant Ready |
Advanced chemical resistant plastics built to withstand frequent cleanings with a wide selection of disinfectants. For information on Zebra-approved disinfectants and guidelines on cleaning, please visit:
www.zebra.com/ps30 |
| Vibration |
2g peak, 5 Hz to 2 kHz, 1 hour duration per axis; Random: 0.02g²/hz, 20hz to 2khz; 1 hour duration per axis |
| Electrostatic Discharge (ESD) |
+/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge |
| Data Capture |
|
| Scanning |
SE4710 1D/2D imager with hands-free scanning and Digimarc support |
| Light Source |
Red LED Illumination with LED dot aim pattern |
| NFC |
Plus model only: NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support – Front Tap NFC for optimized contactless payment, VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK |
| Interactive Sensor Technology |
3-axis accelerometer; gyroscope; magnetometer; barometer (pressure sensor); proximity sensor for handsfree scan trigger2 |
| Wireless LAN |
|
|
Radio
|
IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2x2
MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz); Wi-Fi
CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous;
IPv4, IPv6 |
| Data Rates |
2.4 GHz: 802.11b/g/n/ax — 20 MHz - up to 286.8 Mbps
5 GHz: 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps 6 GHz:802.11ax — 20 MHz, 40 MHz, 80 MHz,
160MHz — up to 2402 Mbps |
| Operating Channels (depending on Regulatory) |
Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8,
9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz):
36, 40, 44, 48, 50, 52, 56, 60, 64, 100, 104, 108,
112, 114, 116, 120, 124, 128, 132, 136, 140, 144, 149,
153, 157, 161, 165; Channel 1-233 (5925-7125 MHz);
Channel Bandwidth: 20, 40, 80, 160 MHz. Actual
operating channels/frequencies and bandwidths
depend on regulatory rules and certification
agency |
| Security and Encryption |
WEP (40 or 104 bit); Enhanced Open (OWE); WPA/
WPA2 Personal (TKIP and AES); WPA3 Personal
(SAE); WPA/WPA2 Enterprise (TKIP and AES);
WPA3 Enterprise (AES); EAP-TTLS (PAP, MSCHAP,
MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2,
PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3
Enterprise 192-bit mode (GCMP256) - EAP-TLS |
| Certifications |
Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED n;
Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (Wi-Fi 6E);
WPA2-Personal; WPA2-Enterprise; WPA3-Personal
WPA3-Enterprise (includes 192-bit mode);
Protected Management Frames: Wi-Fi Enhanced
Open; WMM (Wi-Fi Multimedia); WMM-Power Save
WMM-Admission Control; Voice-Enterprise:
Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS
Management; Wi-Fi Optimized Connectivity;
Passpoint |
| Fast Roam |
802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC |
| Wireless PAN |
|
|
Bluetooth
|
Class 2, Bluetooth v5.3; Bluetooth Low Energy (BLE) |
