| Physical Characteristics |

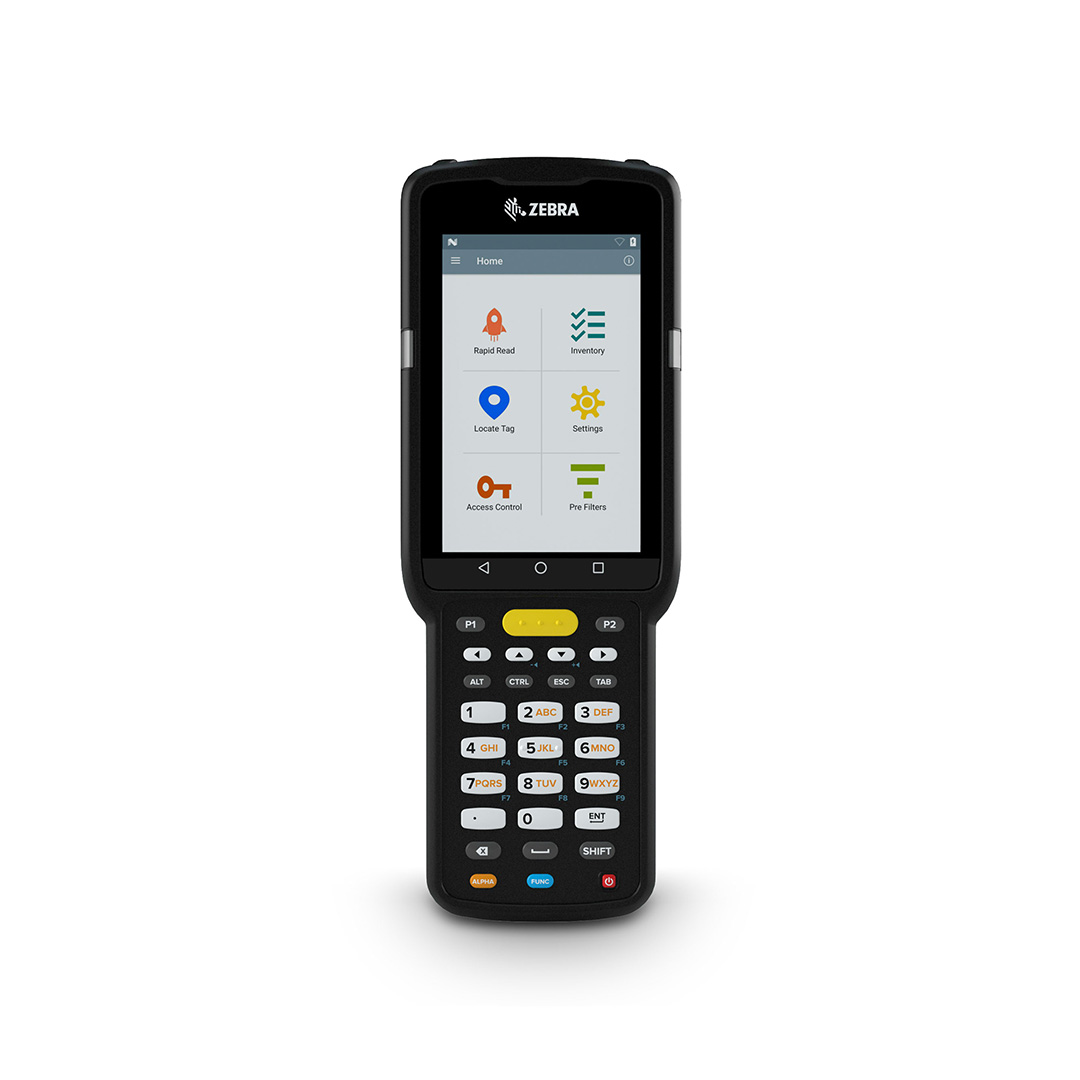

ZEBRA MC3330 |
| Dimensions |
6.45 in. L x 2.95 in. W x 8.31 in. D
164 mm L x 75 mm W x 211 mm D |
| Weight |
24 oz./680 g (with handstrap) |
| Display |
4-inch (800 x 480) WVGA; color display |
| Imager Window |
Corning Gorilla Glass |
| Touchpanel |
Corning Gorilla Glass touch panel with air gap; supports dual input mode with finger, gloved finger and stylus (conductive stylus sold separately) |
| Backlight |
LED backlight |
| Expansion Slot |
User accessible MicroSD with 32 GB SDHC and up to 512 GB SDXC |
| Network Connections |
USB 2.0 High Speed (host and client), WLAN and Bluetooth |
| Notification |
Side LEDs and audible tone |
| Keypad |
Numeric (29 key), Function Numeric (38 key),
Alpha Numeric (47 key) |
Voice
|
PTT Express and Workforce Connect PTT Pro (Internal speaker, microphone and Bluetooth wireless headset support) |
| Audio |
Built-in speaker and microphone |
| Performance Characteristics |
|
| CPU |
Qualcomm SnapdragonTM 660 octa-core 2.2 GHz |
| Operating System |
Upgradeable to Android 14 |
| Memory |
4 GB RAM/32 GB Flash Memory |
| Power |
All models ship with rechargeable Li-Ion, 3.6V, 7000mAh PowerPrecision+ battery; full charge under five (5) hours; hot swap support with temporary WLAN/Bluetooth session persistence
Backwards compatibility with 5200mAh (2X) batteries
|
| User Environment |
|
| Operating Temp. |
-4° F to 122° F/-20° C to 50° C |
| Storage Temp. |
-40°F to 158°F/-40°C to 70°C |
Humidity
|
5% to 95% RH (non-condensing) |
Drop Specifications
|
Multiple 5 ft./1.5 m drops to concrete over the entire operating temperature range |
Tumble Specification
|
1,000 1.6 ft./0.5 m tumbles |
Sealing
|
IP54 |
Vibration
|
Sine: 4g’s peak, 5hz to 2khz,
Random: .04g²/hz, 20hz to 2khz |
Thermal Shock
|
40° F to 158° F/-40° C to 70° C |
Electrostatic
Discharge (ESD) |
+/- 15kV air, +/-8kV contact discharge
+/-8kV indirect contact discharge |
Interactive Sensor Technology (IST)
|
|
| Motion Sensors |
3-axis accelerometer with MEMS gyroscope |
| RFID |
|
Standards Supported
|
EPC Class 1 Gen2; EPC Gen2 V2; ISO-18000-63 |
RFID Engine
|
Zebra Proprietary Radio Technology |
Fastest Read Rate
|
900+ tags/sec |
Nominal Read Range
|
~19.7+ ft./~6+ m |
RFID Power Output
|
0 dBm to +30 dBm |
| RFID Antenna Type |
Integrated Circular Polarized |
| Frequency Range |
865-928MHz
*Specific regional and country settings supported upon country selection |
Barcode Scanning
|
|
Scan Engine
|
SE4770 with LED Aimer |
Wireless LAN
|
|
Radio
|
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v2/w/mc2;
Wi-Fi™ certified; IPv4, IPv6, 2x2 MU-MIMO |
Data Rates
|
5GHz: 802.11a/n/ac — up to 866.7 Mbps
2.4GHz: 802.11b/g/n — up to 300 Mbps |
Operating Channels (depending on Regulatory)
|
Channel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13
Channel 36-165 (5180-5825 MHz): 36,40,44,48,52 56,60,64,100,104,108,112,116,120,124,128,132,136,140,144,149,153,157,161,165
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency.
|
Security and Encryption
|
WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit Mode (GCMP-256) — EAP-TLS; Enhanced Open (OWE) |
Certifications
|
WFA (802.11n, WMM-PS, 801.11ac, PMF); Wi-Fi Direct WMM-AC, Voice Enterprise |
Fast Roam
|
PMKID caching; Cisco CCKM; 802.11r; OKC |
Wireless PAN
|
|
Bluetooth
|
Class 2, Bluetooth v5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support |
Accessories
|
Single slot cradle with spare battery charger; 4-slot charge only cradle with 4-slot battery charger; 4-slot Ethernet cradle with 4-slot battery charger; 5-slot charge only cradle; 5-slot Ethernet cradle |
Regulatory
|
|
EMI/EMC
|
FCC Part 15 Subpart B Class B; ICES 003 Class B; EN 301 489-1; EN 301 489-3; EN 55024; EN 55032 Class B |
Electrical Safety
|
UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1, EN 60950-1 |
RF Exposure
|
EU: EN 50364, EN 62369-1, EN 50566, EN 62311
USA: FCC Part 2, 1093 OET Bulletin 65
Supplement ‘C’
Canada: RSS-102 |
Environmental Compliance
|
Environment
• RoHS Directive 2011/65/EU; Amendment 2015/863
• REACH SVHC 1907/2006
A complete list of product and materials compliance, please visit:
www.zebra.com/environment |
Warranty
|
Subject to the terms of Zebra’s hardware warranty statement, the MC3330xR is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit:
www.zebra.com/warranty |
Recommended Services
|
Zebra OneCare Essential and Select: Maximize Zebra device availability, device value and operational efficiency with these fully-featured support services that set the industry bar for support.
Zebra VisibilityIQ™ Services: Improve device value with Zebra’s optional VisibilityIQ™ Services. VisibilityIQ gives the data-driven, actionable insight to get the most from your devices, workers and daily tasks. VisibilityIQ™ Foresight aggregates big data onto a single, color-coded, cloud-based pane of glass, translating it into actionable insight to streamline workflow. VisibilityIQ™ DNA provides a view into key DNA tools, and VisibilityIQ™ OneCare® cloud-based dashboard offers visibility into repairs, tech support, software security status and more.
|
Footnotes
|
1. Based on Zebra test results from specific use cases
Specifications subject to change without notice. |
|
|
Mobility DNA solutions help you get more value out of our mobile computers by adding functionality as well as simplifying deployment and management of our mobile devices. For more information on these Zebra-only features, please visit
www.zebra.com/mobilitydna
Mobility DNA is available on Android only. Features may vary by model and a Support Contract may be required. To learn what solutions are supported, please visit
https://developer.zebra.com/mobilitydna
|
