Specifications
|

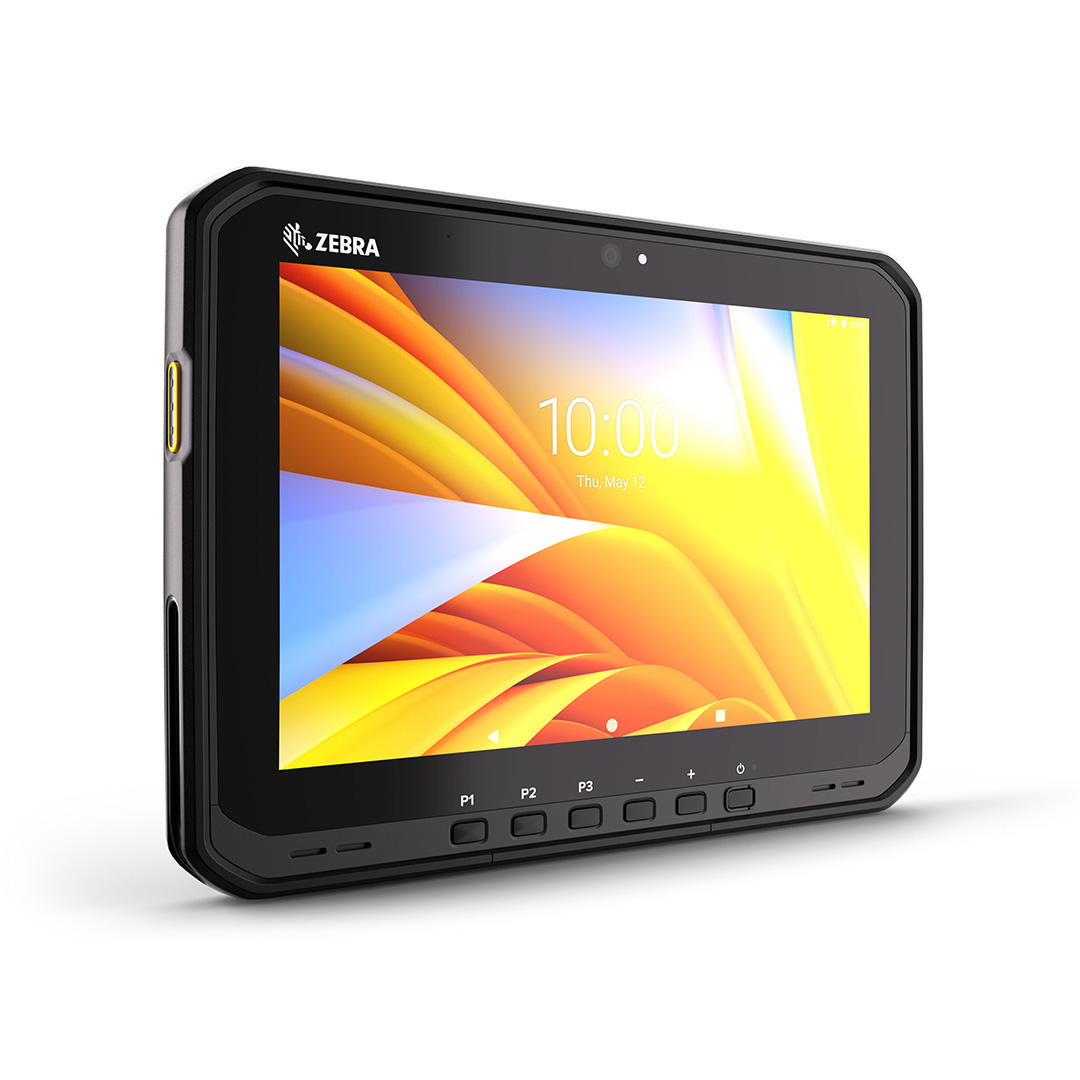

ZEBRA ET6x Series |
| Physical Characteristics |
|
| Dimensions |
10.8 in. W x 7.8 in. L x 0.7 in. H
275 mm W x 199 mm L x 18.3 mm H |
| Weight |
2.3 lbs/1,074 g |
| Display |
10.1 in. WUXGA (1920 x 1200)—1,000 nits; optically bonded to touchpanel |
| Touchpanel |
Multi mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately); Corning® Gorilla® Glass; Water droplet rejection; fingerprint resistant anti-smudge coating |
| Expansion Slot |
User accessible MicroSD card; supports up to 2 TB |
| Connectivity |
2 x USB 3.1 Type A Ports; 1 x USB 3.1 Type C Port (with DisplayPort 1.2 support) |
| Interface Ports and Expansion |
Docking connector (charge and data); Keyboard
connector; 1 x USB 2.0 (back I/O - host only) |
| Notifications |
Audible tone; 2x multi-color LEDs |
| Audio |
Stereo speakers and two microphones; audio headset supported through USB port or Bluetooth; speaker/microphone support |
| Buttons |
Power; Scan; Up/Down (volume or brightness); three programmable keys |
| External Scanner Support |
HID via USB and Bluetooth®; SSI via USB and Bluetooth for DS/LI 36XX, RS5100 and RS6100 |
| Performance Characteristics |
|
| CPU |
Qualcomm® 6490 octa-core; 2.7 GHz |
| Operating System |
Upgradeable to Android 16 |
| Memory |
8 GB RAM/128 GB UFS Flash |
| User Environment |
|
| Operating Temp. |
Standard battery: -4° F to 131° F/-20° C to 55°
Extended battery: -22° F to 131° F/-30° C to 55° C
No-battery configurations: -22° F to 140° F/-30° C to 60° C |
| Storage Temp. |
-40° F to 158° F/-40° C to 70° C |
| Humidity |
5% to 95% non-condensing (standard); 5% to 95% condensing (freezer version with heated touch screen) |
| Drop Specifications |
5 ft./1.5 m drop to concrete exceeds MIL-STD-810H |
Sealing
|
IP66 per IEC 60529 |
Vibration
|
MIL-STD-810H Method 514.8 Operating, MIL-STD-810H Method 514.8 E-1 Minimum Integrity 7.7 Grms non-operating |
Thermal Shock
|
-40° F to 158° F/-40° C to 70° C |
Electrostatic Discharge
|
± 15kV air discharge; ± 8 kV contact; ± 8 kV indirect |
Salt Fog
|
48 hour of 5% solution at 95° F/35° C |
Solar Radiation
|
EN/IEC 60068-2-5 solar radiation spectral energy distribution; 1120 W/m2 at display surface; environmental temperature: 104° F/40° C; irradiation duration: 24 hours |
Impact
|
Steel ball (130 g) dropped from 75 cm height |
Hazardous Location Certification
|
Class 1 Division 23 |
Power
|
|
Charging
|
Through USB Type-C (USB PD3.0 compatible) port or optional dock |
Battery
|
Standard capacity: 8,920 mAh
Extended capacity: 17,840 mAh
Hot Swap battery mode |
Super Capacitor
|
No-battery configurations: 5-minutes of operation4 |
Battery Run Time
|
Standard battery: 10 hours indoor (WLAN on, 50% backlight); Extended battery: 20 hours indoor (WLAN on, 50% backlight)4 |
| Battery Charge Time |
Standard battery: 2.5 hrs from 4% to 80% with 45 W power supply; Extended battery:
5.5 hrs from 4% to 80% with 45 W power supply |
| Sensors |
|
| Ambient Light Sensor |
Automatically adjusts display brightness |
| Magnetometer |
eCompass |
| Motion Sensor |
3-axis gyroscope; 3-axis accelerometer |
Humidity Sensor
|
Control input for display heating |
Data Capture
|
|
Optional Scanner
|
SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology |
Rear Camera
|
16 MP autofocus; flash LED generates balanced white light |
Front Camera
|
8 MP; mechanical privacy shade |
Camera Scanning
|
1D/2D barcodes; optional OCR for documents, license plates, VINs and more |
Wireless LAN
|
|
Radio
|
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2x2 MU-MIMO; Wi-Fi 6E (802.11ax); Wi-Fi™ certified; Wi-Fi™ 6E Certified; Dual Band Simultaneous; IPv4, IPv6 |
Data Rates
|
6 GHz: 802.11ax - 20 MHz, 40 MHz, 80 MHz,
160 MHz - up to 2402 Mbps; 5 GHz: 802.11a/n/ac/ax - 20 MHz, 40 MHz, 80 MHz, 160 MHz - up to 2402 Mbps; 2.4 GHz: 802.11b/g/n/ax - 20 MHz - up to 286.8 Mbps |
Operating Channels
|
Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth: 20/40/80/160 MHz;
Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency. |
Security and Encryption
|
WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES)—EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit mode
(GCMP256) - EAP-TLS; Enhanced Open (OWE) |
Fast Roam
|
PMKID caching; 802.11r (Over-the-Air); OKC |
Certifications
|
Wi-Fi Alliance Certifications
Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6; Wi-Fi Enhanced Open; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; Wi-Fi Direct |
Wireless WAN (ET65 only)
|
|
SIM Slots
|
1 x eSIM, 1 x Nano SIM |
Frequency Bands
|
5G FR1: n1/2/3/5/7/8/12/13/14/20/25/26/28/29/30/38/40/
41/48/66/71/77/78
4G: B1/2/3/4/5/7/8/12/13/14/17/20/25/26/28/29/30/38/39/40/
41/42/43/46/48/66/71
3G: B1/2/4/5/8 |
LTE/5G Private Networking
|
Supported |
GNSS
|
GPS, GLONASS, Galileo, Beidou, QZSS Dual-Band GNSS—concurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA |
Wireless PAN
|
|
Bluetooth
|
Bluetooth v5.2 Class 1, Bluetooth Low Energy (BLE) |
NFC
|
ISO 14443 Type A and B; FeliCa and ISO 15693 cards |
