| Physical Characteristics | |
| Dimensions | Scanner
0.9 in. H x 1.8 in. W x 4.3 in. D
2.3 cm H x 4.6 cm W x 10.9 cm D
Standard Cradle
4.5 in. H x 3.1 in. W x 4.2 in. D
11.3 cm H x 7.8 cm W x 10.7 cm D |
| Weight | Corded CS60: 2.0 oz. / 56.0 g
Cordless CS60: 2.9 oz. / 83.0 g
Standard Cradle: 4.9 oz. / 138.0 g |
| Input Voltage Range | Scanner and standard cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| Current | Operating current at nominal voltage (5.0V): 400 mA (typical)
Standby current (idle) at nominal voltage (5.0V): 90 mA (typical)
Standard Cradle: 450 mA (typical) Standard USB; 600 mA (typical) BC 1.2 USB |
| Color | Midnight black |
| Supported Host Interfaces | USB Certified |
| Keyboard Support | Supports over 90 international keyboards |
| FIPS Security Certification and TAA Compliance | Certified Compliant with FIPS 140-3;
Trade Agreement Act Compliant (specific configuration required) |
| User Indicators | Direct Decode Indicator, Good Decode LEDs, beeper (adjustable tone and volume), haptic feedback on decode, capacitive trigger with haptic and audible feedback, dedicated battery gauge, dedicated Bluetooth LED |
| Performance Characteristics | |
| Motion Tolerance (handheld) | Up to 20 in. / 51 cm per second for 13 mil UPC in optimized mode |
| Light Source | Aiming Pattern: circular 525nm true green LED |
| Illumination | (1) warm white LED |
| Imager Field of View | 45° H x 34° V nominal |
| Image Sensor | 1280 x 960 pixels |
| Minimum Print Contrast | 20% Minimum Reflective Distance |
| Skew Tolerance | +/- 60° |
| Pitch Tolerance | +/- 60° |
| Roll Tolerance | 0° - 360° |
Minimum Element Resolution
| Code 39 - 5.0 mil
|
User Environment
| |
Operating Temp.
| 32° F to 122° F / 0° C to 50° C
|
Storage Temp.
| -40° F to 158° F / -40° C to 70° C |
Humidity
| 5% to 95% RH, non-condensing |
Drop Specification
| Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete |
Tumble Specification
| Designed to withstand 250 tumbles in 1.5 ft./0.5 m tumbler (1 tumble = 0.5 cycle) |
Sealing
| Scanner: IP65 |
Electrostatic Discharge (ESD)
| Scanner and cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
Ambient Light Immunity
| 0 to 10037 foot candles / 0 to 108,000 Lux |
| Radio Specifications | |
| Bluetooth Radio | Standard Bluetooth Version 5.0 with BLE: Class 1 330ft. (100m) and Class 2 33ft. (10m), Serial Port and HID Profiles |
Adjustable Bluetooth Power
| Output power adjustable down to negative 10 dBm in 8 steps |
| MFi | MFi Certified (specific configuration required) |
| Battery | |
| Battery Capacity/Type | 745 mAh Lithium Polymer battery |
| Scans Per Battery Charge2 | 13,000 scans |
| Operating Time Per Full Charge2 | 18 hours |
| Battery Charge Time (from empty) | |
| Standard USB | Full Charge: 6 hours |
| BC1.2 USB | Full Charge: 3 hours |
| Regulatory | |
| Environmental | EN 50581:2012
EN IEC 63000:2018 |
| Electrical Safety | IEC 62368-1 (Ed.2)
EN 62368-1:2014/AC:2015 |
| LED Safety | IEC 62471:2006 (Ed.1.0)
EN 62471:2008 (LED) |
| EMI/RFI | EN 55032:2015/AC:2016 (Class B)
EN 55035:2017
EN 61000-3-2:2014 (Class A)
EN 61000-3-3:2013
47 CFR Part 15, Subpart B, Class B |
Accessories
| |
Cordless Accessories
| Standard cradle, spare battery, 4-slot scanner ShareCradle, 4-slot battery ShareCradle, lanyard, Qi Pad
|
Corded Accessories
| Gooseneck Intellistand (weighted and standard), cup, corded USB converter
|
Symbol Decode Capability4
| |
1D
| Base 32 (Italian Pharma), Codabar/NW7, Code 11, Code 39, Code 93, Code 128, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI Plessey, UPC/EAN
|
2D
| Aztec, Composite Codes, DataMatrix, Dotted DataMatrix, Dotcode, Han Xin, MaxiCode, PDF417, Micro PDF417, Postal Codes, QR Code, Micro QR, TLC-39, SecurPharm
|
OCR
| OCR-A, OCR-B, MICR, US Currency |
Decode Ranges (Typical)3
| |
Symbology/Resolution
| Near/Far |
Code 39: 5 mil
| 2.4 in./6.1 cm to 9.5 in./24.1 cm
|
Code 39: 20 mil
| 2.5 in./6.4 cm to 26.0 in./66.0 cm
|
Code 128: 5 mil
| 2.8 in./7.1 cm to 9.0 in./22.9 cm
|
PDF 417: 6.7 mil
| 2.4 in./6.1 cm to 8.0 in./20.3 cm
|
UPC: 13 mil (100%)
| 1.8 in./4.6 cm to 19.5 in./49.5 cm |
Data Matrix: 10 mil
| 2.9 in./7.4 cm to 8.0 in./20.3 cm
|
QR: 20 mil
| 1.2 in./3.0 cm to 14 in./35.6 cm |
Environmental Compliance
| Environment
• RoHS Directive 2011/65/EU; Amendment 2015/863
• REACH SVHC 1907/2006
For a complete list of product and materials compliance, please visit
www.zebra.com/environment
|
Warranty

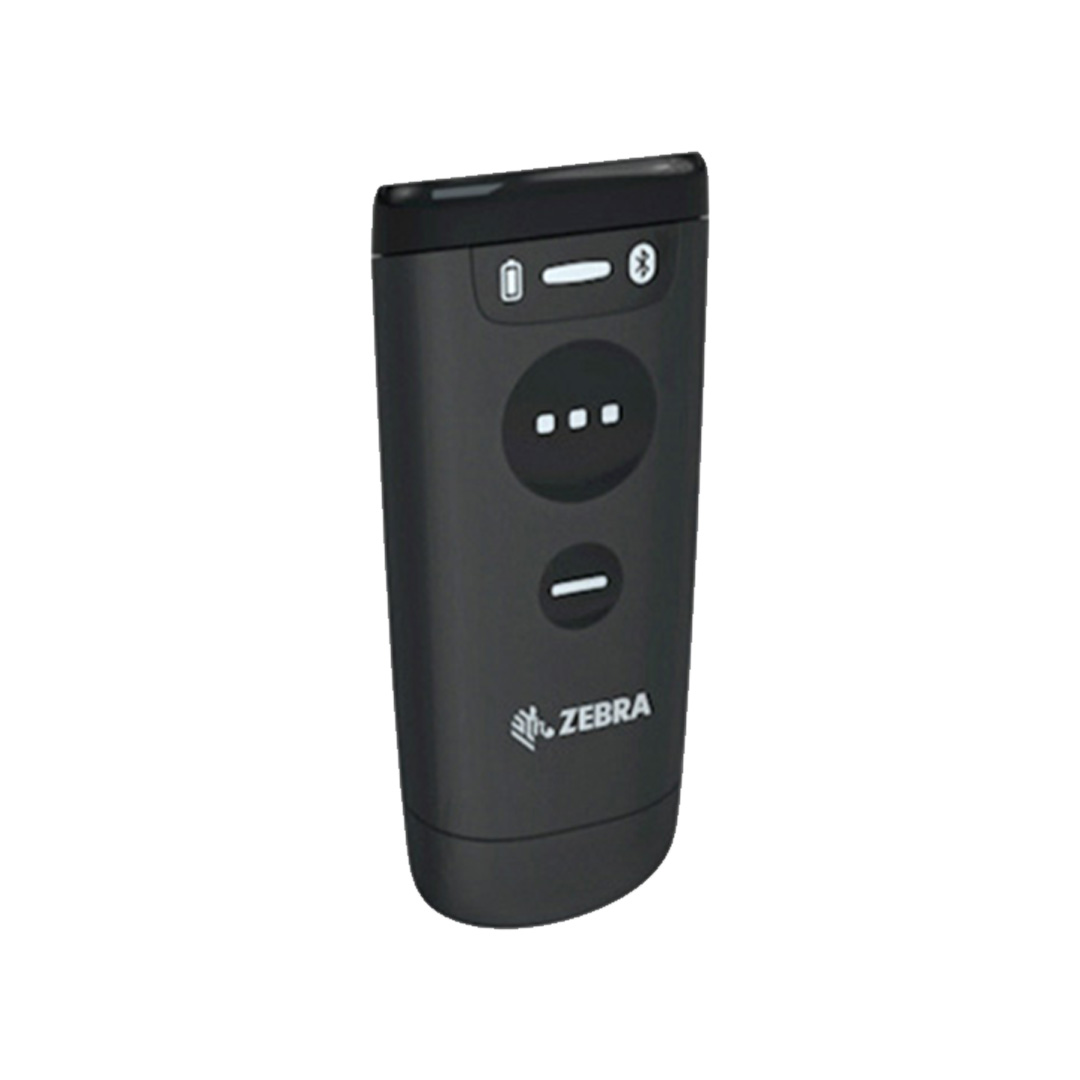

| Subject to the terms of Zebra’s hardware warranty statement, the CS6080 scanner and CR6080 cradle are warranted against defects in workmanship and materials for a period of Three Years from the date of shipment. The CR6080 Qi Pad is warranted against defects in workmanship and materials for a period of One Month from the date of shipment. For complete Zebra hardware warranty statement, please visit www.zebra.com/warranty
|
Recommended Services
| Zebra OneCare Essential and Select: Maximize Zebra device availability, device value and operational efficiency with these fully-featured support services that set the industry bar for support.
|
Footnotes
| 1. Contactless inductive charging is supported when a battery is inserted in the CS60. Spare batteries and battery chargers have charging contacts and cannot be charged with a wireless charge pad.
2. Simulated checkout profile of 1 scan every 5 seconds.
3. Printing resolution, contrast, and ambient light dependent.
4. Refer to Product Reference Guide for complete list of symbologies. |
DataCapture DNA
| DataCapture DNA is a suite of highly intelligent firmware, software, utilities and apps exclusively engineered to add functionality and simplify the deployment and management of Zebra scanners. For more information about DataCapture DNA and its applications, please visit
www.zebra.com/datacapturedna |
