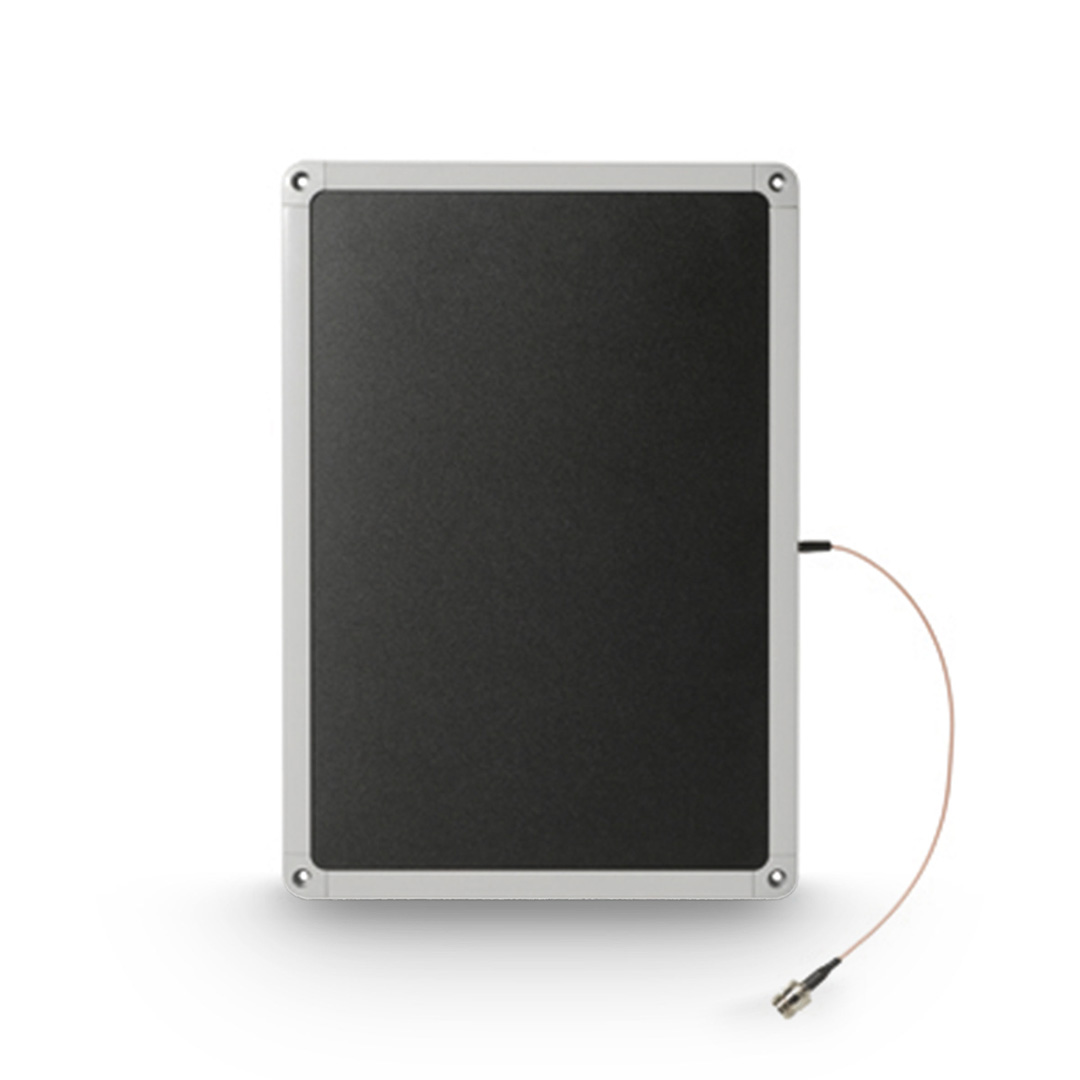

    Zebra AN620 RFID Antenna

    Manufacturer: ZEBRA
    Zebra AN620 RFID Antenna feature a simple, intergrated mounting system that lets them stand just under one-half inch (12mm) from horizontal or vertical mounting surfaces. The outer housing is designed to be sleek and discreet enough to be at home in any business setting but rugged enough for indoor industrial environments.
    SKU: เครื่อง/Set



    Call for pricing
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Zebra AN620 RFID Antenna
    AN620 feature a simple, intergrated mounting system that lets them stand just under one-half inch (12mm) from horizontal or vertical mounting surfaces. The outer housing is designed to be sleek and discreet enough to be at home in any business setting but rugged enough for indoor industrial environments.

    • POS or Endcap Displays
    • Below Counter or Above Counter RFID Pad
    • Ceilings and Walls to Create Superior Read Zones around Shelves
    • Indoor Manufacturing Environment

    Zebra AN620 RFID Antenna

    • Dimensions :15.39 in. L x 10.82 in. W x 0.47 in. D 391 mm L x 275 mm W x 12 mm D
    • Connectors :Type “N” female
    • Weight :2.2 lbs./ 1.0 Kg
    • Frequency Range :864-868 MHz (EU Version) 902-928 MHz (US Version)
    • Gain :4.0 dBiL
    • Front to Back Ratio :22 dB
    • Max Power :6 watts
    • Storage Temperatures :-40° F to +158° F, -40°C to +70° C
    • Warranty :1 Year

    ZEBRA AN620 Specifications

    PHYSICAL CHARACTERISTICS
    Polarization Left-hand circular
    Dimensions 391 mm x 275 mm X 12 mm/
    15.39 in.x 10.82 in.x 0.47 in.
    Connector N-Type Female
    Connector Location Pigtail- Side
    Mounting Options Flush mount
    Weight  2.2 Ibs./1.0 kg
    Casing/Materials Aluminum with Kydex Casing
    Frequency Ranges EU: 865 - 868 MHz
    US: 902 -928 MHz
    VSWR (Return Loss) 1.4:1
    Gain 7.0 dBic
    Front to Back Ratio 22 dB
    3 dB Beam Width 75* in horizontal plane, 48* in vertical plane
    Maximum Power 6 Watts
    Axial Ratio <2dB
    Operating Temperature -20* to +55*C/-4* to +131"F
    Storage Temperature -30*to +65*C/-22* to +149F
    IP Sealing IP54
    Vibration IEC-68-2-6 (10 to 150 Hz, 0.5 g, one hour in
    each of two axes) (Random Vibration)
    Humidity IEC-68-2-30 (-13*F to 104*F, -25'C to 40*C)
    24 hour cycles of 90% relative humidity
