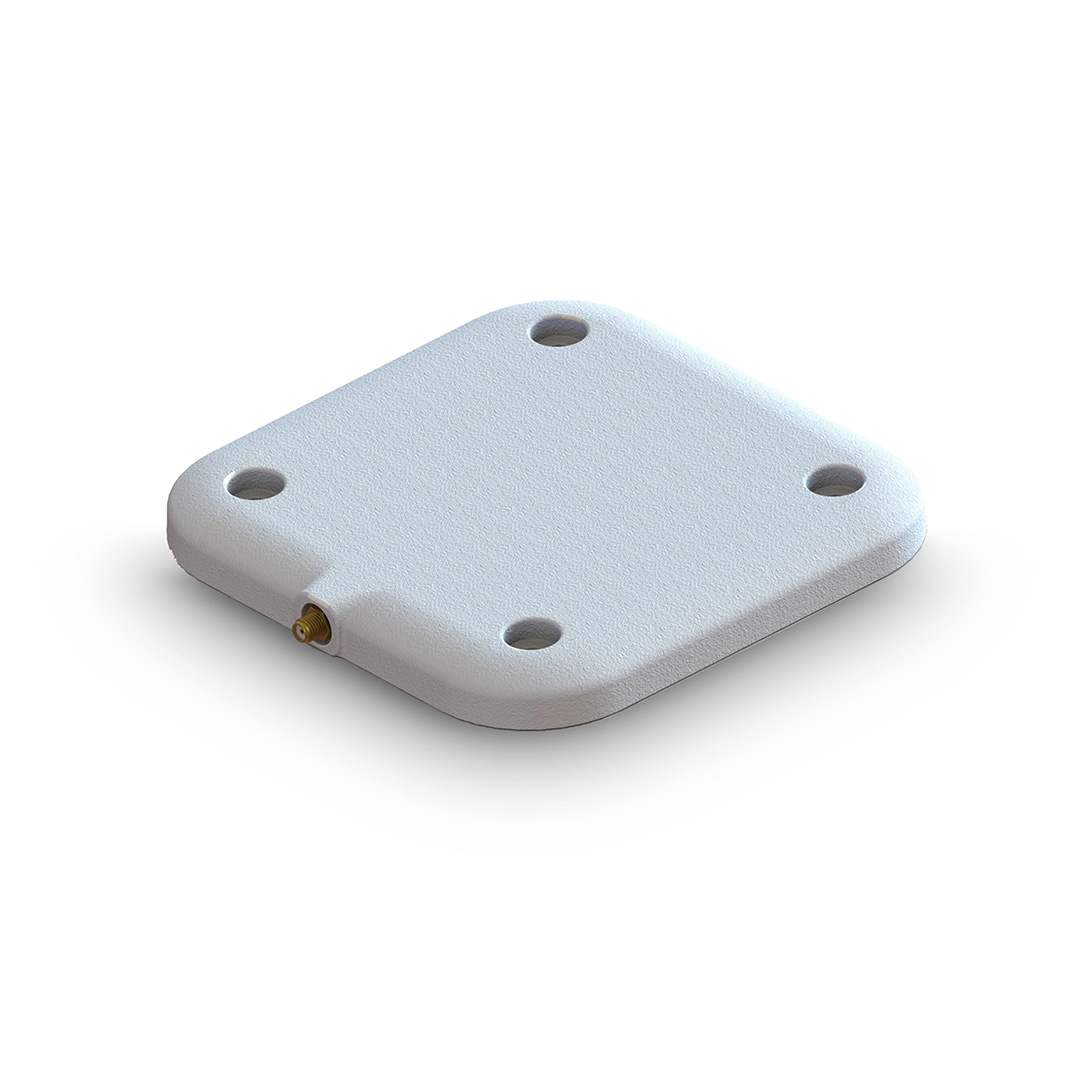

    ZEBRA AN520 Ultra-Rugged RFID Antennas

    Manufacturer: ZEBRA
    ZEBRA AN520 Ultra-Rugged RFID Antennas low profile antenna, with an IP68 rating, is suitable for use in a variety of indoor and outdoor environments that require a small form factor, high performance antenna. The outer housing is designed to be sleek and discreet enough to be integrated into any business, but rugged enough for outdoor industrial environments. The versatile flush mount blends into any location. The AN520 is compatible with the IP67-sealed, 14-inch Type N to SMA pigtail cable.
    SKU: เครื่อง/Set



    Call for pricing
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    ZEBRA AN520 Ultra-Rugged RFID Antennas

    The AN520 ultra-rugged, low profile antenna, with an IP68 rating, is suitable for use in a variety of indoor and outdoor environments that require a small form factor, high performance antenna. The outer housing is designed to be sleek and discreet enough to be integrated into any business, but rugged enough for outdoor industrial environments. The versatile flush mount blends into any location. The AN520 is compatible with the IP67-sealed, 14-inch Type N to SMA pigtail cable.

    • Industrial class, IP 67 rated
    • Wide beam-width of 115 degree for wider coverage
    • Ideal for short range applications to create targeted zones

    What is included in the package:

    • Antenna

    ZEBRA AN520 Ultra-Rugged RFID Antennas

    • FREQUENCY: 902 - 928 MHz (US)
    • POLARIZATION: RHCP
    • GAIN: 5.5 dBiC
    • VSWR: 1.4
    • FRONT TO BACK RATIO: -10 dB
    • 3DB BEAM WIDTH: 115°
    • CONNECTOR TYPE: SMA female
    • DIMENSIONS: 5.9" X 5.9"
    • WEIGHT: 0.55 lbs/0.25 kg
    • OPERATING TEMPERATURES: -13°F to +158°F, -25°C to +70°C
    • IP RATING: IP67

    AN520 Specifications

    PHYSICAL CHARACTERISTICS
    Polarization RHCP (Right Hand Circular Polarized)
    Dimensions150 mm m x 150 mm n x 14 mm / 5.9 in.x 5.9 in.x 0.55 in.
    ConnectorSMA female
    Connector LocationSide connector
    Mounting OptionsFlush mount
    Weight0.25 kg/0.55 Ibs
    Casing/Materials UV-Resistant ABS
    Frequency Ranges ETSI: 865-868 MHzFCC: 902-928 MHz
    Gain5.5 dBiC typical
    VSWR (Return Loss)
    1.4 tvpical
    Front to Back Ratio
    -10 dB
    3 dB Beam Width
    115* in both planes
    Maximum Power
    3 Watts
    Axial Ratio
    2 dB typical
    Operating Temperature
    -40* to +65*C/-40* to +149*F
    Storage Temperature
    -40* to +65*C/-40* to +149*F
    IP SealingIP68
    Vibration
    IEC60068-2-64
    Humidity
    72 Hours @ 85C relative hu umidity
