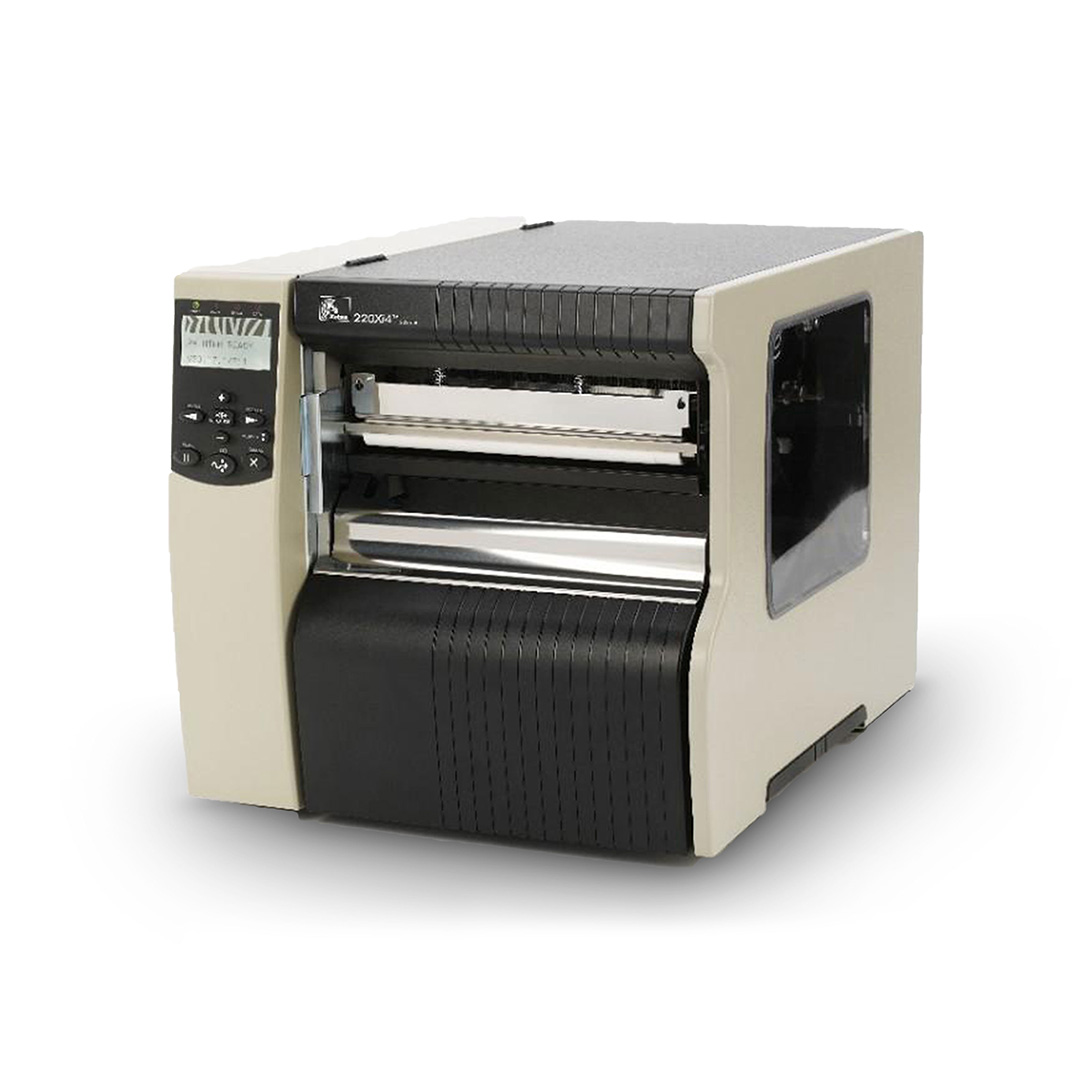

ZEBRA 220Xi4 Industrial Label Printer 203 dpi/8 dots per mm

Manufacturer: ZEBRA
Zebra 220Xi4 Industrial Printer Barcode Designed for fast printing of chemical drum and other wide-label applications, count on high-performance when you trust the rugged reliability of this thermal printer.
SKU: เครื่อง/Set



Call for pricing
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product Files

Zebra 220Xi4 Industrial Printer Barcode

Zebra’s built-to-last 220Xi4 printer is renowned for it’s incredible durability, consistently outstanding print quality, fast print speed, long life and unparalleled reliability in demanding applications. The 220Xi4 is designed for printing of labels up to 8" wide for chemical drum or other wide label applications. The ZT610 or ZT620 Industrial printers are the preferred printers for high volume print applications with a print width of less than 6.6" (168 mm).

Zebra Printer Barcode 220Xi4 Industrial Printer Barcode
printing system:    Thermal Transfer & Direct Thermal
Maximum print speed:    10”/254 mm per second (203 dpi), 6”/152.4 mm per second (300 dpi)
print length:    1.5"/38 mm (Cutter mode)
print width:    4.25” (108 mm) to 8.8” (224 mm)
local memory:    64 MB Flash memory16 MB SDRAM
connection:    USB, RS-232 Serial, Bluetooth 4.0
print resolution:    203dpi, 300dpi

Specifications

Standard Features
  • Print methods: Thermal transfer or direct thermal
  • Full-function front panel and large, multilingual, back-lit LCD display with user-programmable password protection
  • Clear media side door allows easy monitoring of supplies usage without opening the printer systems
  • 32 bit 133 Mhz RISC processor
  • 64 MB on-board linear Flash memory
  • 16 MB SDRAM Flash memory
  • Internal real-time clock
  • Advanced label/media counters
  • Dual media sensors — transmissive and reflective, selectable through software or front panel
  • Auto calibration when printer is turned on or when printhead is closed using approximately two labels
  • Early warning systems provide low label, low ribbon and clean printhead alerts via the front panel and ZebraLink alerts
  • Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
  • Communications: USB 2.0, RS-232 Serial, and bi-directional Parallel port with auto detect
  • Internal ZebraNet® 10/100 Print Server (Ethernet)
  • ENERGY STAR® qualified
Printer Specifications

Resolution203 dpi/8 dots per mm
300 dpi/12 dots per mm
Memory64 MB Flash; 16 MB RAM
Maximum Print Width8.5"/216 mm
Maximum Print Speed10"/254 mm per second (203 dpi)
6"/152.4 mm per second (300 dpi)
Media SensorsTransmissive and reflective
Media Characteristics
Media Width4.25" (108 mm) to 8.8" (224 mm)
Maximum Media Roll Size8.0" (203 mm) outside diameter on a 3" (76 mm) inside diameter core
Thickness
0.003"/0.076 mm to 0.012"/0.305 mm
Media Types
Continuous, die-cut gap, black mark, notch or hole
Minimum Non- Continuous Label Length
0.25"/6 mm (Rewind mode)
0.5"/13 mm (Peel mode)
0.7"/18 mm (Tear-off mode)
1.5"/38 mm (Cutter mode)
Ribbon Characteristics (Thermal-transfer option only)

Outside Diameter
3.2"/81.3 mm
Standard Length
1476'/450 M
984'/300 M
Width
4.25" (108 mm) to 8.6" (220 mm)
Core I.D.
1.0"/25.4 mm
Operating Characteristics

Environmental
Operating Temperature: 40°F to 105°F/5°C to 40°C
  • Thermal transfer: 40°F to 105°F/5°C to 40°C
  • Direct thermal: 32°F to 105°F/0°C to 40°C
Operating Humidity: 20% to 85% non-condensing
Storage/Transportation Temperature: -40°F to 140°F/-40°C to 60°C
Storage Humidity: 5% to 85% non-condensing
Electrical
90-264VAC; 48-62Hz
ENERGY STAR qualified (140Xi4, 170Xi4, 220Xi4)
Agency Approvals
IEC 60950-1, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
Product Markings: cTUVus, CE, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark(Arg), CCC, GOST-R, BSMI, KCC, STB, and UkrSEPRO
Physical Characteristics

Height
15.5" / 393.7 mm
Width
15.81" / 401.6 mm
Depth
20.38" / 517.5 mm
Weight
72 lbs. / 32.7 kg
Software Tools
ZebraLink Solutions
Zebra Setup Utilities — A Windows application to quickly set up and configure your Zebra printer.
ZebraDesigner™ — Simple Windows WYSIWYG label design application with basic features.
ZebraDesigner Pro — Simple Windows WYSIWYG label design application offering more advanced features for more complex label designs.
ZBI-Developer™ — Programming utility makes it dramatically easier for programmers to create and test complex ZBI 2.0™ programs and distribute them to the printer (standard with ZBI 2.0).
ZebraNet™ Bridge Enterprise — Centrally manage Zebra printers from a single PC screen anywhere on your global network.
ZebraNet Utilities v7.0 — Provides enhanced printing, conversion and administration capabilities; message management; and more.
Zebra Enterprise Connector — Print labels directly from Oracle’s BI Publisher with the Enterprise Connector and Zebra printers.
ZDesigner Windows Driver — Zebra’s powerful Microsoft certified Windows driver.
Web View
Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers.
Alert
Printers equipped with ZebraNet print servers will notify you via any email-enabled wired, or wireless device to minimize downtime.
Firmware
ZBI 2.0 — Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more.
ZPL® & ZPL II® — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.
Barcode Symbologies
Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case C Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, GS1 DataBar (RSS), Aztec
Fonts and Graphics
Unicode™-compliant Global Printing
Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
Smooth scalable font Ø (CG Triumvirate™ Bold Condensed*) is expandable dot-by-dot, height and width independent
IBM® Code Page 850 International Characters
Supports user-defined fonts and graphics — including custom logos
61 MB user-available non-volatile memory storage for downloadable objects 12 MB user-available SDRAM
Bitmap fonts A through H and GS symbols are
*Contains UFST® from Agfa Monotype Corporation
Options and Accessories
Clear media side bi-fold door–allows shorter media door opening radius Full-width rotary knife cutter and catch tray–operates under software control cutting labels individually or in strips
Media rewind spindle–rewinds finished roll internally onto 3" (76 mm) core or enables label peel and liner rewind
Applicator interface – provides status and control signals for applicators and remote control devices
Media supply spindle for 3" (76mm) core or 40mm core
Additional fonts
For optimum print quality and printer performance, use Genuine Zebra supplies. Specifications subject to change without notice.
