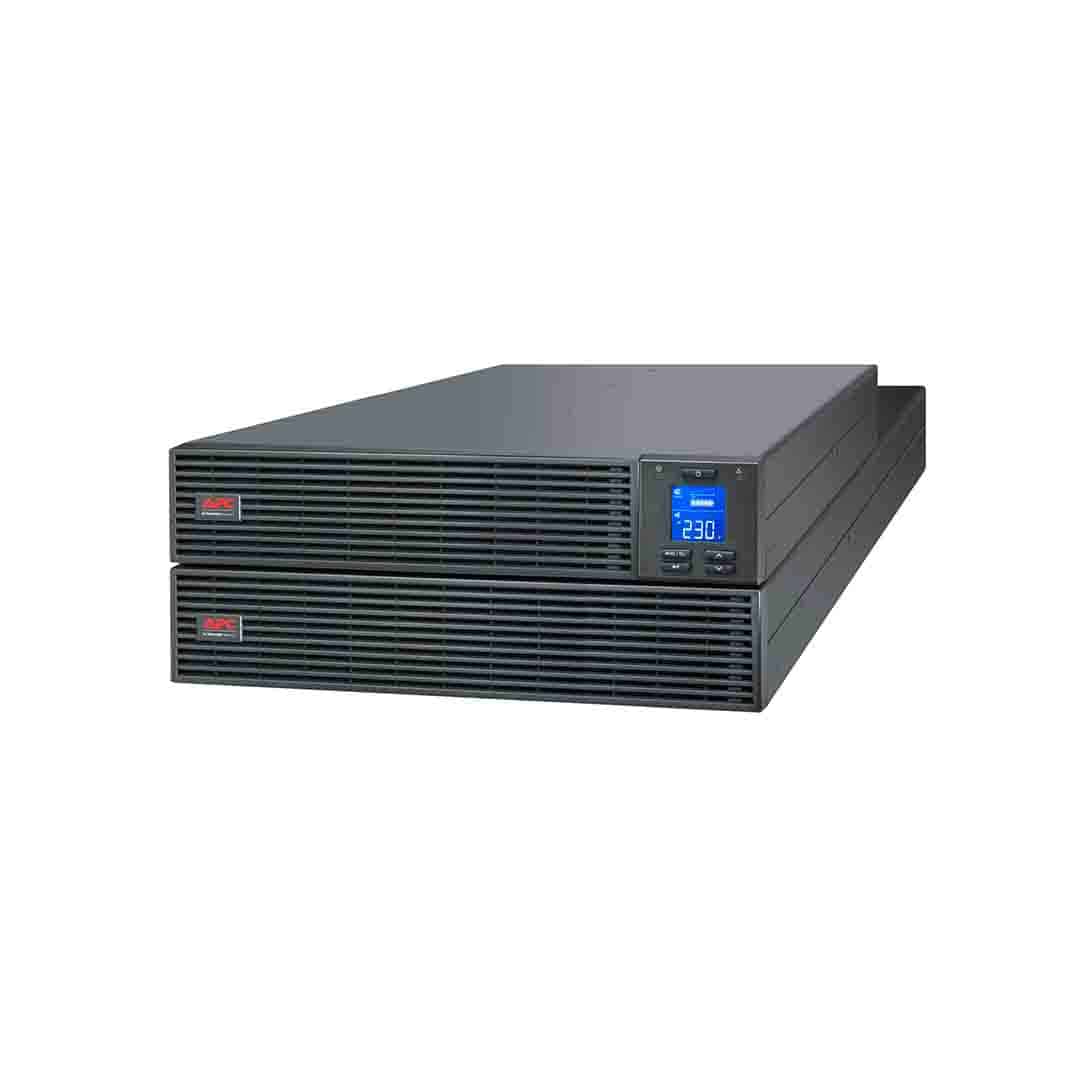

!!New APC Easy UPS SRV RM 6000VA/6.0kWatts , 230V ,with RailKit, (PN:SRV6KRIRK)

Manufacturer: APC
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions Includes: Basic UPS signalling RS-232 cable, CD with software, Rack Mounting brackets, Rack Mounting support rails, USB cable, User Manual
SKU: เครื่อง/set
฿109,580.00 incl vat



สอบถามเพิ่มเติม สั่งสินค้ากับเจ้าหน้าที่ ขอใบเสนอราคา
สนทนาแชทกับเจ้าหน้าที่ฝ่ายขายแบบสดๆในเวลาทำการ 8.00-17.00 วันจันทร์ถึงวันเสาร์





เพิ่มเพื่อนทาง LINE OFFICIAL เพื่อคุยกับพนักงานได้ตลอด 24 ชม.

Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

APC Easy UPS On-Line SRV RM 6000 VA 230V with Rail Kit

  • High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
  • Includes: Basic UPS signalling RS-232 cable, CD with software, Rack Mounting brackets, Rack Mounting support rails, USB cable, User Manual

Key Features

  • Automatic internal bypass
    Supplies utility power to the connected loads in the event of a UPS power overload or fault.
  • Automatic restart of loads after UPS shutdown
    Automatically starts up the connected equipment upon the return of utility power.
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • EPO
    Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
  • Input power factor correction
    Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Intelligent SmartSlot
    Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Serial connection
    Use your PC to access additional power protection and management features for your UPS via a serial port.
  • USB connection
    Use your PC to access additional power protection and management features for your UPS via a USB Port.

Easy UPS Features & Benefits

Features

  • Pure sine wave output on battery
    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • USB connection
    Use your PC to access additional power protection and management features for your UPS via a USB Port.
  • Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.
    Management Software
  • Safety-agency approved
    Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Serviceability

  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Predictive failure notification.
    Provides early-warning fault analysis ensuring proactive component replacement.
  • Disconnected battery notification
    Warns when a battery is not available to provide backup power.
  • Audible alarms
    Provides notification of changing utility power and UPS power conditions

Manageability

  • Network manageable
    Provides remote power management of the UPS over the network.
  • SmartSlot
    Customize UPS capabilities with management cards.
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • LED Indicators
    Provide easy-to-read status of the unit and utility power conditions.
  • Serial connectivity
    Provides management of the UPS via a serial port.
Product Specification
Brand APC
Model Name/Number SRV6KRIL
Capacity 6.0 kW / 6.0 kVA
Efficiency  94.0 %
Audible Noise 55.0 dBA
Weight 78 kg (Net),88 Kg (Shipping)
Storage Temperature  -15 to 60 Deg C
Supported Battery Types  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Waveform Sinewave
Topology Double Conversion Online
Crest Factor 3:1
Operating Temp Deg Celsius 0 to 40 Deg C
Voltage 230 V (Input/Output)
Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
Output Frequency (sync to mains)     50/60Hz +/- 3 Hz
Other Programmable Voltages  220 V,240 V
Output Connections  (1) Hard Wire 3-wire (H N + G) (Battery Backup)
Bypass Internal Bypass (Automatic and Manual)
Warranty 2 Year Repair or Replace
Typical Recharge Time 3 hrs
Humidity  0 to 95% non-condensing
Input Frequency 40 - 70 Hz
Input Connections Hard Wire 3 wire (1PH+N+G)
Input Voltage Range for Main Operations 176 - 300 V
Input Voltage Adjustable Range for Mains Operation 110 - 300 V (half load)
Battery Charge Power  502 Watt
Battery Volt-Amp-Hour Capacity  1512
Interface Ports     DB-9 RS-232,Intelligent Smart Slot,USB
Control Panel Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO) Yes
Available SmartSlot Interface Quantity   1
Surge Energy Rating     600 Joules
Maximum Height     219 mm,490 mm (Shipping)
Maximum Width  438 mm,600 mm (Shipping)
Maximum Depth   615 mm,870 mm (Shipping)
Rack Height 5U
Color Black
Operating Elevation  0-3000 meters
Storage Elevation  0-15000 meters
Protection Class  IP 20
Approvals   CE,IEC 62040-1-1,IEC 62040-1-2
RoHS  Compliant
