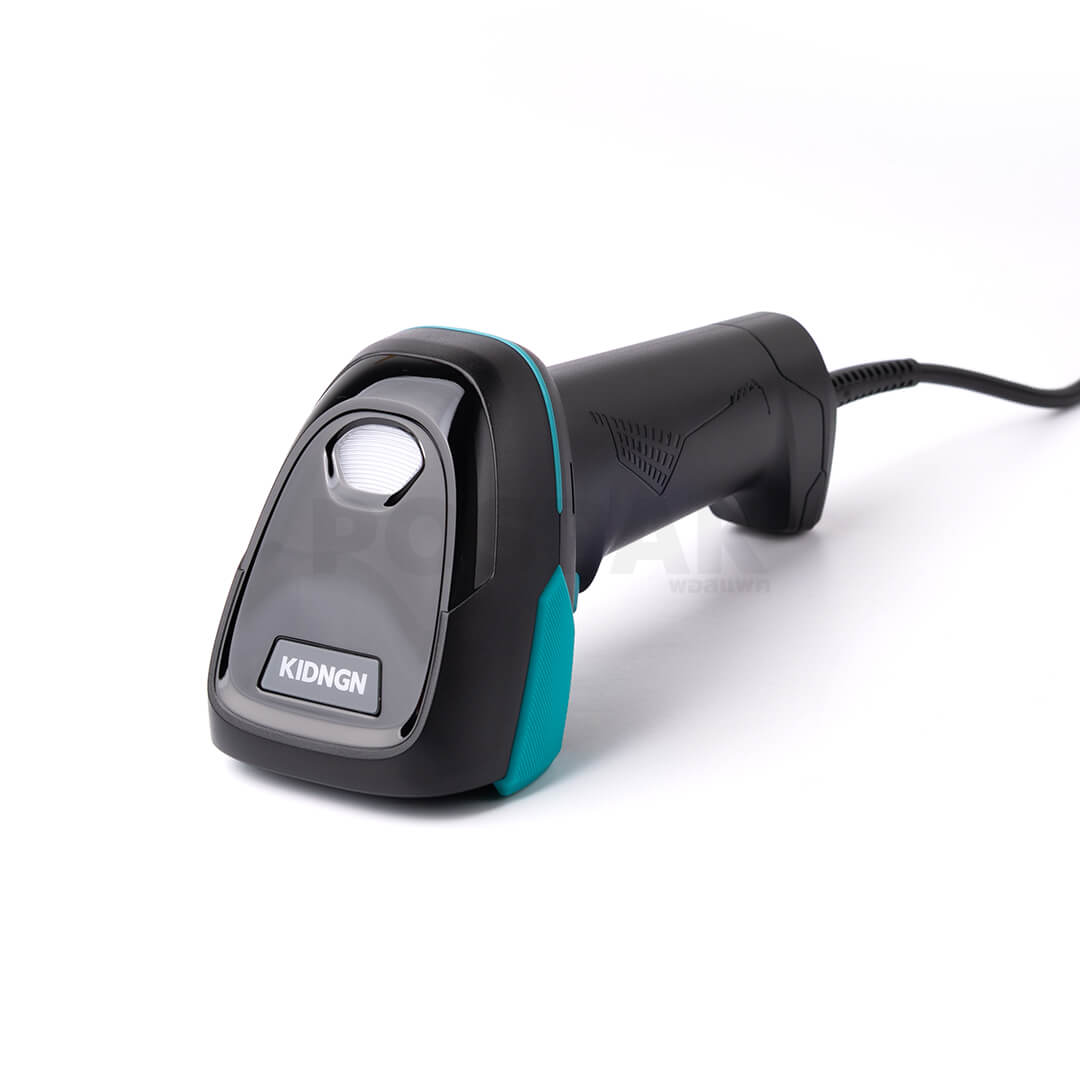

KIDNGN XB-D30 เครื่องอ่านบาร์โค้ด 2D USB ไม่รวมขาตั้ง (PN:XB-D30-U) Promotion New Product 850!!!

Using a high-performance CMOS sensor, the XB-D30 has a reading distance of up to 300 mm and a maximum scanning speed of up to 60 frames per second. Its durability allows it to withstand multiple drops from a height of 1.5 meters, and the trigger button is designed for a lifespan of over 10 million clicks.

For connectivity, the XB-D30 supports USB-HID, USB-COM, and RS232, and an SDK is available for further development. The device is compact (173 × 67 × 79 mm), lightweight (130g), and made from durable ABS+PC material. It's an ideal and cost-effective solution for retail, POS, and warehouse applications that require a high-quality barcode reader.

Specifications

• Barcode Support: Scans both 1D and 2D barcodes on paper and screens.
• Scan Speed: Up to 60 frames per second.
• Supported Barcodes:
  • 1D: Codabar, Code 39, Code 128, UPC, EAN, Interleaved 2 of 5, etc.
  • 2D: QR Code, Data Matrix, PDF417, Aztec, MaxiCode, etc.
• Reading Distance: Up to 300 mm.
• Aiming Light: Green LED + white illumination.
• Sensor: CMOS with a 640×480 resolution.
• Drop Resistance: Withstands drops from up to 1.5 meters.
• Plug and Play: Ready to use immediately without driver installation.
• Trigger Button Life: Over 10 million presses.
• Scan Modes: Manual / Continuous / Auto-sensing.
• Scan Angles: Rotate 360°, Pitch ±65°, Skew ±65°
• Field of View: Horizontal 44°, Vertical 33°
• Scan Depth:
  • EAN-13: 55–300 mm (13mil)
  • Code 39: 60–180 mm (5mil)
  • QR Code: 75–190 mm (15mil)
  • Code 128: 50–160 mm (5mil)
• Error Rate: 1 in 5 million.
• Minimum Contrast: ≥20%.
• Connectivity: USB-HID, USB-COM, RS232, supporting Windows, Android, Linux, and iOS.
• Operating Voltage: DC 5V ±5%.
• Operating Current: 240mA.

Physical Information

• Dimensions: 173 × 67 × 79 mm.
• Weight: 130 g.
• Material: ABS+PC.
• Cable Length: 1.5 meters.
