| Specifications |

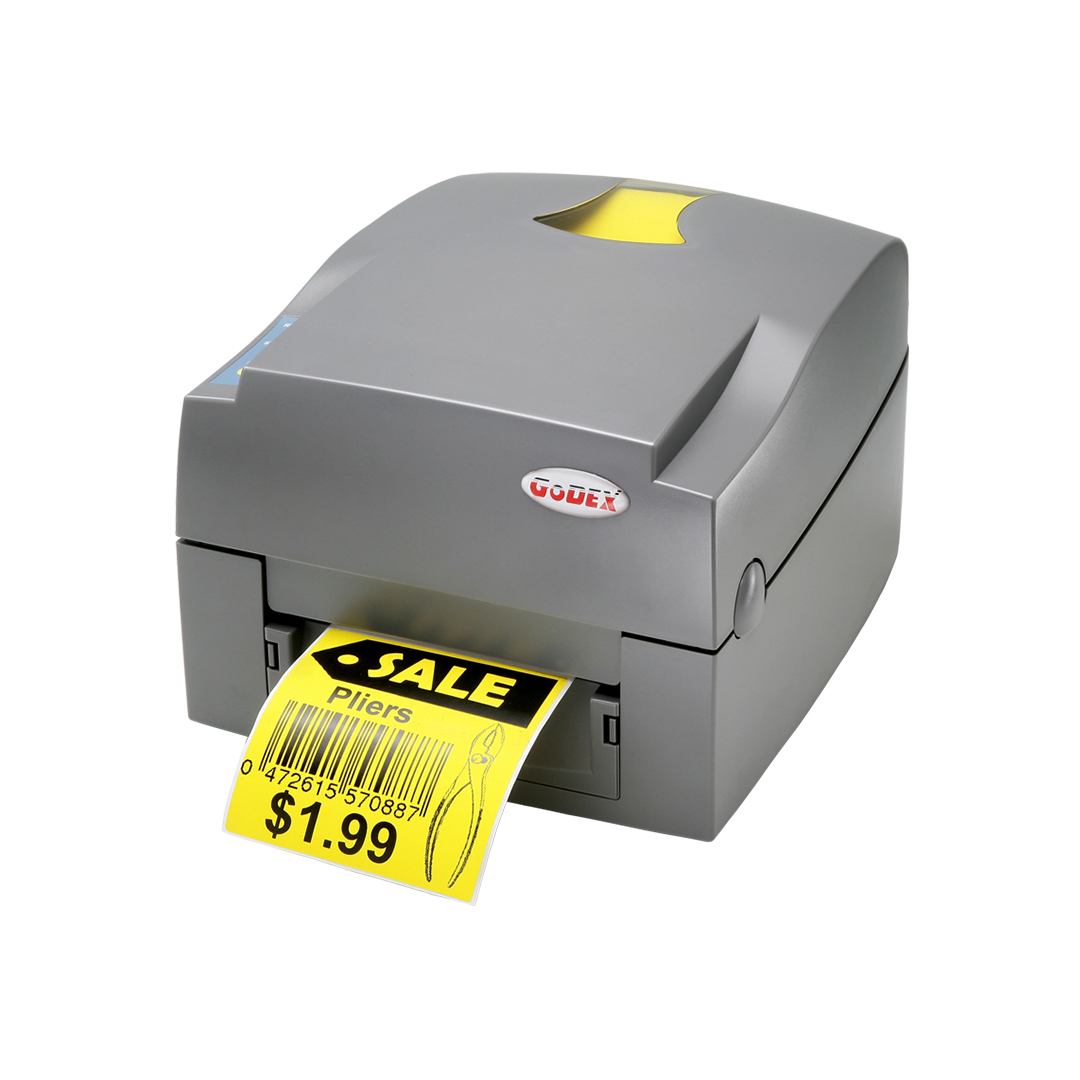

GODEX EZ-1100 Plus |
| Print Method |
Thermal Transfer / Direct Thermal |
| Resolution |
203 dpi (8 dots/mm) |
| Print Speed |
4 IPS (102 mm/s) |
| Print Width |
4.25" (108mm) |
| Print Length |
Min. 0.16” (4 mm)**; Max. 68” (1727 mm) |
| Processor |
32 Bit RISC CPU |
| Memory |
4MB Flash (2MB for user storage) / 8MB SDRAM |
| Sensor Type |
Fixed center aligned see-through sensor, adjustable reflective sensor |
| Media |
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max.
Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.25 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1", 1.5", 3" (25.4 mm, 38.1 mm, 76.2mm) |
| Ribbon |
Types: Wax, wax/resin, resin
Length: 981’ (300 m)
Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max
Ribbon roll diameter.: 2.67“ (68 mm)
Core diameter: 1” (25.4 mm) |
| Printer Language |
EZPL, GEPL, GZPL |
| Software |
Label design software: QLabel-IV (for EZPL only)
Driver: Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1
DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android |
| Resident Fonts |
Bitmap fonts 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable |
| Download Fonts |
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable |
| Barcodes |
1-D Bar codes:
Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5),I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14,HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar
2-D Bar codes:
PDF417, Datamatrix code, MaxiCode, QR code and Micro QR code |
| Code Pages |
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255
Unicode UTF8、UTF16BE、UTF16LE |
| Graphics |
Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces |
Serial port: RS-232 (DB-9)
USB port (default on)
Parallel port: Centronics 36-pin |
| Control Panel |
Two bi-color LEDs: Ready, Status
Function Key: FEED |
| Power |
Auto Switching 100-240VAC, 50-60Hz |
| Environment |
Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C) |
| Humidity |
Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing. |
| Agency Approvals |
CE(EMC), FCC Class A, CB, cUL, CCC |
| Dimension |
Length: 11.2” (285 mm)
Height: 6.8” (171 mm)
Width: 8.9” (226 mm) |
| Weight |
6 lbs (2.72Kg) ,excluding consumables |
| Options |
Rottary Cutter
Label Dispenser
Ethernet 10/100Mbps print server (default off; disables USB when in use)
802.11 b/g wireless print server (Default off; disables USB when in use)
Real Time Clock with CF card adapter (max. 1GB CF card)
External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder |
| Note |
* Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners.
** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability. |
