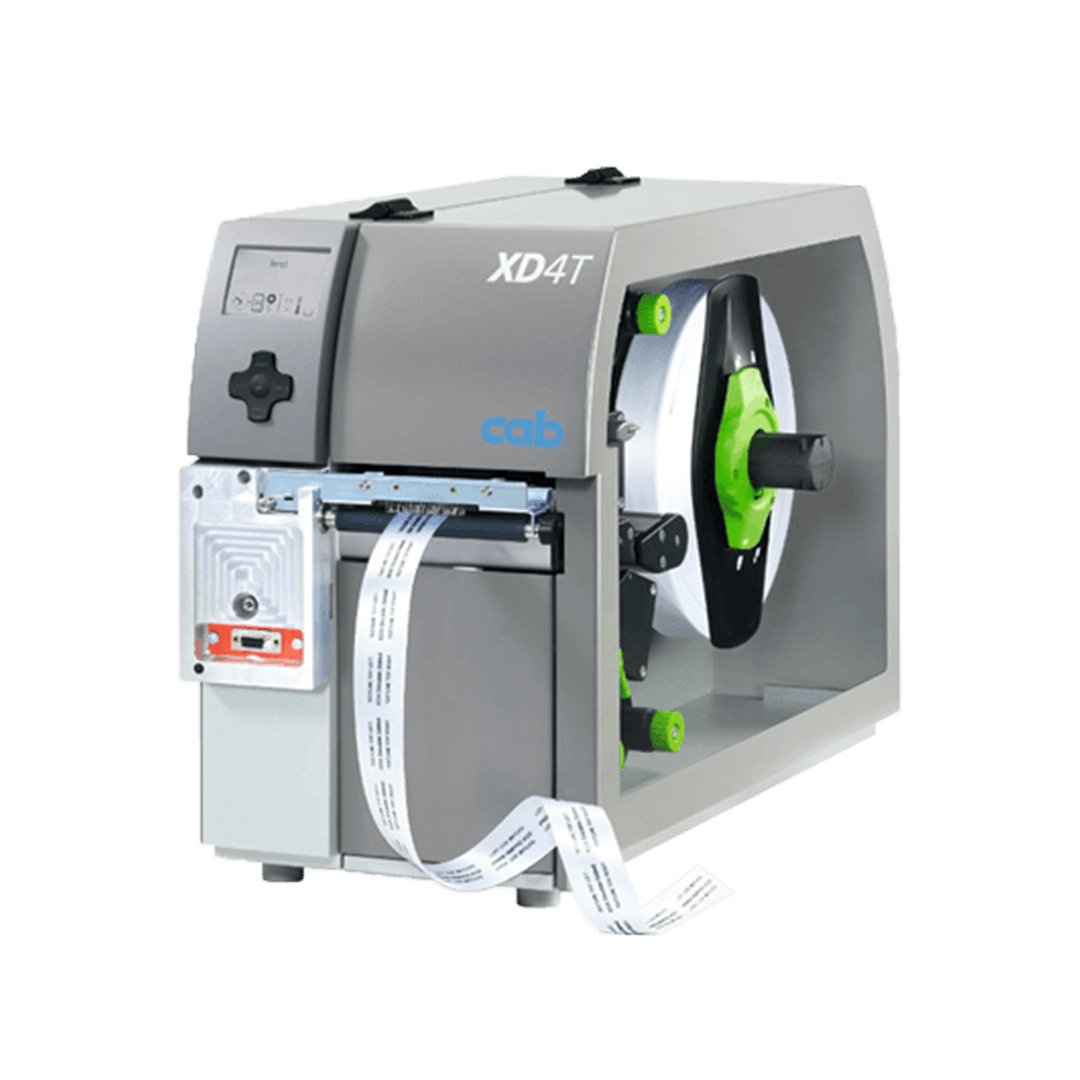

| Label printer | XD4T |
|---|
| Print head | |
| Material feed | centered |
| Printing method Thermal transfer |  |
| Printing method Thermal direct | - |
| Printable resolution dpi | 300 |
| Print speed up to mm / s | 125 |
| Print width up to mm | 105.6 |
| Material | |
Roll, reel: Paper, cardboard, plastics such as
Roll, reel: PET, PE, PP, PI, PVC, PU, acrylate, Tyvec | |
| Roll, reel: Pressed shrink tubes | |
| Roll, reel: Textile tapes | |
| Labels1) Width mm | 10-110 |
| Labels Height mm | 20 - 2,000 |
| Labels Thickness mm | 0.05 - 0.8 |
| Liner material Width mm | 10-110 |
| Continuous material Width mm | 4-110 |
| Continuous material Weight (cardboard) up to g/m2 | 300 |
| Shrink tubes Width ready-for-use up to mm | 110 |
| Shrink tubes Width continuous mm | 4 - 85 |
| Shrink tubes Thickness up to mm | 1.1 |
| Roll, reel Outside diameter up to mm | 300 |
| Roll, reel Core diameter mm | 38 - 100 |
| Roll, reel Winding | outside or inside |
| Ribbon2) |
| Ink side | outside or inside |
| Roll diameter up to mm | 72 |
| Core diameter mm | 25 |
| Variable length up to m | 360 |
| Width up to mm | 114 |
| Printer sizes and weight |
| Width x Height x Depth mm | 248 x 395 x 554 |
| Weight kg | 21 |
| Label sensor with position indication |
| Gap sensor for | labels, punch marks or print marks in transparent materials and end of material |
| Reflective sensor from below or top (option) for | print marks in not transparent materials and end of material |
| Distance sensor from centre to the left mm | 0 - 53 |
| Electronics |
| Processor 32 bit clock rate MHz | 266 |
| Main storage (RAM) MB | 64 |
| Data storage (IFFS) MB Flash | 8 |
| Slot for CompactFlash Type I | |
| Slot for WLAN card | |
| Battery buffer for real-time clock | |
| Acoustic error signal | |
| Interfaces |
| USB 2.0 Hi-speed slave to connect a PC | |
| Ethernet 10/100 Mbit/s | LPD, RawIP printing, FTP, DHCP, HTTP, SMTP, SNMP, TIME, Zeroconf, mDNS, SOAP |
| Periphery connection | |
| WLAN 802.11b/g, WEP/WPA-PSK (TKIP) |  |
| 2 x USB host for | Service Key, USB memory stick, keyboard, barcode scanner, external operation panel |
| Operating data |
| Power supply | 100 - 240 V ~ 50/60 Hz, PFC |
| Power consumption | 100 - 300 W depending from the type of device |
| Temperature / humidity Operation | 5-40°C/10-85% not condensing |
| Temperature / humidity Storage | 0-60°C/20-80% not condensing |
| Temperature / humidity Transport | – 25-60°C/20-80% not condensing |
| Approvals | CE, FCC, CB, cULus, CCC |
