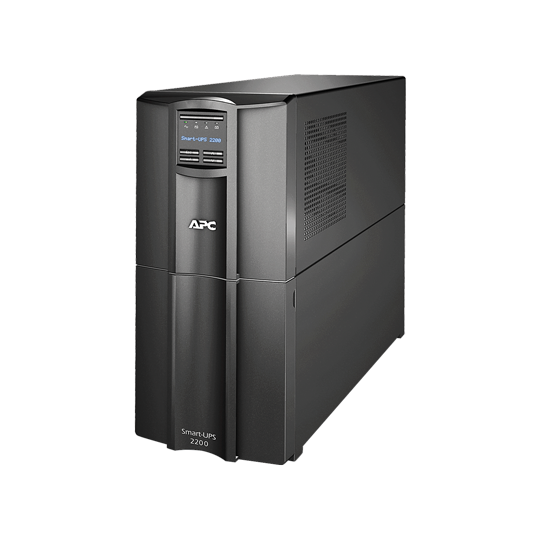

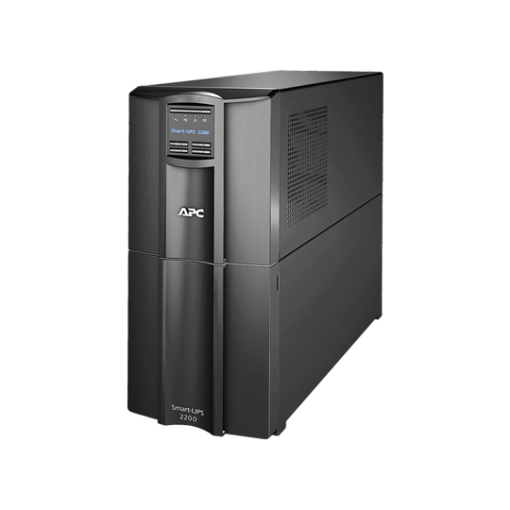

    APC Smart-UPS SMT2200I 2200Va/ 1980W/ 230V

    Manufacturer: APC
    APC Smart-UPS 2200VA LCD 230V Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. Includes: CD with software, Documentation CD, Installation guide, Smart UPS signalling RS-232 cable, USB cable Provides temporary battery power when the utility power is out.
    SKU: เครื่อง/Set


    ฿39,900.00 excl tax
    i h
    Output Power Capacity 1.98kWatts / 2.2kVA
    Max Configurable Power (Watts) 1.98kWatts / 2.2kVA
    Nominal Output Voltage 230V
    Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
    Output Voltage Distortion Less than 5% at full load
    Output Frequency (sync to mains) 47 - 53 Hz for 50 Hz nominal , 57 - 63 Hz for 60 Hz nominal
    Topology Line Interactive
    Waveform Type Sine wave
    Output Connections
    (1) IEC 320 C19 (Battery Backup)
    (8) IEC 320 C13 (Battery Backup)
    (2) IEC Jumpers (Battery Backup)
    Transfer Time
    6ms typical : 10ms maximum
    Nominal Input Voltage 230V
    Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
    Input Connections IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
    Input voltage range for main operations 160 - 286 V
    Input voltage adjustable range for mains  151 - 302V
    Other Input Voltages 220 , 240
    Batteries & Runtime
    Interface Port(s) SmartSlot
    Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
    Typical recharge time 3 hour(s)
    Replacement Battery RBC55
    Expected Battery Life (years) 3 - 5
    RBC Quantity 1
    Control panel Multi-function LCD status and control console
    Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
    Emergency Power Off (EPO) Yes
    Available SmartSlot™ Interface Quantity 1
    Surge Protection and Filtering
    Surge energy rating 365 Joules
    Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449


    Approvals CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE
    Standard warranty 3 years repair or replace (excluding battery) and 2 year for battery
