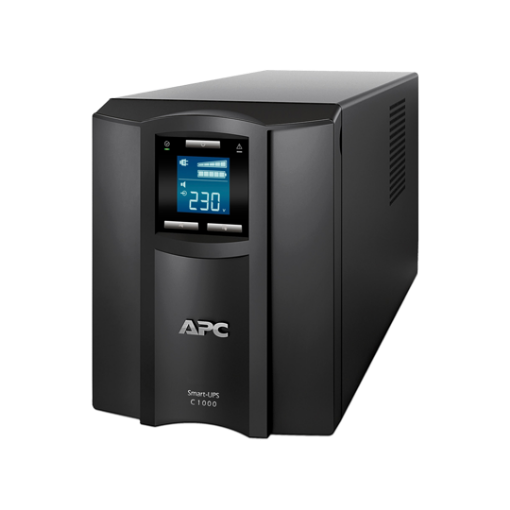

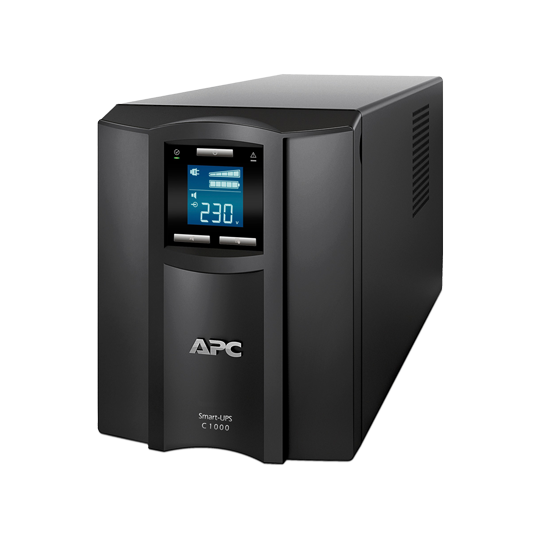

APC SMART-UPS SMC1000IC 1000VA/600W เครื่องสำรองไฟ

APC Smart-UPS 1000VA 230V

• Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other …
• Includes: USB cable

Key Features

• Cold-start capable
  Provides temporary battery power when the utility power is out.
• Green mode
  Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
• High online efficiency
  Reduces utility costs, generates less heat.
• LCD Status Display
  Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
• Pure sine wave output on battery
  Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
• SmartConnect
  Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
• Temperature-compensated battery charging
  Prolongs battery life by regulating the charge voltage according to battery temperature.

Output
Output power capacity : 600Watts / 1.0kVA
Max Configurable Power (Watts) : 600Watts / 1.0kVA
Nominal Output Voltage : 230V
Output Voltage Distortion : Less than 5%
Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz
Other Output Voltages : 220, 240
Topology : Line Interactive
Waveform type : Sine wave
Output Connections : (8) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup)
Transfer Time : 6ms typical : 10ms maximum

Input
Nominal Input Voltage : 230V
Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections : IEC-320 C14
Input voltage range for main operations : 180 - 287V
Input voltage adjustable range for mains operation : 170 - 300V
Other Input Voltages : 220, 240

Batteries & Runtime
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time : 3hour(s)
Replacement Battery : APCRBC142
Expected Battery Life (years) : 3 - 5
RBC Quantity : 1

Communications & Management
Interface Port(s) : RJ-45 Serial, USB
Control panel : Multi-function LCD status and control console
Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) : --

Surge Protection and Filtering
Surge energy rating : 455Joules
Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical
Maximum Height : 219MM, 21.9CM
Maximum Width : 171MM, 17.1CM
Maximum Depth : 439MM, 43.9CM
Net Weight : 17.27KG
Shipping weight : 19.55KG
Shipping Height : 376MM, 37.6CM
Shipping Width : 328MM, 32.8CM
Shipping Depth : 595MM, 59.5CM
Color : Black
Master Carton Units : 1.0
Units per Pallet : 18.0

Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0-3000meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0-15000meters
Audible noise at 1 meter from surface of unit : 41.0dBA
Online thermal dissipation : 100.0BTU/hr

Conformance
Approvals : CE, CSA, GOST, UL 1778, VDE
Standard warranty : 2 years repair or replace

Sustainable Offer Status
RoHS : Compliant
REACH : REACH: Contains No SVHCs
Other Environmental Compliance : China RoHS
