| Physical Characteristics |
|
| Dimensions |
129.8 mm L x 114.4 mm W x 58.9 mm H
5.1 in. L x 4.5 in. W x 2.3 in. H |
| Weight (With Battery) |
390 g/0.85 lbs |
| Printer Specifications |
|
| Programming Languages |
CPCL, subset of ESC/POS |
| Resolution |
203 dpi/8 dots per mm |
| Memory |
8MB SDRAM, 16MB Flash |
| Max Print Width |
72 mm/2.83 in. |
| Max Print Speed |
Receipt and Label: 2 ips (50mm/s) |
| Sensors |
Black Mark, Gap, Media Out sensing |
Battery Capacity and Type
|
2500 mAh (7.4V), rechargeable Li-ion battery |
Media Characteristics
|
|
Media Type
|
Direct Thermal media, continuous receipt, black mark receipt and gap label |
Media Width
|
80 mm/3.15 in.
With media spacers:
76.2 mm/3.00 in.
58 mm/2.28 in.
50.8 mm/2.00 in. |
Media Roll Diameter
|
Inner: 12.7 mm/0.5 in.
Outer: 50 mm/2.0 in. |
Media Thickness
|
0.058 mm to 0.1575 mm |
Environment and Resistance
|
|
| Operating Temp. |
-5°C to 50°C/23°F to 122°F |
| Storage Temp. |
-20°C to 60°C/-4°F to 144°F |
Charging Temperature
|
0°C to 40°C/32°F to 104°F |
| Charging Time |
Less than 4 Hours (23 °C +/- 5°C) |
Printing Length
Per Charge |
Minimum of 500 labels x 8.5 in. length, 13% density |
| Drop Specification |
1.5 m/5 ft. to concrete |
IP Rating
|
IP54 without soft case |
| Agency Approvals |
|
| Emissions |
EN55032, VCCI-CISPR 32, EN301489-1/-17 |
| Susceptibility |
EN55035 |
| Safety |
IEC/EN62368, BIS |
| Radio |
EN300328, EN62479, BT SIG, ANATEL, IFT, SDPPI, IMDA, WPC |
| Communication and Interface |
|
| Bluetooth |
Bluetooth 5.0 Low Energy dual mode |
| USB Port |
USB 2.0 type-C connector |
| NFC Tag |
Passive NFC tag |
| Charging Method |
USB charging |
Low Power Mode
|
Support power saving |
User Interface
|
OLED Screen, Control Buttons (Power, Config, Feed) |
Fonts
|
|
Built-In Fonts (Bitmap)
|
English/Latin9, Cyrillic, Tra. Chinese 24x24, New Sans MT 16x16, Vietnamese 16x16, Japanese 16x16, 24x24 (CPCL)
FontA 12x24, FontB 9x17, FontC 9x24 (ESC/POS) |
Barcode Symbology
|
|
| Linear Barcodes |
Code 39, Code 93, UCC/EAN128 (GS1-128), Code 128, Codabar, Interleaved 2-of-5, UPC-A and UPC-E 2, 5 digit add-on and composite, EAN-8, EAN-13, 2, 5 digit add-on and composite |
2D Barcodes
|
PDF417, MicroPDF417, MaxiCode, QR Code, GS1/DataBar™ (RSS) family, Aztec, MSI/Plessey, Datamatrix |
Software and Tools
|
|
| SDK |
Legacy Multiplatform SDK support for PC Windows v7, v8, v10, Android, iOS |
Tools
|
Zebra Printer Setup Utility (Windows),
OPOS Driver, Zebra Designer
(Printer Windows Driver, Font and Graphic Downloader, Status Monitor, Label Design Application), Zebra NetBridge, Mobile Label Designer Application
(ZLabel Designer App Android and iOS version) |
Optional Accessories
|
|
Battery
|
Spare printer battery 2500 mAh.
Note: One battery ships with the printer |
Soft Case
|
Add an extra layer of protection for harsh environments with a soft case. Includes a shoulder strap. |
Shoulder Strap
|
Hooks to the soft case or printer for easy over-the-shoulder carrying |
Belt Clip
|
Replacement belt clip (one belt clip ships with the printer); package of 5 |
USB Cable (Type C-A)
|
Spare USB Type A to Type C cable, package of 1 or 5. Use this cable with the AC-USB Adapter or the Vehicle Lighter Adapter to charge your printer. Printer includes one cable. |
AC to USB Adapter
|
Use AC to USB Adapter to charge your printer |
Media Spacer
|
Media spacer for accepting 3 in. (76.2 mm), 2.3 in. (58 mm) and 2 in. (50.8 mm) wide paper, package (5 sets, 2 per set) |
Single Battery Charger
|
Charge one Li-Ion printer battery at a time |
|
|

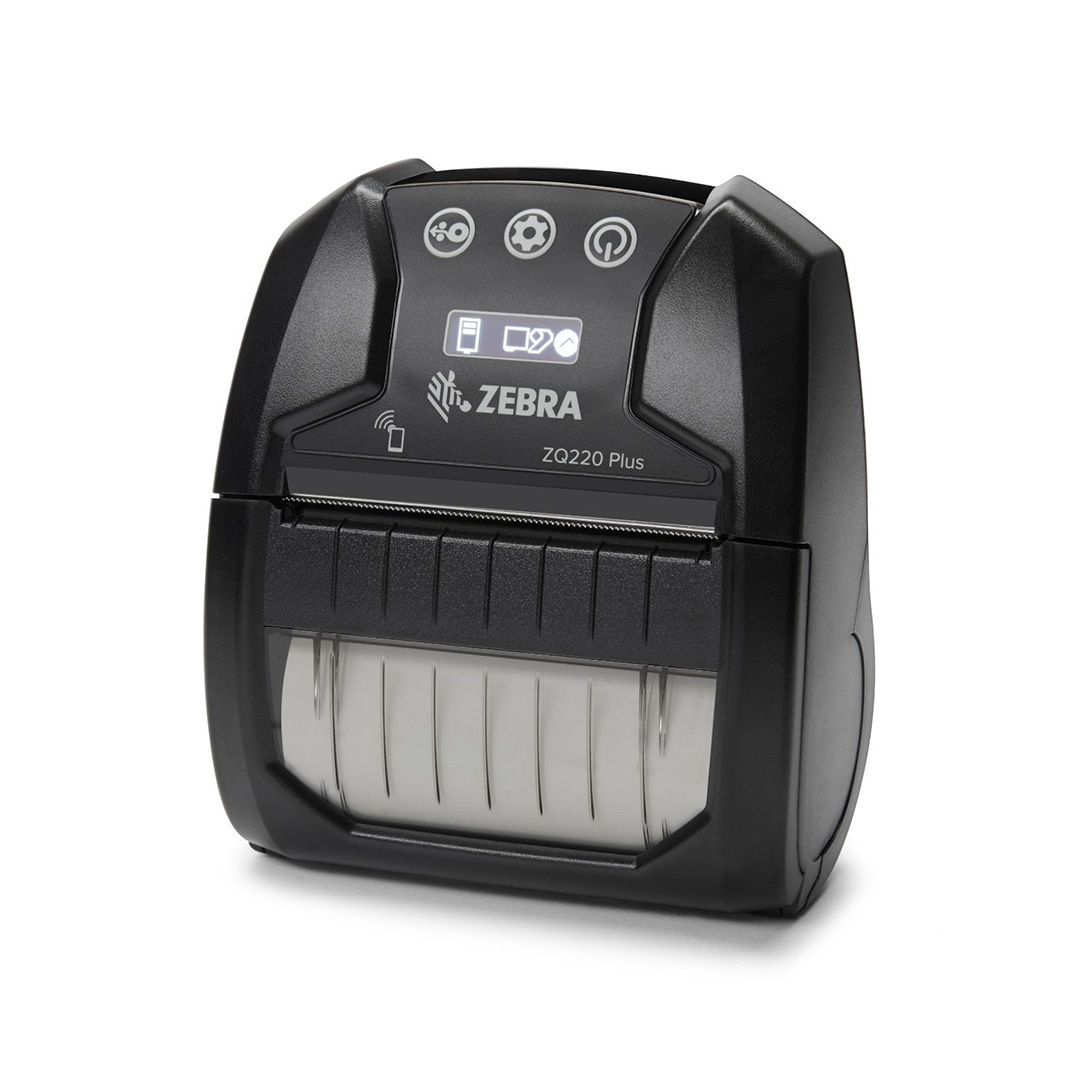

The ZQ220 Plus is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For the complete warranty statement, please visit:
www.zebra.com/warranty |
| Recommended Services |
Zebra OneCare maintenance plans provide peak performance and device uptime while protecting your critical operations and your printers with defined service levels.* For more information go to:
www.zebra.com/zebraonecare |
| Zebra OneCare Essential |
Comprehensive Coverage, including printheads, normal wear and accidental breakage
Priority access 8x5 live technical support and software updates
Three-day depot repair turnaround time plus free return ground shipping
Online Return Material Authorization (RMA) support
|
| Footnotes |
*Note: Service availability may vary by region |
