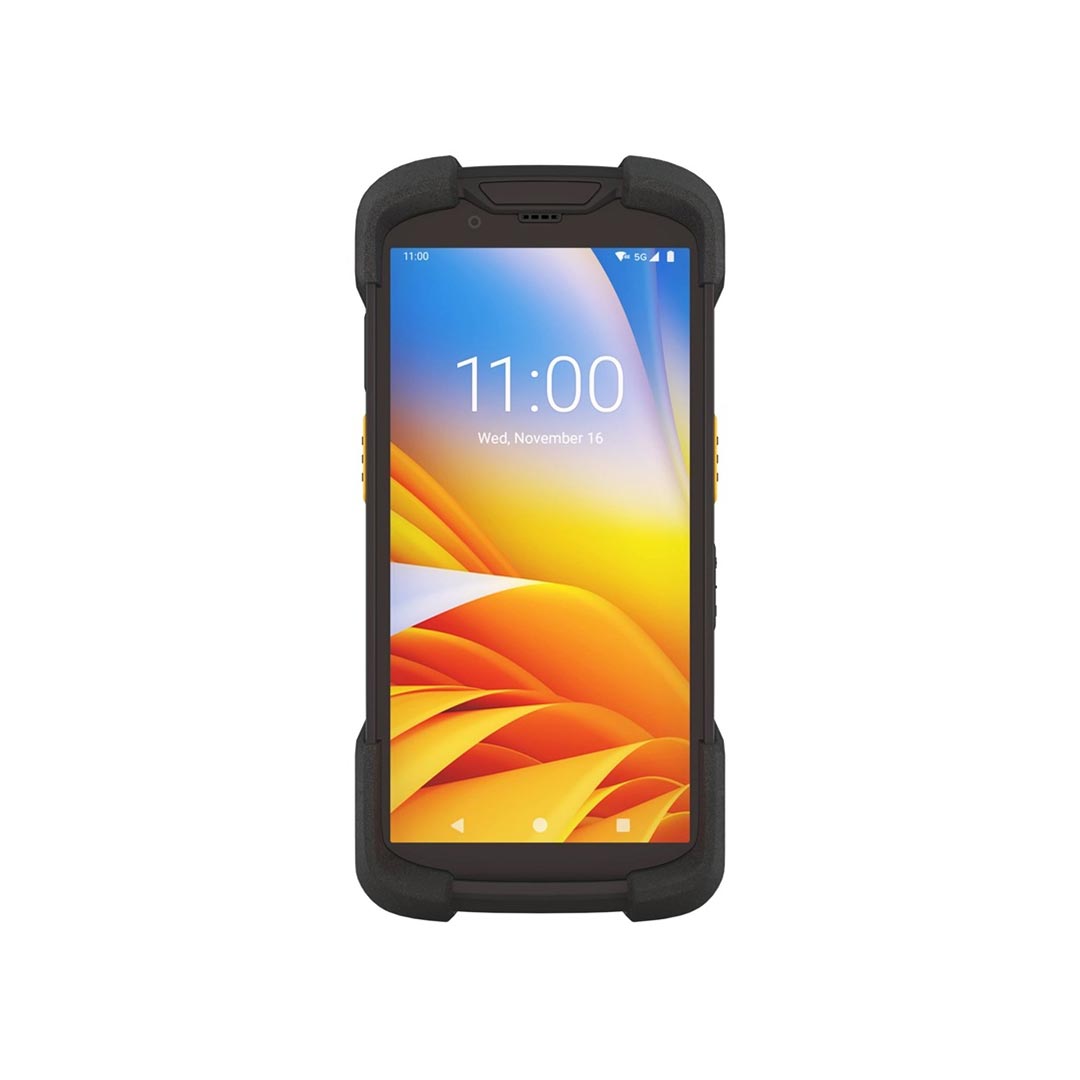

| Specifications TC73 TC78 |
| Physical Characteristics |
| Dimensions |
6.96 in. L x 3.38 in. W x 1.12 in. H/176.8 mm L x 85.8 mm W x 28.4 mm H; Grip area: 3.179 in. W x 0.80 in. H/80.75 mm W x 20.3 mm H |
| Weight |
12.3 oz./349 g with standard battery |
| Display |
6.0 inch Full High Definition+ (1080 X 2160); LED backlight; optically bonded to touch panel |
| Imager Window |
Corning® Gorilla® Glass |
| Touch Panel |
Multi mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately); Corning® Gorilla® Glass; Water droplet rejection; fingerprint resistant anti-smudge coating |
| Power |
Rechargeable Li-Ion, PowerPrecision+ for real-time battery metrics; Standard Capacity: 4680 mAh (18.01 Watt hours); Extended Capacity: 7000 mAh (26.95 Watt hours); BLE battery: 4680 mAh; Qi compatible Wireless charge battery: 4680 mAh; fast charging, Warm Swap battery mode (standard SKUs); Hot Swap battery mode (premium SKUs) |
| Expansion Slot |
User accessible MicroSD card supports up to 2 TB |
| SIM |
TC78 only: 1 Nano SIM and 1 eSIM |
| Network Connections |
TC73: WLAN, WPAN (Bluetooth); TC78: WWAN 5G |
| Notifications |
Audible tone; multi-color LEDs; haptic feedback |
| Keypad |
On-screen keypad and Zebra enterprise keyboard |
| Voice and Audio |
Three microphones with noise cancellation; vibrate alert; dual speakers for loudness; Bluetooth wireless headset support; high quality speaker phone; PTT headset (Zebra USB-C) support; cellular circuit switch voice; HD Voice, including Superwideband (SWB); Wideband (WB) and Fullband (FB) |
| Buttons |
Programmable buttons for maximum flexibility: dual dedicated scan buttons; dedicated push-totalk button; volume up/down buttons and Trigger button of Trigger Handle via Back I/O |
| Interface Ports |
USB 2.0 (Back I/O—Host Only), USB 3.0 (Bottom Type C)—Super Speed (Host and Client) |
| Performance Characteristics |
| CPU |
Qualcomm 6490 octa-core, 2.7 GHz |
| Operating System |
Upgradeable to Android 16 |
| Memory |
4 GB RAM/64 GB UFS Flash; 8 GB RAM/128 GB UFS Flash |
| Security |
FIPS 140-2 cryptography can be enabled on select configurations through a custom SKU request. Supports Secure Boot and Verified Boot |
| User Environment |
| Operating Temperature |
-4° F to 122° F/-20° C to 50° C |
| Storage Temperature |
-40° F to 158° F/-40° C to 70° C |
| Humidity |
5% to 95% non-condensing |
| Drop Specification |
Multiple 10 ft./3.05 m drops to concrete at room temp per MIL-STD 810H Multiple 8 ft./2.4 m drops to concrete over operating temp -20° C to 50° C per MIL-STD 810H |
| Tumble Specification |
2000 3.3 ft./1.0 m tumbles, meets or exceeds IEC tumble specification |
| Sealing |
IP65 and IP68 with battery per applicable IEC sealing specifications |
| Vibration |
4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis |
| Electrostatic Discharge (ESD |
+/- 15 kVdc air discharge; +/- 8 kVdc direct discharge; +/- 8 kVdc indirect discharge |
| Automated Interactive Sensor Technology (IST) |
| Light Sensor |
Adjusts display backlight brightness |
| Magnetometer |
Detects direction and orientation |
| Motion Sensor |
3-axis accelerometer with MEMS Gyro |
| Pressure Sensor |
Detects altitude information for locating |
| Proximity Sensor |
Detects when the user places the handset against head during a phone call to disable display output and touch input |
| Gyro |
Senses linear orientation |
| General Certifications |
| TAA compliant; ARCore Google certification sustained |
| Data Capture |
| Scanning |
SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology; SE4770 1D/2D Scan Engine |
| Camera |
Front—8 MP; Rear—16 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR (standard); Optical Image Stabilization (OIS) (premium SKUs only); Time of Flight (ToF) Sensor (premium SKUs only) |
| NFC |
ISO 14443 Type A and B; FeliCa and ISO 15693 cards; Card Emulation via Host; Contactless payment support; ECP1.0 and ECP2.0 polling support; Apple VAS certified; NFC Forum Certified; and Google Smart Tap Ready |
| Wireless WAN Data and Voice Communications (TC78 only |
| Radio Frequency Band |
North America: 5G FR1: n2, 5, 7, 12, 13, 14, 25, 26, 29, 38, 41, 48, 66, 71, 77, 78; 4G: B2, 4, 5, 7, 12, 13, 14, 17, 25, 26, 29, 38, 41, 48, 66, 71; 3G: B2, 4, 5; 2G: 850, 1900; Rest of World: 5G FR1: n1, 2, 3, 5, 7, 8, 20, 28, 38, 40, 41, 66, 71, 77, 78; 4G: B1, 2, 3, 4, 5, 7, 8, 17, 20, 28, 38 ,39, 40, 41, 42, 43, 66, 71; 3G: 1, 2, 3, 4, 5, 8; 2G: 850, 900, 1800, 1900; China/Japan: 5G FR1: n1, 3 ,5, 8, 38, 40, 41, 77, 78, 79; 4G: B1, 3, 5, 7, 8, 19, 34, 38, 39, 40, 41, 42; 3G: B1, 5, 8 ,19; 2G: 850, 900, 1800 Supports private networking (LTE/5G) |
| GPS |
GPS, GLONASS, Galileo, Beidou, QZSS Dual-Band GNSS—concurrent L1/G1/E1/B1 (GPS/ QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/ QZSS, GAL, BeiDou); a-GPS; supports XTRA |
| Multimedia |
Wi-Fi Multimedia™ (WMM) and WMM-PS including TSPEC |
| Wireless LAN |
| Radio |
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2x2 MUMIMO; Wi-Fi 6E (802.11ax); Wi-Fi™ certified; Wi-Fi™ 6E Certified; Dual Band Simultaneous; IPv4, IPv6 |
