| Specifications |

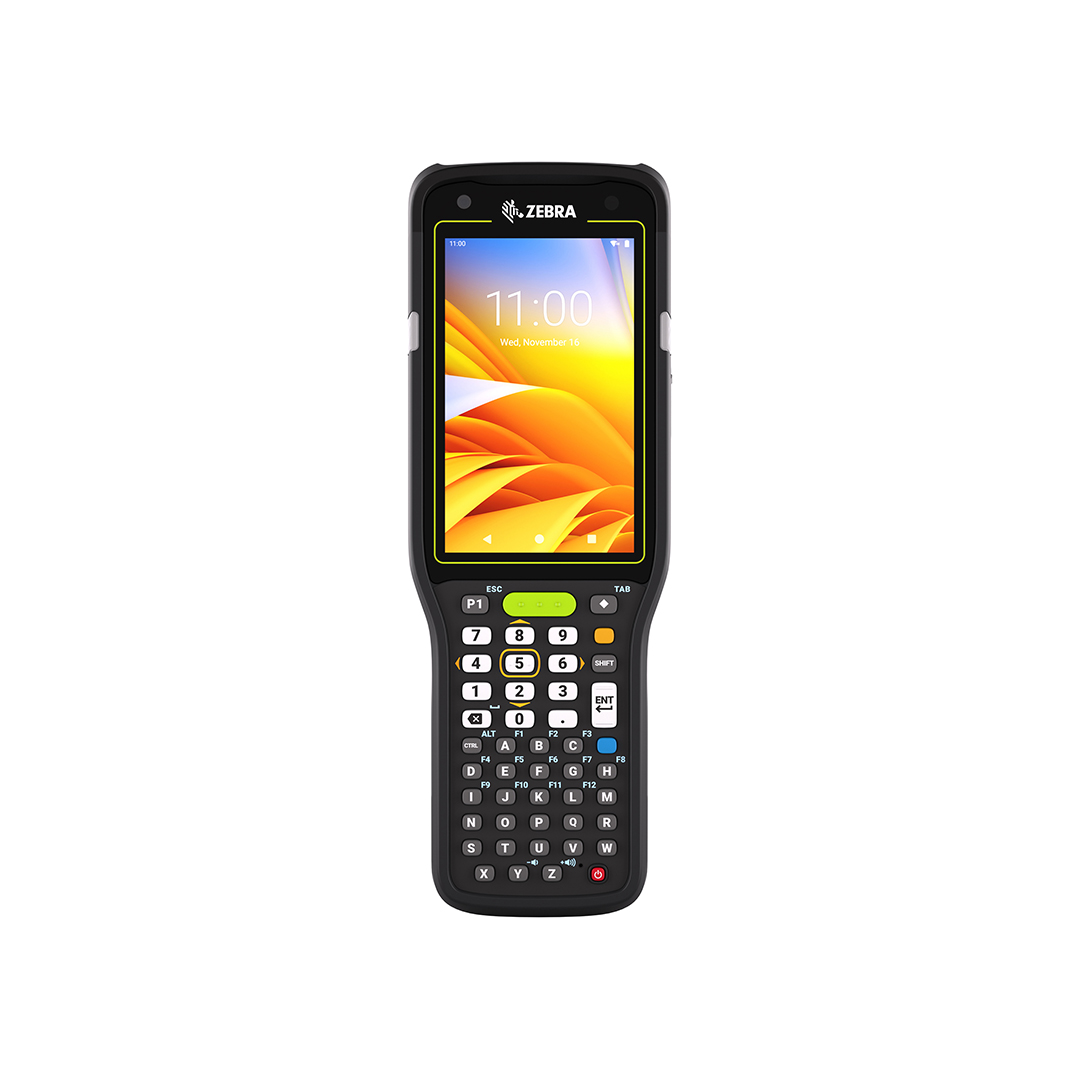

ZEBRA MC3400 |
| Dimensions |
Straight Shooter: 8.2 in L x 2.9 in W x 1.5 in H
(208.5mm L x 73.5mm W x 37.1mm H)
Gun: 8.2 in L x 2.9 in W x 6.5 in H
(208.5mm L x 73.5mm W x 165.3mm H) |
| Weight |
Straight Shooter: 15.6 oz (442g)
Gun: 18.6 oz (528g) |
| Display |
4 in WVGA (800 x 480), color display, Standard: 350 NITS (typical), Expanded/Full: 600 NITS (typical) |
| Imager Window |
Corning® Gorilla® Glass |
| Touch Panel |
Dual mode capacitive touch with finger, gloved finger or stylus input (conductive stylus sold separately); Corning Gorilla Glass optically bonded |
| Power |
Standard Rechargeable Li-Ion: 3.6V, 7000mAh (25.20 Wh); Optional BLE Battery Li-Ion 3.6V, 7000mAh (25.2 Wh); Hot swap battery backup with temporary session persistence |
| Expansion Slot |
MicroSD supports up to 2 TB |
| SIM |
MC3450 only: 1 nano SIM; 1 eSIM |
| Network Connections |
MC3400/MC3450: WLAN, WPAN (Bluetooth), USB 2.0 High Speed (host and client); MC3450 only: WWAN 5G, data only |
| Notifications |
Audible tone; multi-color LEDs (2); haptic feedback |
| Keypad |
Numeric (29 key), Function Numeric (38 key), Alpha Numeric (47 key) |
| Voice and Audio |
Speaker, microphone, Push-to-Talk (PTT Voice; internal speaker, Bluetooth wireless headset support, USB-C headset) |
| Buttons |
Trigger scan button (Gun); Keypad scan button, Side Scan Keys (Straight Shooter) |
| Interface Ports |
USB 2.0 (Bottom pogo connector and side USB-C connector) — High Speed (Host and Client) |
| CPU |
Qualcomm® 4490 octa-core, 2.4 GHz |
| Operating System |
Android; for supported Android versions, visit:
www.zebra.com/android-versions |
| Memory |
Standard: 4 GB RAM/64 GB Flash; Expanded: 6 GB RAM/64 GB Flash; Full: 6 GB RAM/128 GB Flash |
| Security |
FIPS 140-2 Validated; Common Criteria certified; Supports Secure Boot and Verified Boot |
| Operating Temperature |
-4F to +122F (-20C to +50C) |
| Storage Temperature |
-40F to +158F (-40C to +70C) |
| Humidity |
5% to 95% non-condensing |
| Drop Specification |
Per MIL-STD 810H: 8 ft (2.4m)6 to concrete at (+23C/+73F); 6 ft (1.8m) to concrete across temperature (-20C to +50C/-4F to +122F) exceeding MIL-STD-810H |
| Tumble Specification |
4,000 3.3 ft (1m) tumbles; meets or exceeds IEC tumble specification |
| Sealing |
Dual IP65 and 67 rating with battery per applicable IEC sealing specifications |
| Vibration |
4 g’s PK Sine (5 Hz to 2 kHz); 0.04g 2/Hz Random
(20 Hz to 2 kHz); 60 minute duration per axis, 3 axis |
| Electrostatic Discharge (ESD) |
+/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge |
| Light Sensor |
Automatically adjusts display backlight brightness (Expanded and Full) |
| Magnetometer |
MC3450 only: eCompass automatically detects direction and orientation |
| Motion Sensor |
3-axis accelerometer with MEMS Gyro |
| Scanning |
SE58 1D/2D Extended Range Scan Engine with IntelliFocus™ technology; SE55 Advanced Range Scan Engine with IntelliFocus™ technology; SE4770 1D/2D Scan Engine; SE4710 1D/2D Scan Engine |
| Camera |
Front: 5 MP; Rear: 13 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR |
| NFC |
NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5 |
