| Physical Characteristics |

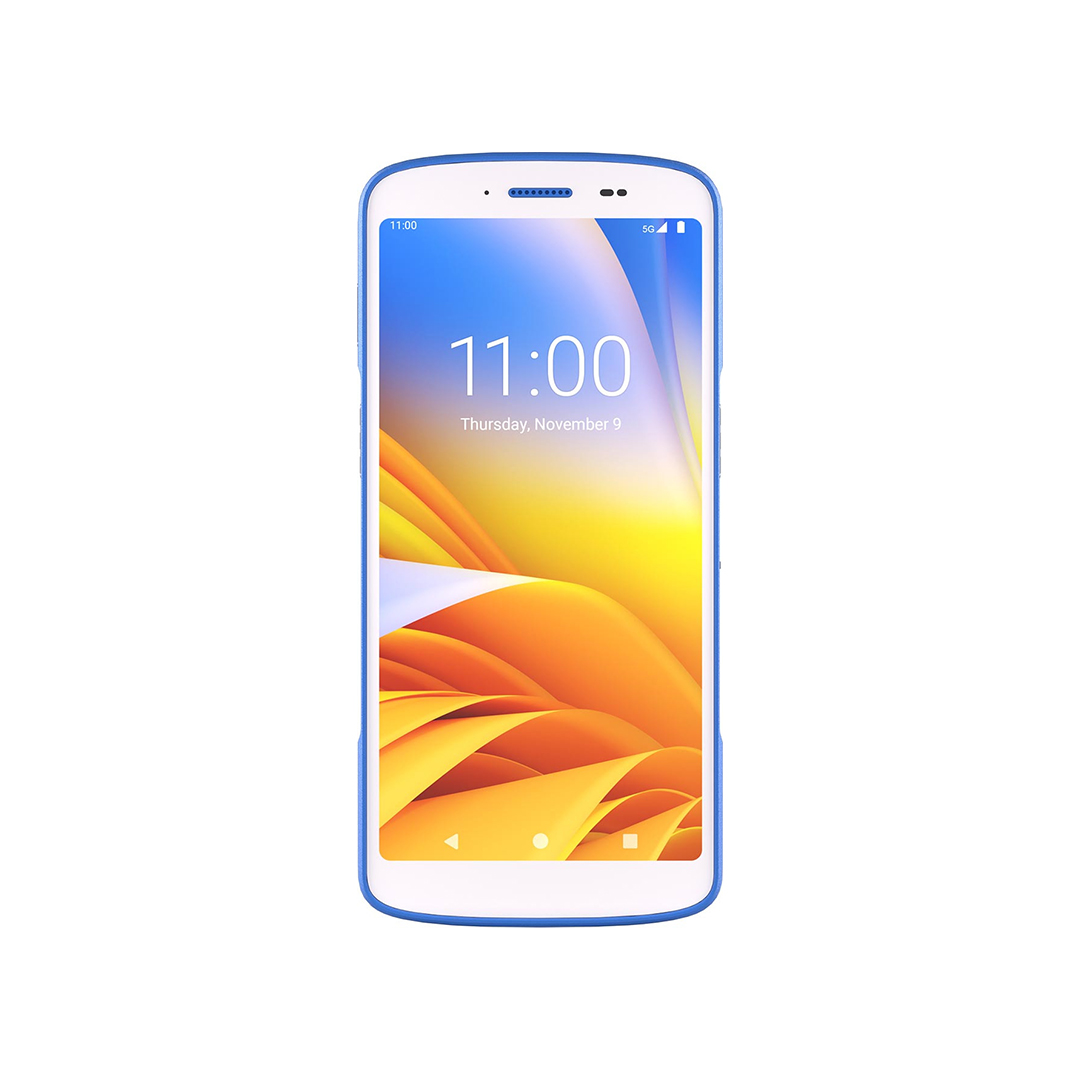

ZEBRA HC20 |
| Dimensions |
6.5 in L x 3.0 in W x 0.49 in D
(165mm L x 76.3mm W x 12.5m D) |
| Weight |
HC20/HC25: 8.4 oz (239g)
HC50/HC55: 8.5 oz (242g) |
| Display |
6.0 in. color Full High Definition+ (1080 x 2160), 450 NITS; Corning® Gorilla® Glass |
| Imager Window |
Corning® Gorilla® Glass |
| Touch Panel |
Multi mode capacitive touch with bare or light gloved fingertip input |
| Backlight |
LED backlit |
| Power |
User removable; rechargeable Li-Ion; 3800mAh/14.63Wh; standard capacity with BT BLE; PowerPrecision for real-time battery metrics; fast charge; true hot swap (HC50/HC55) |
| Expansion Slot |
Supports up to 2TB MicroSD |
| SIM |
HC25/HC55: 1 Nano SIM and 1 eSIM (except China) |
| Network Connections |
WWAN (HC25/HC55), WLAN, WPAN, USB 3.1 (Bottom Type C) - Super Speed (host and client) |
| Notifications |
Audible tone; multi-color LEDs; vibration |
| Keypad |
On-screen keypad |
| Voice and Audio |
Built-in microphones for AI noise suppression and stereo record; vibrate alert; Dual speakers for loudness; Bluetooth wireless headset support; PTT headset (Zebra USB-C) support; High quality stereophonic speaker phone; Cellular Circuit Switch voice; HD voice; VoLTE EVS; VoIP incl. SWB Audio |
| Buttons |
Dual dedicated scan buttons; programmable button for PTT or other use; volume up/down |
| Safety/Alert |
Red Duress Button with emergency dialer feature |
Performance Characteristics
|
| CPU |
Qualcomm® 5430 hex-core, 2.1 GHz |
| Operating System |
Android; for supported Android versions, visit: www.zebra.com/android-versions |
| Memory |
HC20/HC25: 6 GB RAM/64 GB UFS Flash
HC50/HC55: 8 GB RAM/128 GB UFS Flash |
| Security |
Product supports Secure Boot and Verified Boot |
User Environment
|
| Operating Temperature |
+14F to +122F (-10C to +50C) |
| Storage Temperature |
-40F to +158F (-40C to +70C) |
| Humidity |
5%-95% non-condensing |
| Drop Specification |
Multiple 4 ft (1.25m) drops to tile over concrete across temperature (+14F to +122F/-10C to +50C) per MIL-STD 810H |
| Tumble Specification |
500 tumbles, 1.6 ft (0.5m) |
| Sealing |
IP68 and IP65, with battery per applicable IEC sealing specifications |
| Electrostatic Discharge (ESD) |
+/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge |
Data Capture
|
| Camera |
Rear: 16 MP; HC50/HC55 only: Front 5 MP |
| Scanning |
SE4720 1D/2D Scan Engine with White Illumination/Green Aimer3
Occasional barcode scanning available via camera; barcode decoding software included |
| NFC |
NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support – Front Tap NFC for optimized contactless payment, VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK |
Voice
|
| VOIP Communications |
Workcloud Communication PTT Express simple push-to-talk calls over Wi-Fi (optional).
Workcloud Communication PTT Pro enables instant push-to-talk calls over Wi-Fi and cellular (optional).
Workcloud Communication Enterprise Voice allows HC2X/HC5X devices to double as fully-featured and customizable PBX mobile handsets (optional). |
Wireless LAN
|
| Radio |
IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc;
2x2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz);
Wi-Fi CERTIFIED 6™ (Wi-Fi 6E5); Dual Band Simultaneous; IPv4, IPv6 |
| Data Rates |
6 GHz: 802.11ax—20 MHz, 40 MHz, 80 MHz, 160MHz - up to 2402 Mbps;
5 GHz: 802.11a/n/ac/ax—20 MHz, 40 MHz, 80 MHz, 160 MHz - up to 2402 Mbps;
2.4 GHz: 802.11b/g/n/ax—20 MHz - up to 286.8 Mbps |
| Operating Channels |
Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165
Channel 1-233 (5925-7125 MHz);
Channel Bandwidth: 20, 40, 80, 160 MHz
Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency |
| Security and Encryption |
WPA3 Enterprise 192-bit mode, GCMP256—EAP-TLS; WPA3 Enterprise, AES-CCMP-128—EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD;
WPA3 Personal (SAE), AES-CCMP-128;
WPA/WPA2 Enterprise, TKIP and AES-CCMP-128;
WPA/WPA2 Personal (PSK), TKIP and AES-CCMP-128; Enhanced Open (OWE), AES-CCMP-128;
WEP 40 bit and 104 bit |
| Fast Roam |
802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC |
| Certifications |
Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Enhanced Open; WMM (Wi-Fi Multimedia); WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint |
Wireless WAN (HC25/HC55)
|
| Frequency Bands |
North America: 5G FR1: n2/5/7/12/13/14/25/26/29/38/41/48/66/71/77/78; 4G: B2/4/5/7/12/13/14/17/25/26/29/38/41/48/66/71; 3G: B2/4/5; Rest of World: 5G FR1: n1/2/3/5/7/8/20/28/38/40/41/66/71/77/78;
4G: B1/2/3/4/5/7/8/13/17/20/28/38/39/40/41/42/43/66/71; 3G: 1/2/4/5/8; 2G: 850/900/1800/1900; China/Japan: 5G FR1: n1/3/5/7/8/28/38/40/41/77/78/79; 4G: B1/3/5/7/8/19/18/26/28/34/38/39/40/41/42; 3G: B1/5/6/8/19; 2G: 850/900/1800; Dual SIM/Dual Standby, VoLTE, Gigabit LTE-A, 5G NR Sub-6 (NSA, SA), LTE/NR Carrier Aggregation, supports private networking (LTE/5G) |
| GPS |
GPS, GLONASS, Galileo, Beidou, QZSS, Dual-Band GNSS—concurrent L1/G1/E1/B1 (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA |
| Wireless PAN |
|
| Bluetooth |
Class 2, Bluetooth v5.2 with BLE beaconing |
