Specifications
|

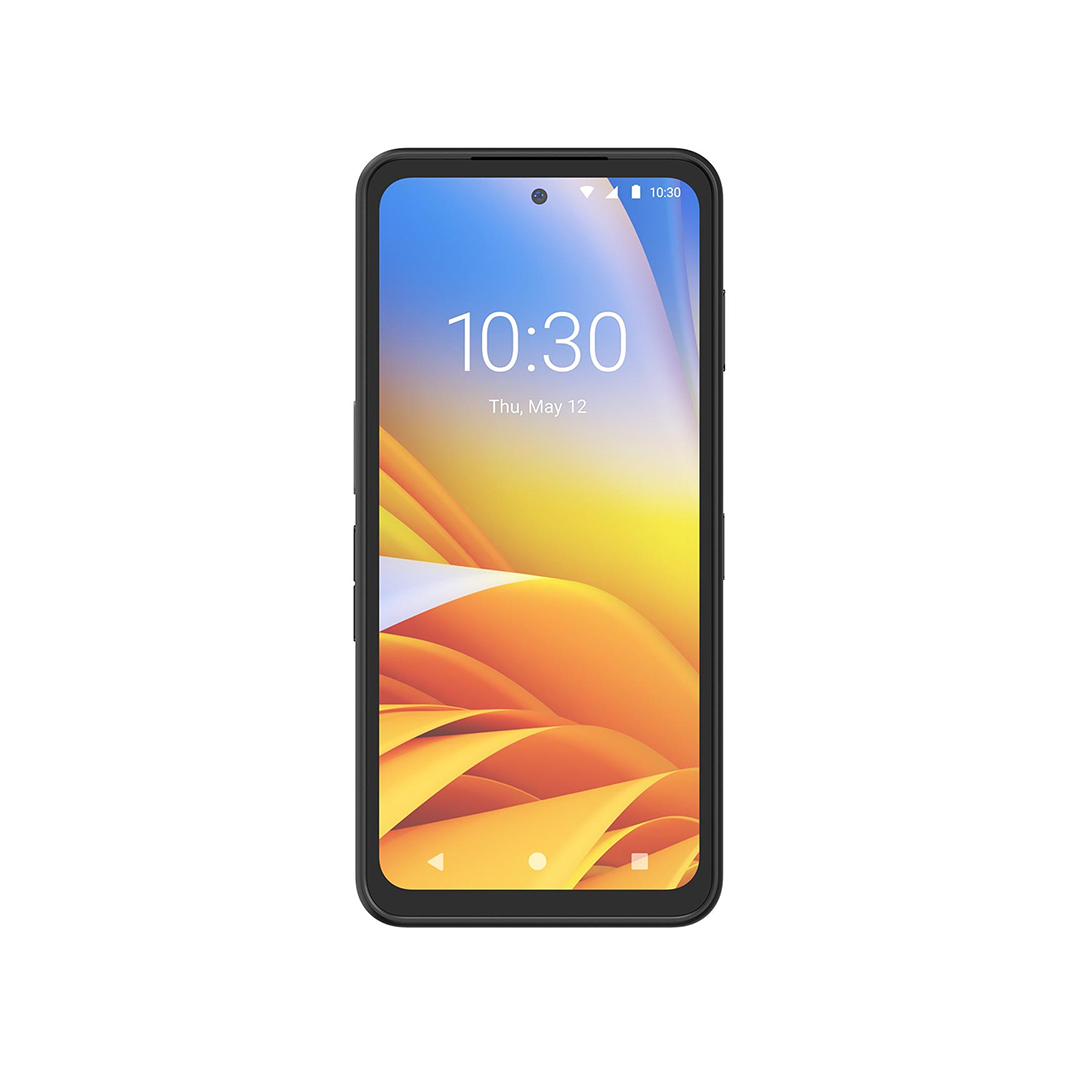

ZEBRA EM45 RFID |
| Dimensions |
6.72 in L x 3.17 in W x .42 in D
(170.65mm L x 80.54mm W x 10.7mm D) |
| Weight |
8.82 oz (250g) (with embedded battery) |
| Display |
6.7 in color Full High Definition+ (2400 x 1080); LED backlight; 450 Nits; dynamic 120Hz refresh rate |
| Touch Panel |
Multi mode capacitive touch with bare or light gloved fingertip input; water droplet rejection, Oleophobic coating |
| Power |
Service replaceable; rechargeable Li-Ion, PowerPrecision for real-time battery metrics; Capacity: 4,750mAh/18.43Wh |
| Expansion Slot |
User-accessible MicroSD card; supports up to 2 TB |
| SIM |
Dual SIM (single Nano SIM and eSIM) |
| Network Connections |
WWAN; Wi-Fi, Bluetooth and NFC |
| Notifications |
Audible tone; vibration Audible tone; vibration |
| Keypad |
On-screen keypad |
| Voice and Audio |
Two microphones with noise cancellation; HAC compliant (North America); Dual Stereo speakers for loudness; High Quality stereophonic speaker phone; Bluetooth wireless headset support; PTT headset (Zebra USB-C) support; HD VoIP, Voice and Multimedia, supporting Super-wideband (SWB), Wideband (WB) and Full band (FB) |
| Buttons |
Volume up/down; Power (fingerprint biometrics). Programmable action buttons: Left - default to scan; Right - default to PTT; Top - default to camera |
| Interface Ports |
USB 3.1 (Bottom Type C) — SuperSpeed (host and client); OTG/host charging mode |
| Performance Characteristics |
|
| CPU |
Qualcomm® 5430 Octa-core, 2.2 GHz |
| Operating System |
Android; for supported Android versions, visit:
www.zebra.com/android-versions |
| Memory |
8 GB DDR5 RAM/128 GB UFS3.1 Flash |
| User Environment |
|
| Operating Temperature |
+32F to +122F (0C to +50C) |
| Storage Temperature |
-40F to +158F (-40C to +70C) |
| Humidity |
5% — 95% non-condensing |
| Drop Specification |
5 ft (1.5m) to tile over concrete across temperature (0C to +50C/+32F to +122F) with protective boot exceeding MIL-STD-810H; Multiple 4 ft (1.2m) to tile over concrete across temperature (0C to +50C/+32F to 122F) exceeding MIL-STD 810H |
| Tumble Specification |
600 1.6 ft (0.5m) tumbles for device with protective case; 300 1.6 ft (0.5m) tumbles for device (1.6 ft/0.5m) |
| Sealing |
IP68 and IP65, with battery per applicable IEC sealing specifications |
| Vibration |
Sine: 4 g’s peak, 5hz to 2khz; Random:0.04 g²/hz, 20hz to 2khz |
| Thermal Shock |
-40F to +158F (-40C to +70C) |
| Electrostatic Discharge (ESD) |
+/-15 kV air discharge, +/-8 kV direct
discharge; +/-8 kV indirect discharge |
| General Certifications |
Google ARCore certified; Android Enterprise Recommended (AER) certified, AT&T/Verizon certified |
| Interactive Sensor Technology (IST) |
|
| Motion Sensor |
3-axis accelerometer with MEMS Gyro |
| Light Sensor |
Automatically adjusts display backlight brightness |
| Proximity Sensor |
Automatically detects when the user places the device against head during a phone call to disable display output and touch input |
| Magnetometer |
eCompass to detect direction |
| Pressure Sensor |
Altitude detection for locating |
| Data Capture |
|
|
Scanning
|
Camera-based scanning, leveraging Zebra’s advanced decoder library for accurate and efficient data capture — complimentary with the device |
| Camera |
Rear: 50 MP, Auto focus, OIS; ƒ/1.9, Video Recording Resolution: UHD 4K (3840x2160) @30fps, Front: 8 MP, ƒ/2.0, Video recording 1080P@30fps |
| NFC |
NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK |
| Built-in RFID |
Short range integrated UHF RFID; 4 ft (1.2m) range, reads 20 tags per second; EU 865-868 MHz and US 902-928 MHz |
| Wireless LAN |
|
|
WLAN Radio
|
IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2x2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz); Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6 |
| Data Rates |
2.4 GHz: 802.11b/g/n/ax — 20 MHz - up to 286.8 Mbps; 5 GHz: 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz - up to 2402 Mbps; 6 GHz: 802.11ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps |
| Operating Channels |
Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth: 20, 40, 80, 160 MHz;
Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency |
| Security and Encryption |
WPA3 Enterprise 192-bit mode (GCMP256) — EAP-TLS; WPA3 Enterprise, AES-CCMP-128 — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Personal (SAE), AES-CCMP-128; WPA/WPA2 Enterprise, TKIP and AES-CCMP-128; WPA/WPA2 Personal (PSK), TKIP and AES-CCMP-128; Enhanced Open (OWE), AES-CCMP-128; WEP 40 bit and 104 bit; WAN device only: EAP-SIM, EAP-AKA, EAP-AKA Prime |
| Certifications |
Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED n;
Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Enhanced Open; WMM (Wi-Fi Multimedia); WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint |
| Fast Roam |
802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC |
| Wireless WAN |
|
| io Frequency Band5 |
North America: 5G FR1: n2/5/7/8/12/13/14/25/26/29/30/38/41/48/66/71/77/78; 4G: B2/4/5/7/8/12/13/14/17/25/26/29/30/38/41/48/66/71; 3G: B2/4/5
Rest of World: 5G FR1: n1/2/3/5/7/8/20/26/28/38/40/41/66/71/77/78; 4G: B1/2/3/4/5/7/8/13/17/18/20/26/28/38/39/40/41/42/43/66/71; 3G: B1/2/4/5/6/8/19; 2G: 850/900/1800/1900
Dual SIM/Dual Standby, VoLTE, Gigabit LTE-A, 5G NR Sub-6 (NSA, SA), LTE/NR Carrier Aggregation, Supports private 5G/LTE; CBRS (available only in the US) |
| GPS |
GPS, GLONASS, Galileo, Beidou, QZSS; Dual-Band GNSS — concurrent L1/G1/E1/B1; (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA |
| Multimedia |
Wi-Fi Multimedia™ (WMM) and WMM-PS; Including TSPEC |
| Wireless PAN |
|
| Bluetooth |
Class 1, Bluetooth v5.3; Classic Bluetooth(BR/EDR) and Bluetooth LE |
