| Specifications |
| PRINTER MODEL |

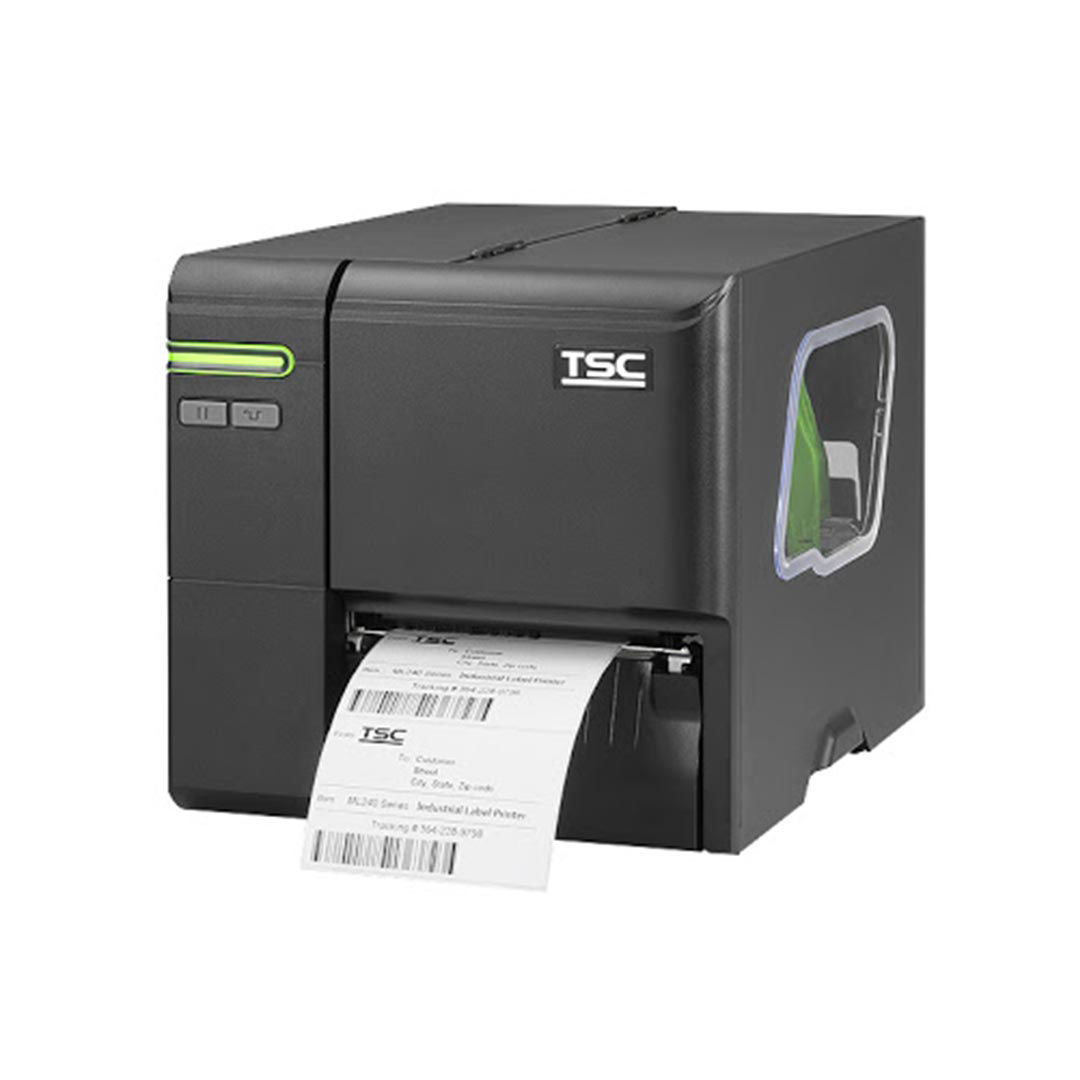

ML240 |
| Resolution |
8 dots/mm (203 DPI) |
| Printing method |
| Max. print speed |
152 mm (6”)/second |
| Max. print width |
108 mm (4.25”) |
| Max. print length |
2,794 mm (110”) |
| Enclosure |
Die-cast print mechanism/Metal cover with large media window |
| Physical dimension |
248 mm (W) x 245 mm (H) x 330 mm (D)
9.76” (W) x 9.65” (H) x 12.99” (D) |
| Weight |
7.6 kg (16.76 lbs) |
| Label roll capacity |
139.7 mm (5.5“) O.D., 1” or 1.5” I.D core |
| Ribbon |
450 m long, max. O.D. 81.3 mm, 1“ core (ink coated outside or inside) |
| Ribbon width |
40 ~ 110 mm (1.6” ~ 4.3”) |
| Processor |
32-bit RISC CPU |
| Memory |
• 8 MB Flash memory
• 16 MB SDRAM |
| Interface |
• USB 2.0
• Internal Bluetooth 4.2 MFi (factory option) |
| Power |
Internal universal switching power supply
• Input: AC 100-240V, 1.5A, 50-60Hz
• Output: DC 24V, 2.5A, 60W |
| Display |
• 1 status indicator |
| Operation switch, button |
• 2 buttons (Pause, Feed) |
| Sensors |
• Gap transmissive sensor (position adjustable)
• Black mark reflective sensor (position adjustable)
• Ribbon end sensor
• Head open sensor |
| Real time clock |
N/A |
| Internal fonts |
• 8 alpha-numeric bitmap fonts
• Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font |
| Bar code |
• 1D bar code
Code 11, Code 39, Code 49, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Standard 2 of 5, Industrial 2 of 5, Interleave 2 of 5,
EAN 8, EAN 13, EAN-14, EAN-128, ITF14, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, PLANET, POSTNET, RSS-Stacked,
GS1 DataBar, China Post, Telepen, LOGMARS
|
• 2D bar code
PDF-417, Micro PDF 417, Maxicode, DataMatrix, QR code, Aztec, TLC 39, RSS |
Font and
barcode rotation |
0, 90, 180, 270 degree |
| Printer language |
TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL) |
| Media type |
Continuous, die-cut, black mark, fan-fold, notched (outside wound) |
| Media width |
20 ~ 118 mm (0.8” ~ 4.7”)
20 ~ 114.3 mm (0.79” ~ 4.5”) for peel or cutter mode |
| Media thickness |
0.06 ~ 0.19 mm (2.36 ~ 7.48 mil) |
| Media core diameter |
25.4 or 38.1 mm (1” or 1.5”) |
| Label length |
5 ~ 2,794 mm (0.2” ~ 110”)
5 ~ 1,016 mm (0.2” ~ 40”) |
| Environment condition |
Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing |
| Safety regulation |
FCC Class A, CE Class A, RCM Class A, cTUVus, TÜV/safety, CCC, BIS, KC, BSMI, EAC, ENERGY STAR® |
| Environmental concern |
Comply with RoHS, REACH, WEEE |
| Accessories |
• Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord |
| Limited warranty |
• Printer: 2 years
• Print head: 25 km (1 million inches) or 12 months which comes first
• Platen: 50 km (2 million inches) or 12 months which comes first |
| Factory options |
• Internal Bluetooth 4.2 MFi |
