| Technical specifications |

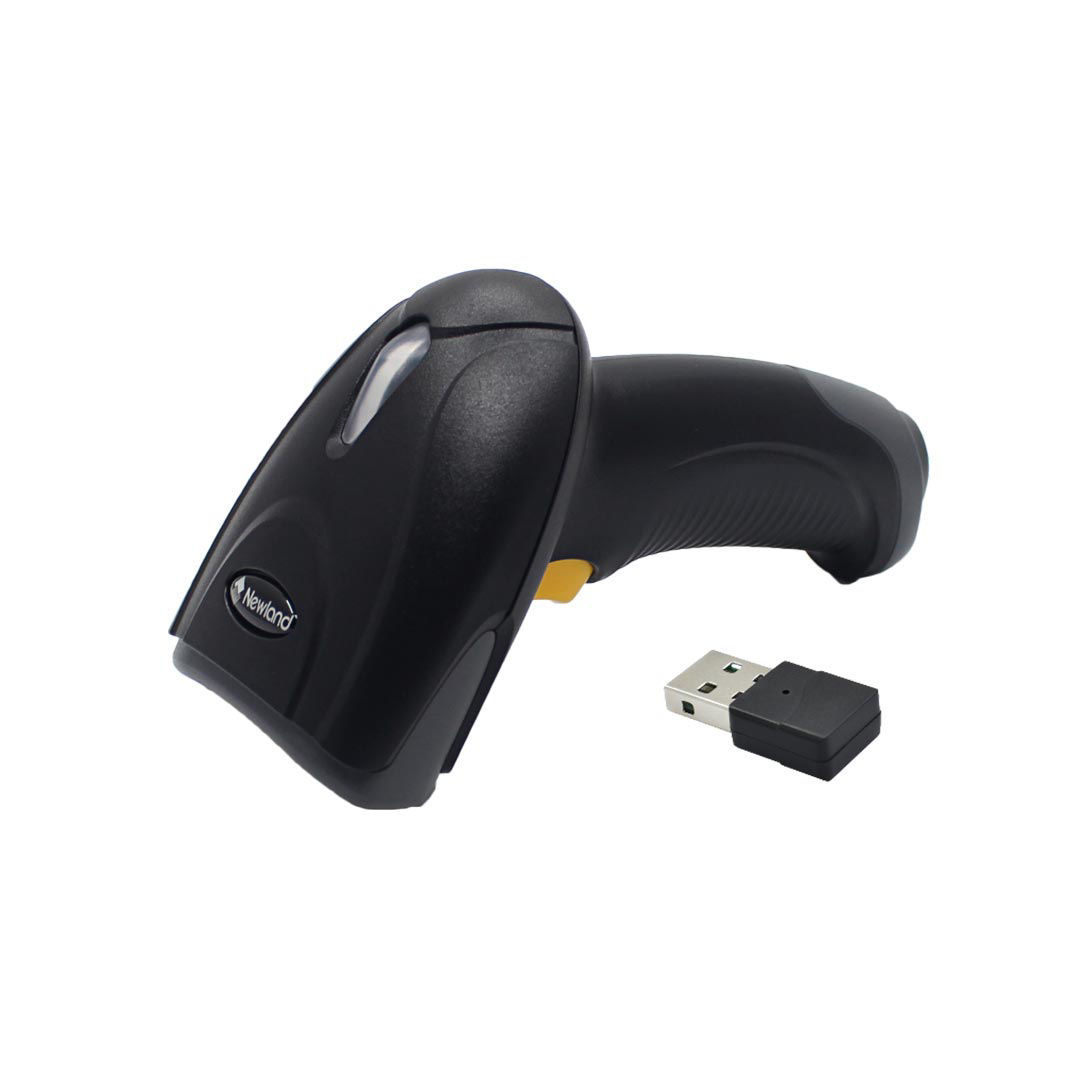

NEWLAND NLS-HR2081-BT |
| Performance |
Image Sensor |
|
640×480 CMOS |
|
Illumination
Aiming
|
|
White LED
Red LED (625nm)
|
| Symbologies |
2D |
PDF417, Micro PDF 417, QR Code, Data Matrix, Micro QR Code Aztec, Data Matrix |
| 1D |
Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, China Post 25, MSI-Plessey, Plessey, GS1 Databar(RSS) |
| OCR |
Passport OCR |
| Resolution |
|
≥3mil |
| Typical Depth of Field |
EAN-13
QR Code
Code 39
PDF 417
Data Matrix
|
45mm-260mm (13mil)
30mm-170mm (15mil)
45mm-115mm (5mil)
50mm-120mm (6.67mil)
35mm-125mm (10mil)
|
| Scan Angle |
Pitch |
±60° |
| Roll |
360° |
| Skew |
±60° |
| Field of View |
|
Horizontal 42°, Vertical 28° |
| Min. Symbol Contrast |
|
20% |
| Wireless |
Communication Mode |
|
Synchronous mode, automatic batch mode and manual batch mode |
| Radio Technology |
|
Bluetooth 5.0/2.4G |
|
Communication Distance
(direct line of sight in open air)
|
With Bluetooth
With 2.4G
|
≥50m
≥30m
|
| Memory Capacity |
|
≥15000 pieces Code 128 (20 byte of each Code 128) |
| Battery |
|
2200 mAh lithium-ion battery |
| Expected Charge Time |
|
≤5.5 hours (with power adapter) |
| Expected Battery Life |
|
≥12 hours of continuous operation (scan once per 6 seconds) |
| Physical |
Interfaces |
|
USB |
| Dimensions (L×W×H) |
|
145×101×68mm |
| Weight |
|
167g |
| Notification |
|
Beep, LED indicator, vibration |
| Charge Voltage |
|
5VDC±5% |
| Environmental |
Operating Temperature |
|
-20°C to 60°C (-4°F to 140°F) |
| Storage Temperature |
|
-40°C to 70°C (-40°F to 158°F) |
| Charge Temperature |
|
0°C to 45°C (32°F to 113°F) |
| Humidity |
|
5% ~ 95% (non-condensing) |
| ESD |
|
±15 KV (air discharge); ±8 KV (direct discharge) |
| Drop |
|
1.2m |
| Sealing |
|
IP42 |
| Certifications |
|
|
FCC Part15 Class B, CE EMC Class B, RoHS, IEC62471, BIS |
