| Specification |

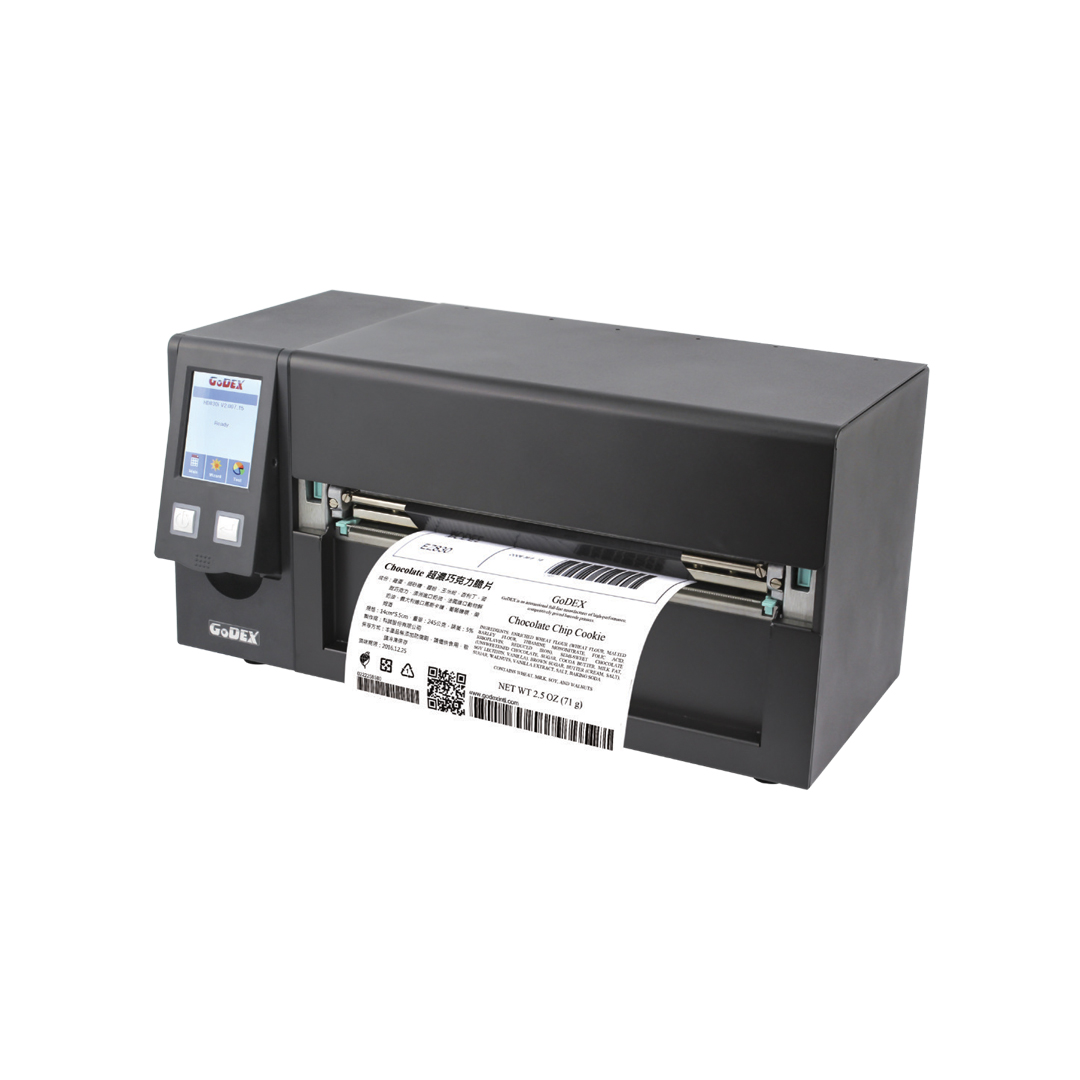

HD830i Printer |
| Model |
HD830i |
| Print Method |
Thermal Transfer / Direct Thermal |
| Resolution |
300 dpi (12 dot/mm) |
| Print Speed |
4 ips (102 mm/s) |
| Print Width |
8.64” (219.5mm) |
| Print Length |
Min. 1” (25.4 mm)** ; Max . 40” ( 1,016 mm) |
| Processor |
32 Bit RISC CPU |
| Memory |
128 MB Flash (60 MB for user storage) ; 32 MB SDRAM |
| Sensor Type |
Adjustable reflective sensor and transmissive sensor, central aligned |
| Media |
Type: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width : Tear : Min. 4” (101.6 mm ) – Max. 10” (255 mm )
Cutter : Max. 9.05” (230 mm)
Thickness : Min. 0.002” (0.05 mm) – Max. 0.01” (0.25 mm)
Label roll diameter : External Label stand : 10” Max. (Standard Accessories included)
Core diameter : Min. 1.5 " (38.1 mm)-Max. 3” (76.2 mm) |
| Ribbon |
Types : Wax, wax/resin, resin
Length : Max.981’ (300 m)
Width : Min. 4.3” (110 mm) – Max. 8.66” (220 mm)
Ribbon roll diameter : 2.67” (68 mm) Max.
Core diameter : 1” (25.4 mm) |
| Printer Language |
EZPL, GEPL, GZPL, GDPL auto switch |
| Software |
Label design software: GoLabel II (for EZPL only) (Windows)
Driver: Windows 7, Windows 8 & 8.1, Windows 10, Window11, Windows Server 2008 R2, 2012,2012 R2, 2016, 2019, 2022, MAC, Linux
SDK: Win CE, .NET, Windows 7, Windows 8 & 8.1, Windows 10, Windows 11, Android, Mac, iOS |
| Resident Fonts |
Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF Fonts: TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Download Fonts |
Bitmap fonts: 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable
Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese(S-JIS), Korean (KS-X1001)
0°, 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
TTF fonts: TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Barcodes |
1-D Bar codes:
China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8/EAN-13 (with 2 & 5digits
extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2-of-5 with
Shipping Bearer Bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Standard 2 of 5,
Telepen, Matrix 2 of5, UPC-A/UPC-E (with 2 or 5 digit extension), UCC/EAN-128 K-Mart and Random Weight
2-D Bar codes:
Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39, GS1
Composite |
| Code Pages |
Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869
Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8 - UTF16BE-UTF16LE |
| Graphics |
Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces |
USB 2.0 (B-Type)
Serial port: RS-232 (DB-9)
IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45)
USB Host (A-Type) |
| RTC |
Standard |
| Control Panel |
Backlight 3.2” touch screen LCD
1 Power on/standby button with dual colour LED backlight
1 FEED / PAUSE / CANCEL button with dual colour LED : Ready (Green); Error (Red)
1 Calibration button at rear panel |
| Power |
Auto Switching 100-240VAC, 50-60Hz. |
| Environment |
Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 140°F (-20°C to 60°C) |
| Humidity |
Operation: 20-85%, non-condensing.
Storage: 10-90%, non-condensing. |
| Agency Approvals |
CE (EMC)、FCC Class B、CB、UL、cUL、CCC、UKCA |
| Dimension |
Length 221 mm
Height 224 mm
Width 431 mm |
| Weight |
11.7 Kg, excluding consumables |
| Options |
Cutter (Dealer Install)
Parallel port adaptor module (Centronic female 36-pin)(Dealer Install)
BT (Dealer Installer)
Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install)
Sheet paper module (Factory Install) |
