| Specifications |
| Model Name |

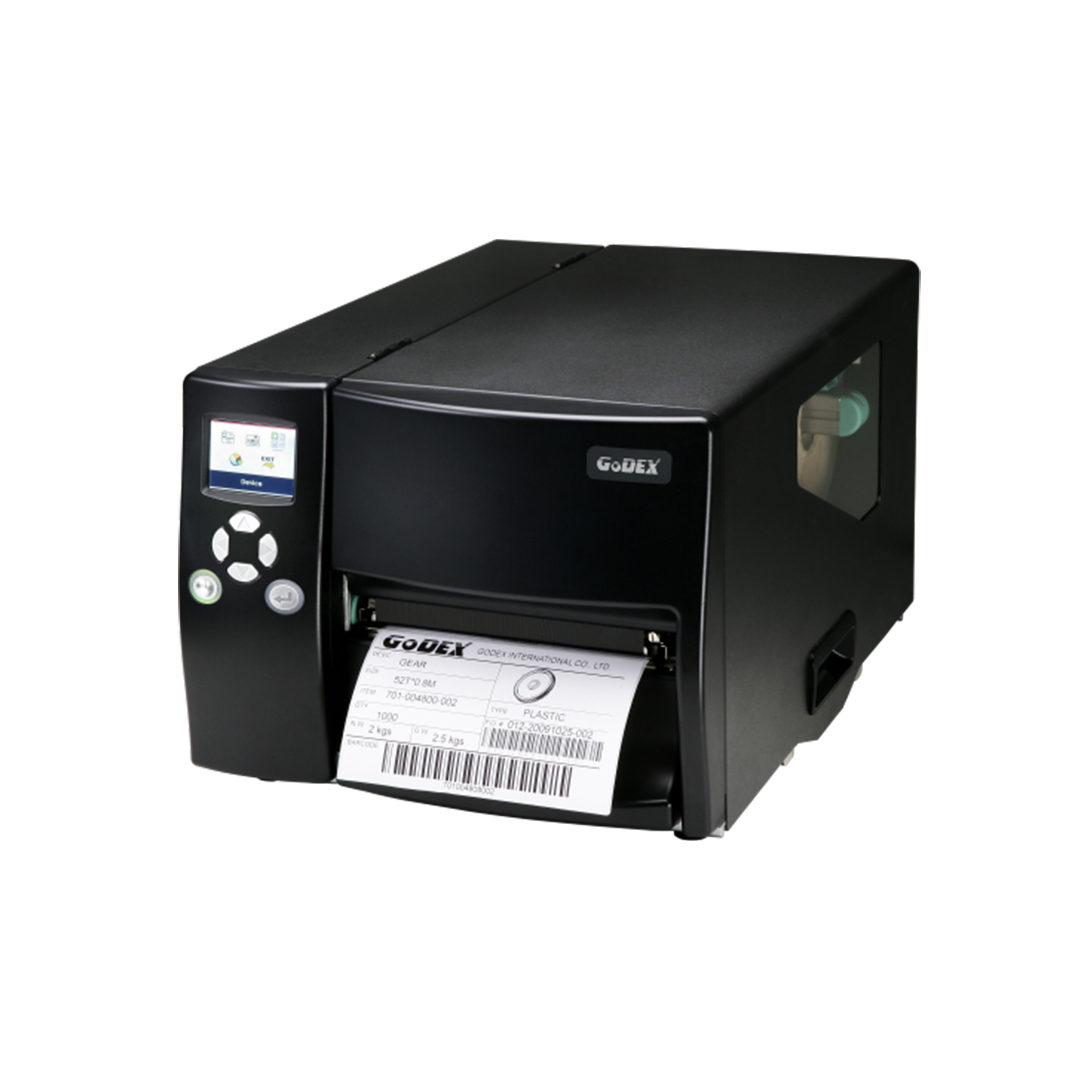

EZ6250i |
EZ6350i |
| Print Method |
|
Thermal Transfer / Direct Thermal |
| Resolution |
|
203 dpi (8 dot/mm) |
300 dpi (12 dot/mm) |
| Print Speed |
|
7 IPS (177 mm/s) |
5 IPS (127 mm/s) |
| Print Width |
|
6.61” (168 mm) |
| Print Length |
|
Min. 0.16” (4 mm)** ; Max. 70” (1778 mm) |
Min. 0.16” (4 mm)** ; Max. 30” (762 mm) |
| Processor |
|
32-bit RISC CPU |
| Memory |
Flash |
8 MB Flash (4 MB for user storage) |
| |
SDRAM |
32 MB |
| Sensor Type |
|
Adjustable reflective sensor and transmissive sensor, left aligned |
| Media |
Type |
Continuous form, gap labels, black mark sensing, and punched hole; label length
set by auto sensing or programming |
| Width |
Tear : 2” (50.8 mm) Min. - 7” (178 mm) Max.
Cutter : 6.5” (165 mm) Max.)
Peeler with Rewind : 7” (178 mm) Max. |
| Thickness |
0.003” (0.076 mm) Min. - 0.01” (0.25 mm) Max
Label roll diameter Max. |
| Label roll diameter |
Max. 8” (203.2 mm) with 3" (76.2 mm) core / Max. 6” (152.4 mm) with 1.5" (38.1 mm)
core |
| |
Core diameter |
1.5” (38.1 mm) - 3” (76.2 mm) |
| Ribbon |
Types |
Wax, wax/resin, resin |
| |
Length |
Max. 1471’ (450 m) |
| |
Width |
Min 2.36” – Max. 6.85” (60 mm - 174 mm) |
| |
Ribbon roll diameter |
2.99” (76 mm) Max |
| |
Core diameter |
1” (25.4 mm) |
| Printer Language |
|
EZPL, GEPL, GZPL, GDPL auto switch |
| Software |
Label design software |
GoLabel (for EZPL only) |
| |
Driver |
Vista, Windows 7, Windows 8 & 8.1, Windows 10, Windows Server 2008 R2, 2012, 2012 R2,
2016, 2019, MAC, Linux |
| |
SDK |
Win CE, .NET, Windows Vista, Windows 7, Windows 8 & 8.1, Windows 10, Android, Mac,
iOS |
| Resident Fonts |
Bitmap Fonts |
6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions |
| |
TTF Fonts |
TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Barcodes |
1-D Bar Codes |
China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset
A, B, C), EAN-8/EAN-13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code,
GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2-of-5 with
Shipping Bearer Bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey,
Planet 11 & 13 digit, RPS 128, Standard 2 of 5, Telepen, Matrix 2 of 5, UPC-A/UPC-E (with
2 or 5 digit extension), UCC/EAN-128 K-Mart and Random Weight |
| |
2-D Bar Codes |
Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro
QR code, PDF417,QR code, TLC 39, GS1 Composite |
| Code Pages |
|
Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869,
Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8-UTF16BE-UTF16LE |
| Graphics |
|
Resident graphic file types are BMP and PCX, other graphic formats are
downloadable from the software |
| Interfaces |
|
ㆍ USB 2.0 (B-Type)
ㆍ IEE 802.3 10/100 Base-Tx Ethernet port (RJ-45)
ㆍ Serial port: RS-232 (DB-9)
ㆍ USB Host (A-Type)
|
| Control Panel |
|
ㆍColor IFT LCD with navigation button
ㆍCalibration button
ㆍPower on/off button
|
| RTC |
|
Standard |
| Power |
|
Auto Switching 100-240V AC, 50-60Hz |
| Environment |
Operation temperature |
41°F to 104°F (5°C to 40°C) |
| |
Storage temperature |
-4°F to 140°F (-20°C to 60°C) |
| Humidity |
Operation |
20-85%, non-condensing |
| |
Storage |
10-90%, non-condensing |
| Agency Approvals |
|
CE (EMC) - FCC Class B - CB - UL - c - L - CCC |
| Dimension |
|
Length : 20.31”(516 mm) Height : 11.22”(285 mm) Width : 13.58”(345 mm)
Weight : 36.8 lbs (16.7Kg), excluding consumables |
| Options |
|
Cutter Module
Internal Rewinder with Label Dispenser
Parallel port adopter module (Centronic female 36-pin)
Applicator Interface (1 input, 3 outputs, power 500mA @ 5V)
External label rewinder |
