| Specification |

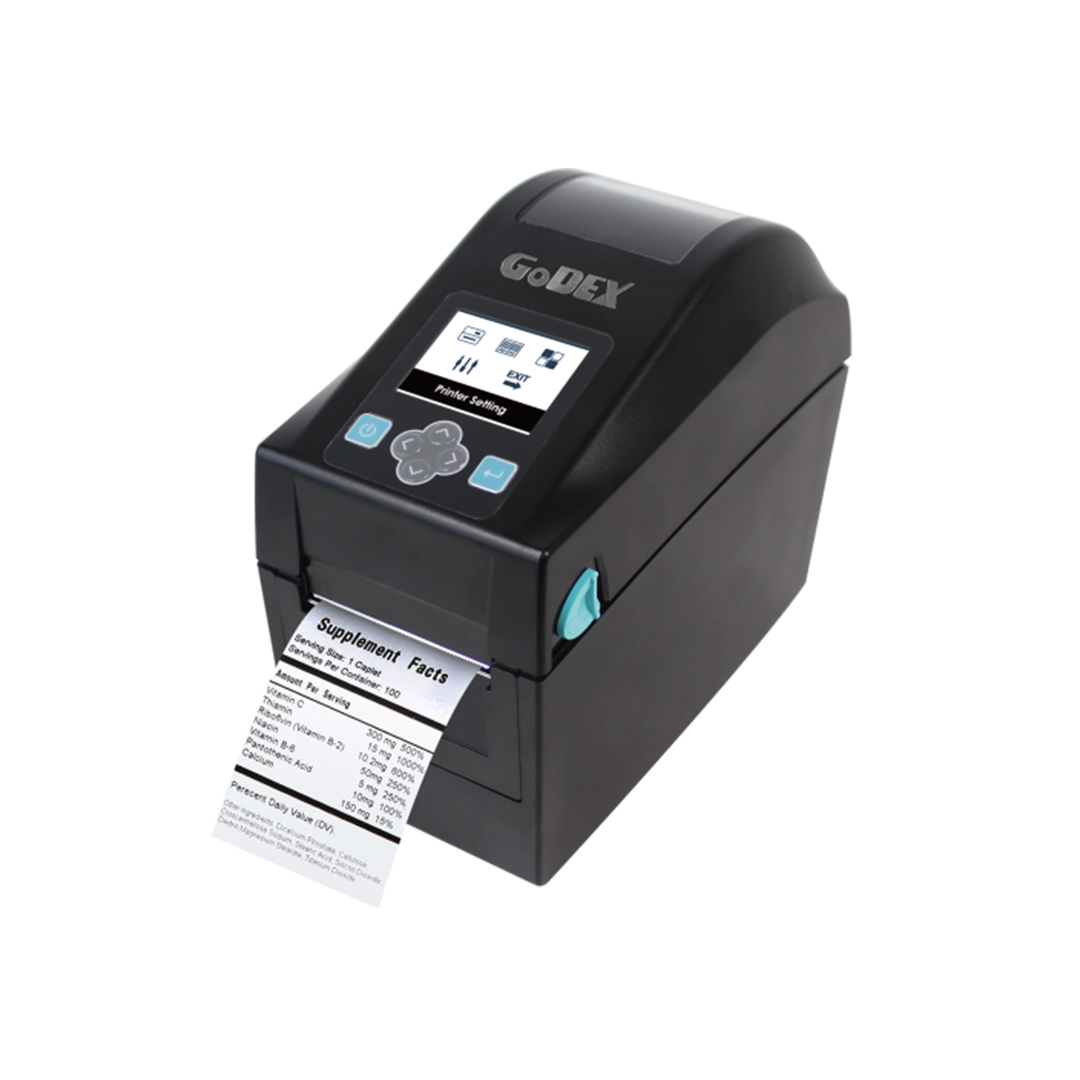

GODEX DT200i+ |
| Print Method |
Direct Thermal |
| Resolution |
203 dpi (8 dots/mm) |
| Print Speed |
7 IPS (178 mm/s) |
| Print Width |
2.12” (54 mm) |
| Print Length |
Min. 0.16” (4 mm)**;
Max. 68” (1727 mm) |
| Processor |
32 Bit RISC CPU |
| Memory |
128 MB Flash (60 MB for user storage) ; 32 MB SDRAM |
| Sensor Type |
Adjustable reflective sensor.
Fixed transmissive sensor, central aligned. |
| Media |
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing orprogramming
Width: Min. 0.6” (15 mm) – Max. 2.36” (60 mm)
Thickness: 0.003” (0.08 mm) Min. - 0.008” (0.20 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1” (25.4 mm), 1.5” (38.1 mm) |
| Printer Language |
EZPL, GEPL, GZPL, GDPL auto switch |
| Software |
Label design software: GoLabel (for EZPL only)
Driver: Vista, Windows 7, Windows 8 & 8.1, Windows 10, Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, MAC, Linux
SDK: Win CE, .NET, Windows Vista, Windows 7, Windows 8 & 8.1, Windows 10, Android, Mac, iOS |
| Resident Fonts |
Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF Fonts: TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Download Fonts |
Bitmap fonts: 0°, 90°, 180°, 270° rotatable, single characters 0°, 90°, 180°, 270° rotatable
Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese(S-JIS), Korean (KS-X1001)
0°, 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
TTF fonts: TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Barcodes |
1-D Bar codes:
China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8/EAN-13 (with 2 & 5digits
extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2-of-5 with
Shipping Bearer Bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Standard 2 of 5,
Telepen, Matrix 2 of5, UPC-A/UPC-E (with 2 or 5 digit extension), UCC/EAN-128 K-Mart and Random Weight
2-D Bar codes:
Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39, GS1
Composite |
| Code Pages |
Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869
Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8UTF16BEUTF16LE |
| Graphics |
Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces |
USB 2.0
Serial port: RS-232 (DB-9)
Ethernet 10/100 Mbps
USB Host (A-Type) |
| RTC |
Standard |
| Control Panel |
Color TFT LCD with navigation button
Power on/off button
Calibration button
Control key: FEED |
| Power |
Auto Switching 100-240VAC, 50-60Hz |
| Environment |
Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C) |
| Humidity |
Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing. |
| Agency Approvals |
CE (EMC)、FCC Class B、CB、UL、cUL 、CCC、BSMI、UKCA |
| Dimension |
Length 207 mm (8.15”)
Height 171 mm (6.73”)
Width 112 mm (4.41”) |
| Weight |
1.05 kg(2.31lb), exclusive consumables |
| Options |
Cutter (Dealer Install)
Label Dispenser (Dealer Install)
External label unwind Stand
External label rewinder
BT (Dealer Install)
Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install) |
