| SPECIFICATIONS |

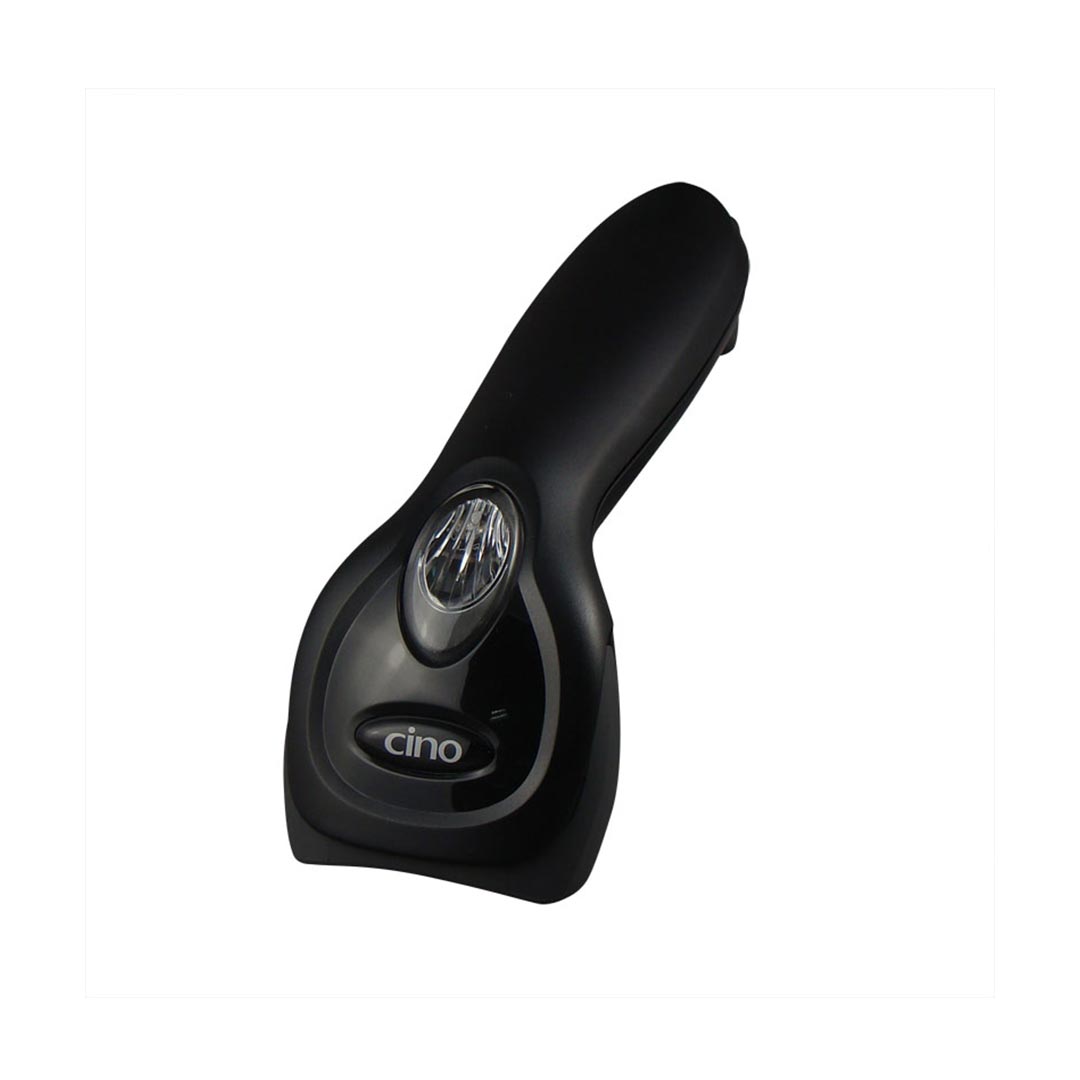

CINO F560 |
| Performance Characteristic |
|
| Optical System |
High performance linear imaging engine |
| Print Contrast |
20% minimum reflective difference |
| Light Source |
630nm LED |
| Minimum Resolution |
3 mil (Code 39, PCS 0.9) |
| Reading Range *1 |
13 mil (0.33mm) UPC/EAN up to 13”
20 mil (0.5mm) Code 39 up to 18” |
| Scan Rate |
Dynamic scanning rate up to 500 scans per second |
| Reading Direction |
Bi-directional (forward and backward) |
| Pitch / Skew / Tilt |
±65˚ / ± 65˚ / ± 55˚ |
| Host Interfaces |
USB HID (USB Keyboard)
USB VCOM (USB COM port emulation)
Standard RS232 |
| Configuration Setup |
Command barcodes
iCode
FuzzyScan PowerTool |
| Data Editing |
DataWizard Premium |
| Physical Characteristics |
|
| Dimensions |
165.0 mm (L) x 64.7 mm (W) x 38.7 mm (D)
6.50 in. (L) x 2.55 in. (W) x 1.52 in. (D) |
| Weight |
106g (cable excluded) |
| Color |
Light Gray or Black |
| User Interfaces |
Blue LED indications
Programmable beeper
Optional vibrator |
| Operating Voltage |
5VDC ± 10% |
| Operating Current |
Operating : Typical 170 mA @5VDC
Standby : Typical 75 mA @5VDC |
| Supported Symbologies |
|
| 1D Linear Codes |
Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic
Code 128, GS1-128, Codabar, Code 11, Code 93
Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5
German Postal Code, China Postal Code, IATA
UPC/EAN/JAN, UPC/EAN/JAN with Addendum
Telepen, MSI/Plessey & UK/Plessey
GS1 DataBar (formerly RSS) Linear & Linear Stacked |
| Linear-stacked |
PDF417, Micro PDF417, Codablock F, Composite |
| User Environment |
|
| Drop Specifications |
Withstand multiple 1.6m/5.2ft. drops to concrete |
| Environmental Sealing |
IP41 |
| Operating Temperature |
-10˚C to 50˚C (14˚F to 122˚F) |
| Storage Temperature |
-40˚C to 70˚C (-40˚F to 158˚F) |
| Humidity |
5% to 95% relative humidity, non-condensing |
| Ambient Light Immunity |
0 ~ 80,000 lux |
| ESD Protection |
Functional after 15KV discharge |
| Safety & Regulatory |
|
| EMC |
CE, FCC, BSMI, RCM, KC, VCCI |
| Safety *2 |
LED Eye Safety IEC62471, Exempt Group |
| Environmental |
Compliant with RoHS directive |
| Accessories |
|
| Interface Cables |
RS232 Serial Cable
USB Cable
USB Power Supply Cable |
| Others |
US100 SmartStand
US50 Hand-free Stand
Universal Holder |
